- - 70.L 3 S ELE C TI O N CO M PONENTS 2 3 1 5 5 1 3 1 4 1 0 1 1 1 2 4 3 0 3 1 3 5 1 7 3 2 1 8 3 3 3 4 2 7 2 8 2 9 2 2 2 3 2 4 2 5 2 6 1 6 6 1 8 7 9 1 9 2 1 2 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3508-721-0A0 NOZZLE ASM. 101CVS 3
2 E3511-721-000 NOZZLE INNER 101 (1)
3 E3519-721-000 NOZZLE INNER PIN (1)
4 E3528-721-000 NOZZLE SLIDER 101CVS (1)
5 E3083-700-000 NOZZLE SPRING 1 (1)
6 E3076-700-000 NOZZLE INNER CAP (1)
7 E3520-721-000 DUMPER SCREW (1)
8 E3509-721-0A0 NOZZLE ASM. 102CVS 3
9 E3511-721-000 NOZZLE INNER 101 (1)
10 E3519-721-000 NOZZLE INNER PIN (1)
11 E3529-721-000 NOZZLE SLIDER 102CVS (1)
12 E3083-700-000 NOZZLE SPRING 1 (1)
13 E3076-700-000 NOZZLE INNER CAP (1)
14 E3520-721-000 DUMPER SCREW (1)
15 E3510-721-0A0 NOZZLE ASM. 103CVS 1
16 E3514-721-000 NOZZLE INNER 104 (1)
17 E3519-721-000 NOZZLE INNER PIN (1)
18 E3530-721-000 NOZZLE SLIDER 103CVS (1)
19 E3544-721-000 NOZZLE SPRING 104 (1)
- -
70.L3 SELECTION COMPONENTS
2
3
1 5
5
1 3 1 4
1 0
1 1
1 2
4
3 0
3 1
3 5
1 7
3 2
1 8
3 3 3 4
2 7
2 8
2 9
2 2
2 3
2 4
2 5
2 6
1 6
6
1
8
7
9
1 9
2 1
2 0
- -

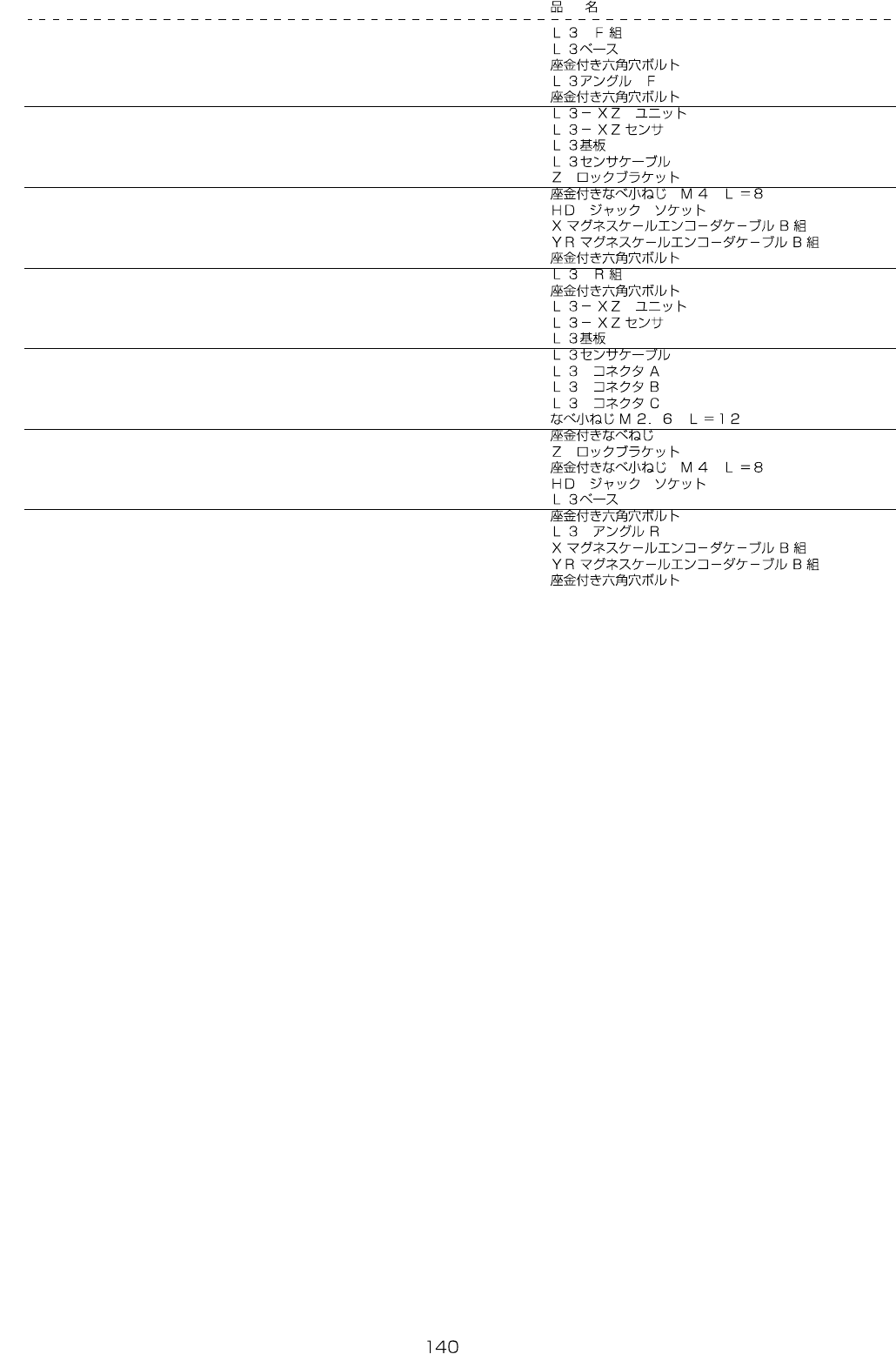

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3690-725-AA0 L3 F ASM. 1
2 E3691-721-000 L3 BASE (1)
3 SL-6062092-TN SCREW M6 L=20 (2)
4 E3693-725-000 L3 ANGLE F (1)
5 SL-6042092-TN SCREW M4 L=20 (2)
6 E9710-721-000 L3-XZ UNIT (1)
7 E9711-721-000 L3-XZ SENSOR (1)
8 E9712-721-000 L3 CONTROLLER BOARD (1)
9 E9713-721-000 L3 SENSOR CABLE (1)
10 E5001-721-000 Z LOCK BRACKET (1)
11 SL-4040891-SC SCREW M4 L=8 (1)
12 EA-9635B00-00 SOCKET (6)
13 E9291-725-BA0 X MAGNET SCALE CABLE B ASM. (1)
14 E9293-725-BA0 YR MAGNET SCALE CABLE B ASM. (1)
15 SL-6041092-TN SCREW (2)
16 E3690-725-BA0 L3 R ASM. 1
17 SL-6042092-TN SCREW M4 L=20 (2)
18 E9710-721-000 L3-XZ UNIT (1)
19 E9711-721-000 L3-XZ SENSOR (1)
20 E9712-721-000 L3 CONTROLLER BOARD (1)
21 E9713-721-000 L3 SENSOR CABLE (1)
22 E3696-721-000 L3 CONNECTOR A (1)
23 E3697-721-000 L3 CONNECTOR B (1)
24 E3698-721-000 L3 CONNECTOR C (1)
25 SM-4861201-SC SCREW M2.6 L=12 (2)
26 SL-4861081-SC SCREW M2.6X10 (2)
27 E5001-721-000 Z LOCK BRACKET (1)
28 SL-4040891-SC SCREW M4 L=8 (1)
29 EA-9635B00-00 SOCKET (6)
30 E3691-721-000 L3 BASE (1)
31 SL-6062092-TN SCREW M6 L=20 (2)
32 E3694-721-000 L3 ANGLE R (1)
33 E9291-725-BA0 X MAGNET SCALE CABLE B ASM. (1)
34 E9293-725-BA0 YR MAGNET SCALE CABLE B ASM. (1)
35 SL-6041092-TN SCREW (2)
