- - 78.T ROLLE Y CHANGER TABLE MECHA N ISM R COM P ONEN TS ( 2) 3 4 6 7 1 0 9 3 4 1 3 1 2 1 1 1 6 1 6 2 0 1 8 2 1 1 9 1 7 2 2 2 0 2 2 1 7 2 4 2 4 1 8 2 1 1 9 3 1 2 9 2 9 3 0 2 7 1 4 8 1 5 3 3 2 5 2 5 3 2 2 6 2 8 2 3 3 …
- -

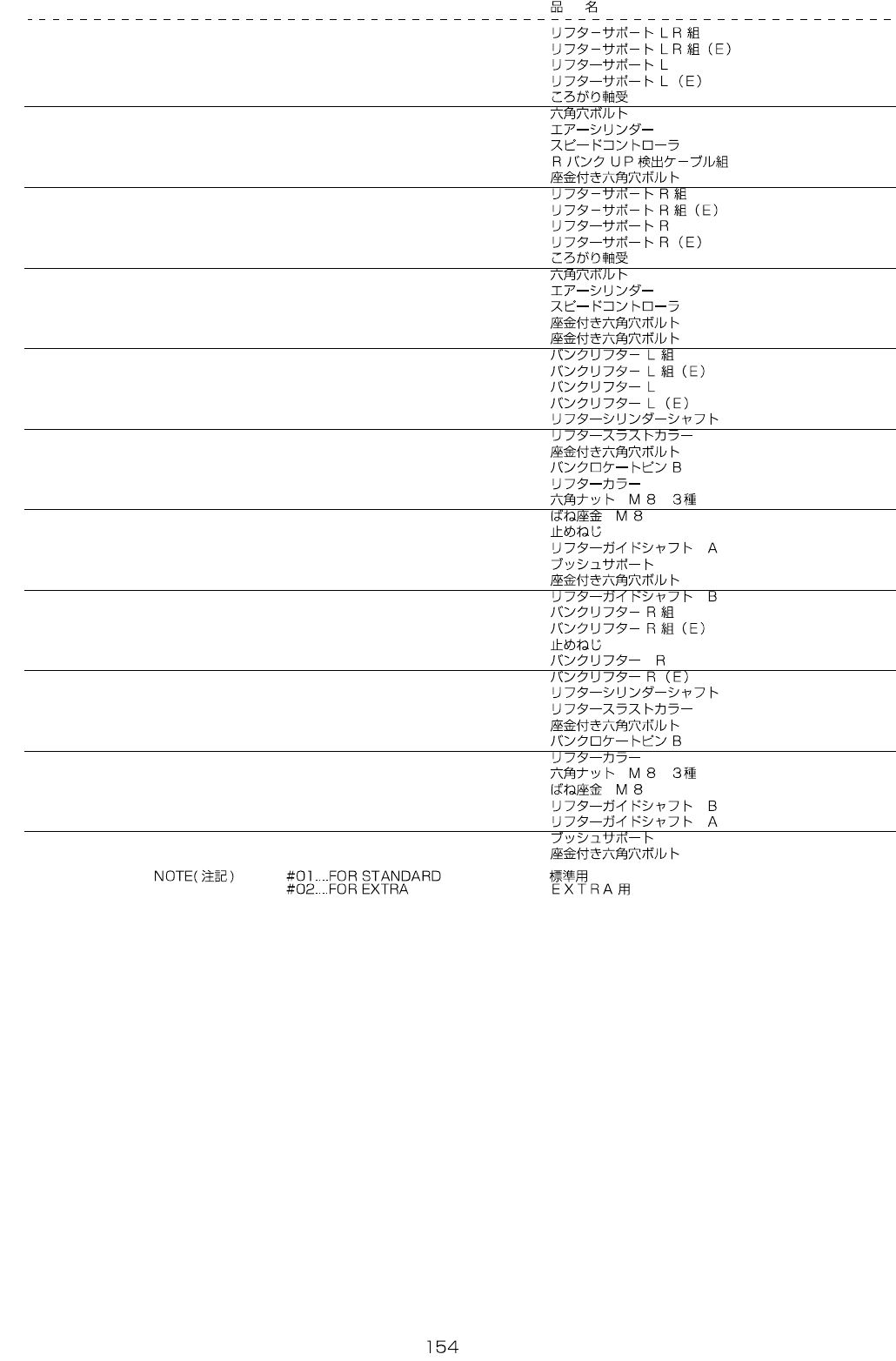

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2751-725-AA0 LIFTER SUPPORT LR ASM. 1
2
#02
E2734-725-0A0 LIFTER SUPPORT LR ASM.(E) 1
3
#01
E2751-721-000 LIFTER SUPPORT L (1)
4
#02
E2734-725-000 LIFTER SUPPORT L(E) (1)
5 SB-8160002-00 BEARING (2)
6 SM-6041002-TN BOLT (8)
7 PA-5007502-00 AIR CYLINDER (1)
8 PC-0152030-00 SPEED CONTROLLER (2)
9 E9558-725-0A0 R BANK UP DETECTOR CABLE ASM. (1)
10 SL-6083092-TN SCREW (4)
11
#01
E2752-721-0A0 LIFTER SUPPORT R ASM. 1
12
#02
E2735-725-0A0 LIFTER SUPPORT R ASM.(E) 1
13
#01
E2752-721-000 LIFTER SUPPORT R (1)
14
#02
E2735-725-000 LIFTER SUPPORT R(E) (1)
15 SB-8160002-00 BEARING (2)
16 SM-6041002-TN BOLT (8)
17 PA-5007501-00 AIR CYLINDER (1)
18 PC-0152030-00 SPEED CONTROLLER (2)
19 SL-6083092-TN SCREW (4)
20 SL-6082592-TN BOLT 4
21
#01
E2754-721-0A0 BANK LIFTER L ASM. 1
22
#02
E2736-725-0A0 BANK LIFTER L ASM.(E) 1
23
#01
E2754-721-000 BANK LIFTER L (1)
24
#02
E2736-725-000 BANK LIFTER L(E) (1)
25 E2756-721-000 LIFTER CYLINDER SHAFT (1)
26 E2757-721-000 LIFTER THRUST COLLER (1)
27 SL-6082092-TN BOLT (1)
28 E2610-721-000 BANK LOCATE PIN B (1)
29 E2758-721-000 LIFTER COLLAR (1)
30 NM-6080003-SC NUT M8 (1)
31 WS-0820002-KN SPRING WASHER M8 (1)
32 SM-8060552-TP SCREW M6 L=5 (1)
33 E2759-721-000 LIFTER GUIDE SHAFT A (1)
34 E2761-721-000 BUSH SUPPORT (1)
35 SL-6062542-TN SCREW (2)
36 E2760-721-000 LIFTER GUIDE SHAFT B (1)
37
#01
E2755-721-0A0 BANK LIFTER R ASM. 1
38
#02
E2737-725-0A0 BANK LIFTER R 1
39 SM-8060552-TP SCREW M6 L=5 (1)
40
#01
E2755-721-000 BANK LIFTER R (1)
41
#02
E2737-725-000 BANK LIFTER R(E) (1)
42 E2756-721-000 LIFTER CYLINDER SHAFT (1)
43 E2757-721-000 LIFTER THRUST COLLER (1)
44 SL-6082092-TN BOLT (1)
45 E2610-721-000 BANK LOCATE PIN B (1)
46 E2758-721-000 LIFTER COLLAR (1)
47 NM-6080003-SC NUT M8 (1)
48 WS-0820002-KN SPRING WASHER M8 (1)
49 E2760-721-000 LIFTER GUIDE SHAFT B (1)
50 E2759-721-000 LIFTER GUIDE SHAFT A (1)
51 E2761-721-000 BUSH SUPPORT (1)
52 SL-6062542-TN SCREW (2)
- -

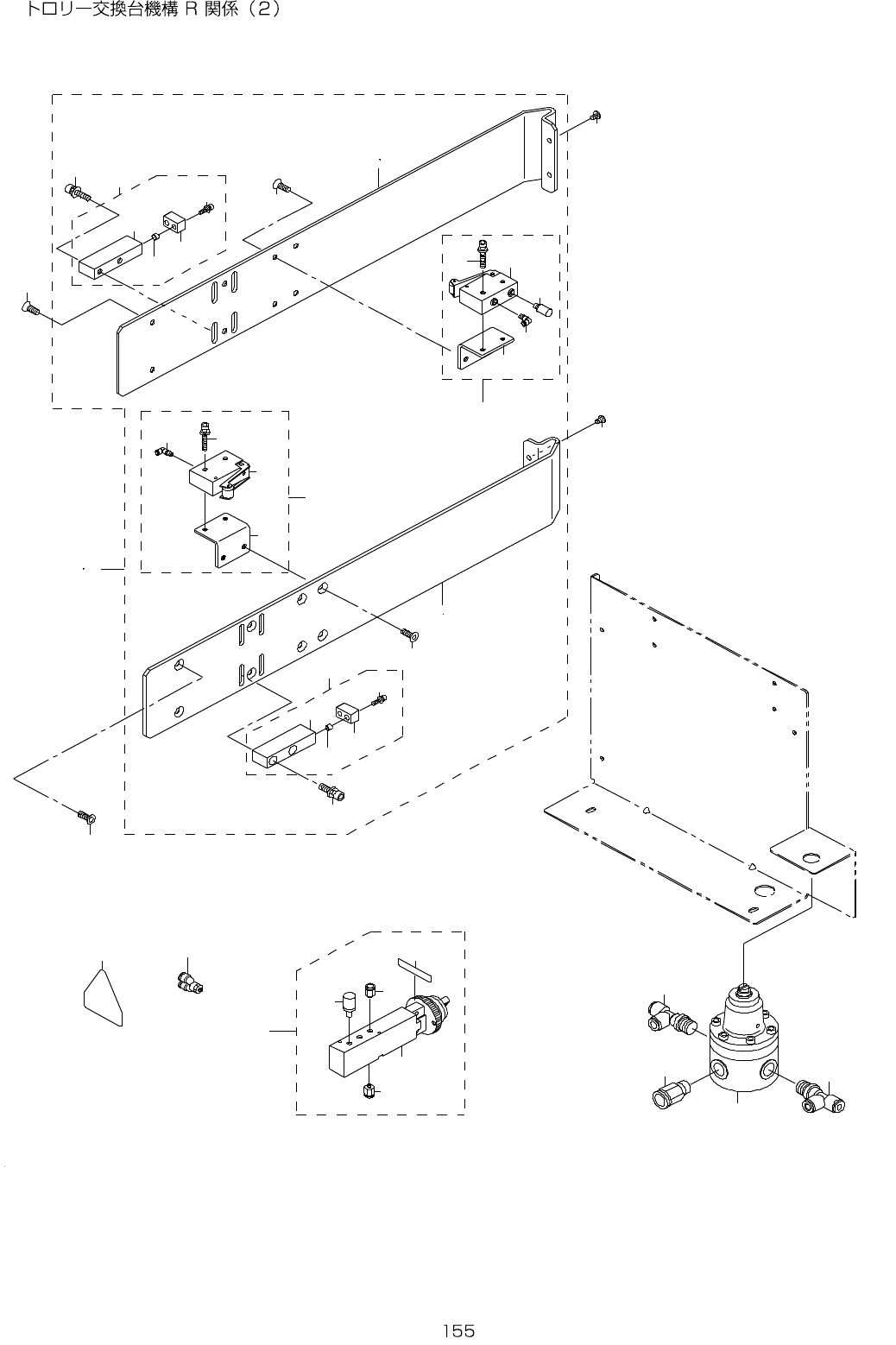

78.TROLLEY CHANGER TABLE MECHANISM R COMPONENTS (2)
3 4
6
7
1 0
9
3 4
1 3
1 2
1 1
1 6
1 6
2 0
1 8
2 1
1 9
1 7
2 2
2 0
2 2
1 7
2 4
2 4
1 8
2 1
1 9
3 1
2 9
2 9
3 0
2 7
1 4
8
1 5
3 3
2 5
2 5
3 2
2 6
2 8
2 3
3 4
5
1 2
2 3
- -

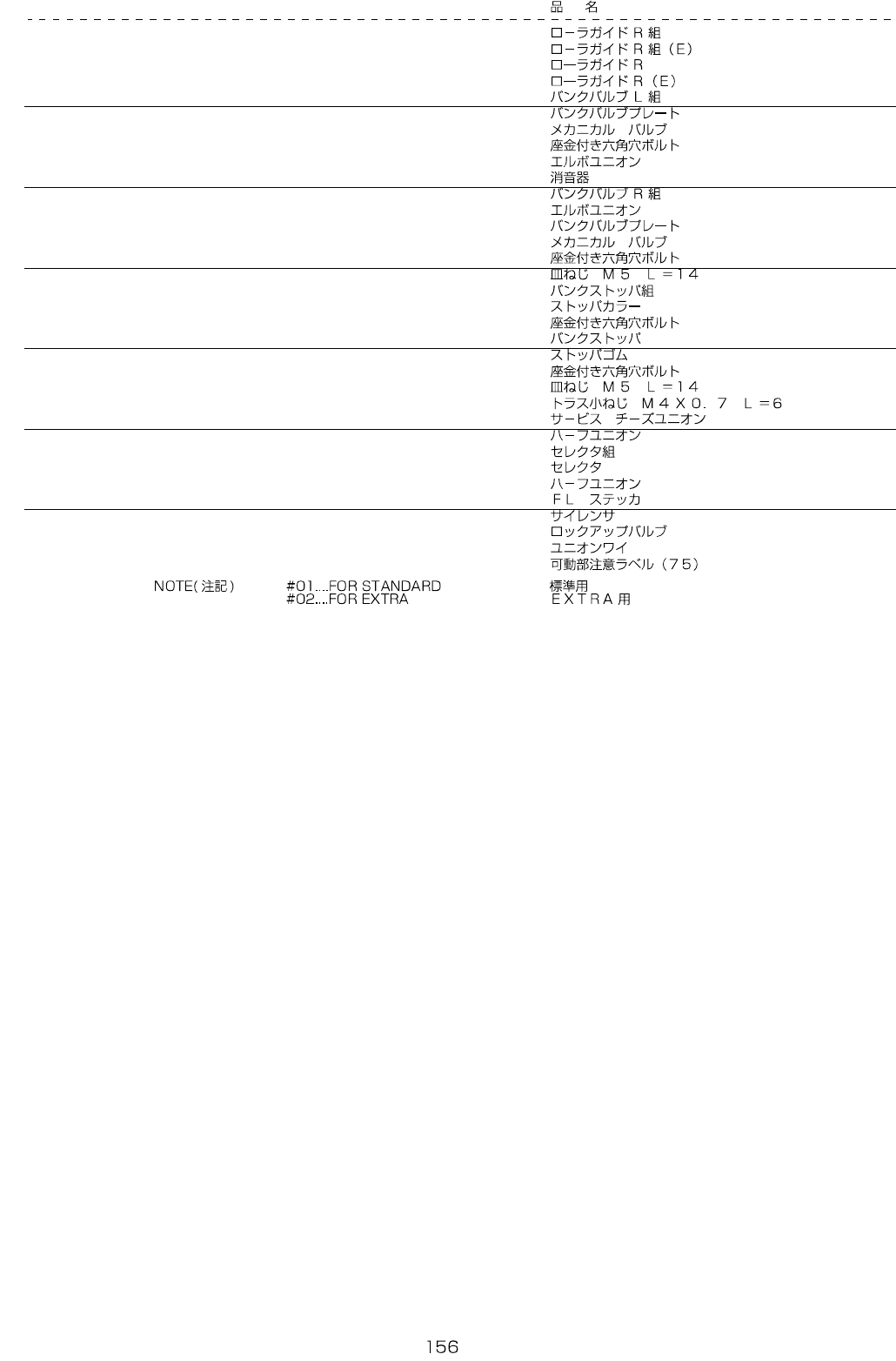

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2772-725-0A0 ROLLER GUIDE R ASM. 1
2
#02
E2732-725-0A0 ROLLER GUIDE R ASM.(E) 1
3
#01
E2772-725-000 ROLLER GUIDE R (2)
4
#02
E2732-725-000 ROLLER GUIDE R(E) (1)
5 E2776-725-0A0 BANK VALVE L ASM. (1)
6 E2776-721-000 BANK VALVE PLATE (1)
7 PV-0105050-00 MECHANICAL VALVE (1)
8 SL-6042592-TN SCREW (2)
9 PJ-3040405-05 ELBOW (1)
10 PX-0505010-00 SILENCER (1)
11 E2776-725-AA0 BANK VALVE R ASM. (1)
12 PJ-3040405-05 ELBOW (2)
13 E2776-721-000 BANK VALVE PLATE (1)
14 PV-0105050-00 MECHANICAL VALVE (1)
15 SL-6042592-TN SCREW (2)
16 SM-1051452-TN PLATE SCREW (4)
17 E2777-721-0A0 BANK STOPPER ASM. (2)
18 E2779-721-000 STOPPER COLLAR (2)
19 SL-6031292-TN BOLT (2)
20 E2777-721-000 BANK STOPPER (1)
21 E2778-721-000 STOPPER RUBBER (1)
22 SL-6052042-TN SCREW (4)
23 SM-1051452-TN PLATE SCREW 8
24 SM-0040601-SC SCREW M4X0.7 L=6 4
25 PJ-3050652-01 TEE UNION 2
26 PJ-3010652-01 HALF UNION 6XPT1/4 1
27 E2786-721-0A0 SELECTOR ASM. 1
28 PV-0151170-A0 SELECTOR (1)
29 PJ-3010651-03 HALF UNION 6XPT1/8 (4)
30 E2793-721-000 FL LABEL (1)
31 PX-0551040-00 SILENCER (PT1/8) (1)
32 PV-0152100-00 LOCK UP VALVE 1
33 PJ-3080600-03 Y UNION 2
34 CM-3009001-05 LABEL 1
