- - 82.S PARE CH A N G ER TAB LE COM P ONEN T S (3) 7 5 2 1 8 8 1 6 1 9 1 1 2 0 1 2 1 0 2 1 2 3 1 3 2 2 1 5 A 1 7 1 4 A 1 3 3 9 4 6 2 4 2 5
- -

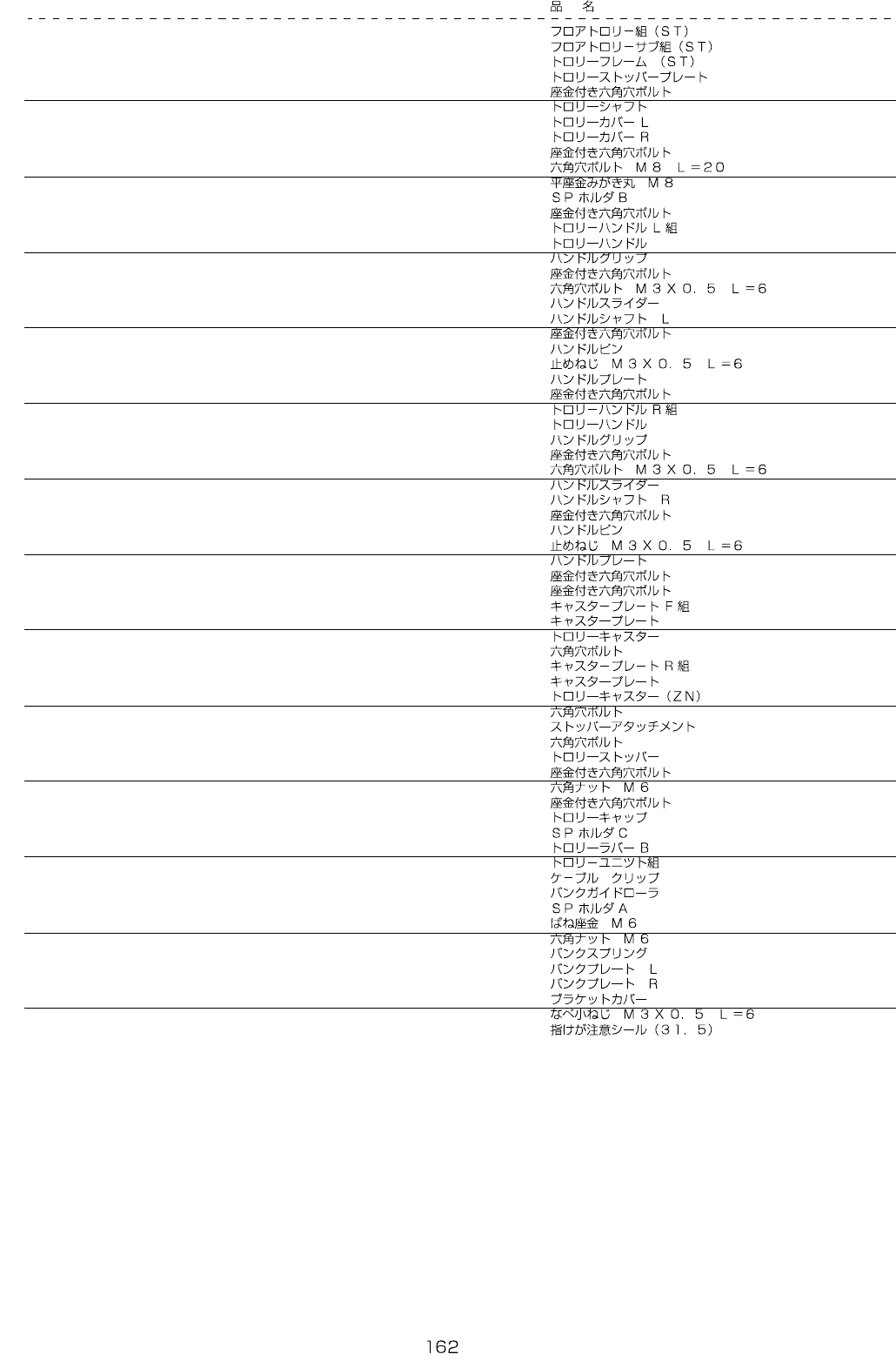

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2701-721-0A0 FLOOR TROLLEY ASM. (ST) 1
2 E2701-721-0B0 FLOOR TROLLEY SUB ASM. (ST) (1)
3 E2701-721-000 TROLLEY FRAME (ST) (1)
4 E2702-721-000 TROLLEY STOPPER PLATE (2)
5 SL-6082042-TN BOLT (4)
6 E2703-721-000 TROLLEY SHAFT (2)
7 E2704-721-000 TROLLEY COVER L (1)
8 E2705-721-000 TROLLEY COVER R (1)
9 SL-6040892-TN BOLT (6)
10 SM-6082002-TN SCREW M8 L=20 (2)
11 WP-0841601-SC WASHER 8.4X17.4X1.6 (2)
12 E2707-721-000 SP HOLDER B (1)
13 SL-6041092-TN SCREW (4)
14 E2721-721-0A0 TROLLEY HANDLE L ASM. (1)
15 E2721-721-000 TROLLEY HANDLE (1)
16 E2722-721-000 HANDLE GRIP (1)
17 SL-6040642-TN BOLT (1)
18 SM-6030602-TN HEX SCREW M3 X 6 (1)
19 E2723-721-000 HANDLE SLIDER (1)
20 E2724-721-000 HANDLE SHAFT L (1)
21 SL-6040642-TN BOLT (1)
22 E2725-721-000 HANDLE PIN (1)
23 SM-8030602-TP SCREW M3X0.5 L=6 (1)
24 E2727-721-000 HANDLE PLATE (1)
25 SL-6082092-TN BOLT (2)
26 E2721-721-AA0 TROLLEY HANDLE R ASM. (1)
27 E2721-721-000 TROLLEY HANDLE (1)
28 E2722-721-000 HANDLE GRIP (1)
29 SL-6040642-TN BOLT (1)
30 SM-6030602-TN HEX SCREW M3 X 6 (1)
31 E2723-721-000 HANDLE SLIDER (1)
32 E2726-721-000 HANDLE SHAFT R (1)
33 SL-6040642-TN BOLT (1)
34 E2725-721-000 HANDLE PIN (1)
35 SM-8030602-TP SCREW M3X0.5 L=6 (1)
36 E2727-721-000 HANDLE PLATE (1)
37 SL-6082092-TN BOLT (2)
38 SL-6051492-TN BOLT (14)
39 E2708-721-0A0 CASTER PLATE F ASM. (1)
40 E2708-721-000 CASTER PLATE (1)
41 E2709-721-000 TROLLEY CASTER (2)
42 SM-6060802-TN BOLT (8)
43 E2708-721-AA0 CASTER PLATE R ASM. (1)
44 E2708-721-000 CASTER PLATE (1)
45 E2742-721-000 TROLLEY CASTER (ZN) (2)
46 SM-6060802-TN BOLT (8)
47 E2710-721-000 STOPPER ATTACHMENT (2)
48 SM-6060802-TN BOLT (8)
49 E2711-721-000 TROLLEY STOPPER (2)
50 SL-6061242-TN BOLT (8)
51 NM-6060003-SC NUT M6 (8)
52 SL-6062592-TN SCREW (8)
53 E2712-721-000 TROLLEY CAP (4)
54 E2713-721-000 SP HOLDER C (1)
55 E2714-721-000 TROLLEY RUBBER B (4)
56 E2731-721-0A0 TROLLEY UNIT ASM. (1)
57 HX-0015000-0K CABLE CLIP (1)
58 E2732-721-000 BANK GUIDE ROLLER (6)
59 E2733-721-000 SP HOLDER A (2)
60 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (2)
61 NM-6060003-SC NUT M6 (2)
62 E2734-721-000 BANK SPRING (2)
63 E2735-721-000 BANK PLATE L (1)
64 E2736-721-000 BANK PLATE R (1)
65 E2737-721-000 BRACKET COVER (1)
66 SM-4030601-SC SCREW M3 X 6 (2)
67 CM-3002000-03 ATTENTION LABEL (2)
- -

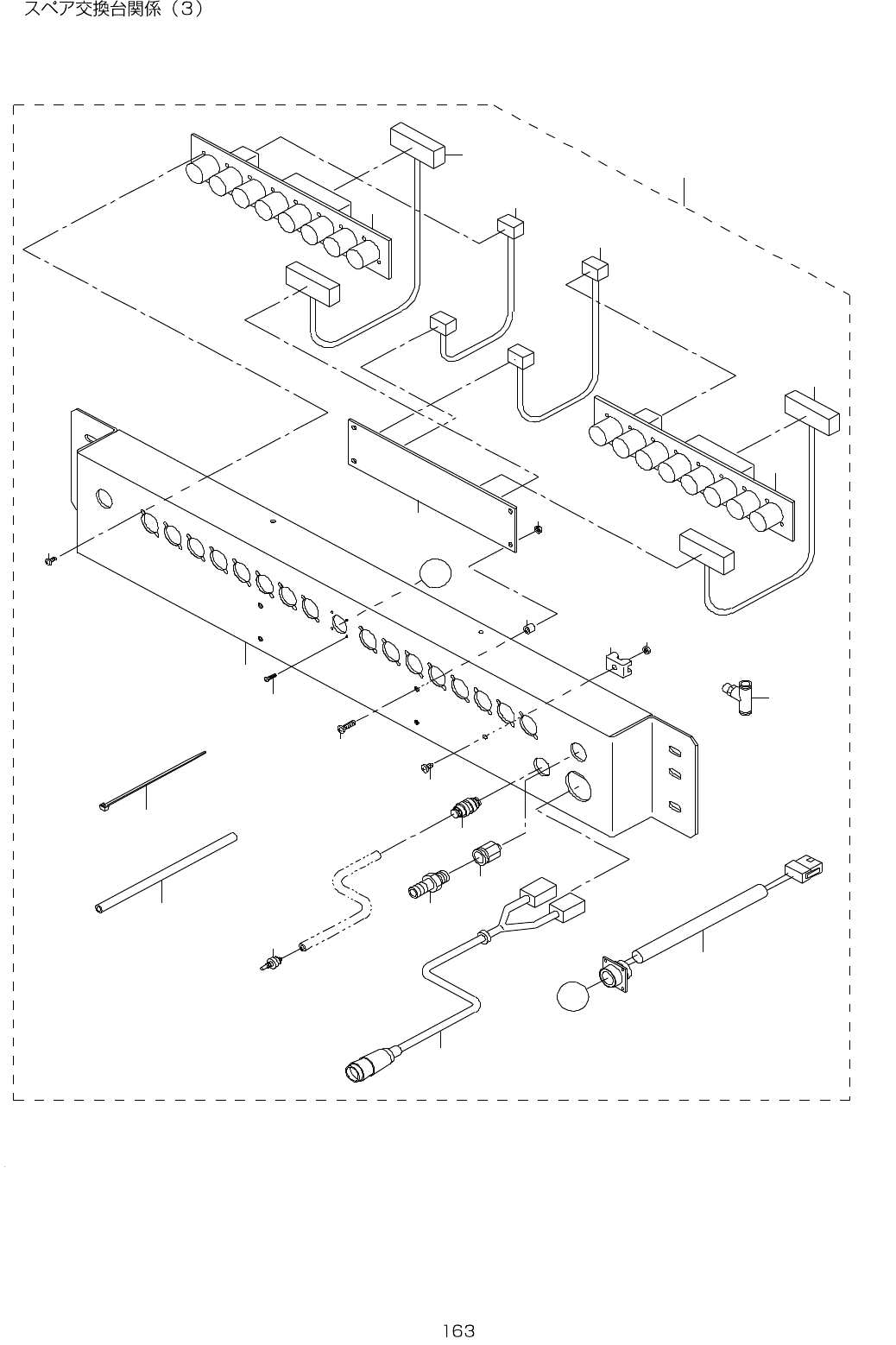

82.SPARE CHANGER TABLE COMPONENTS (3)
7
5
2
1 8
8
1 6
1 9
1 1
2 0
1 2
1 0
2 1
2 3
1 3
2 2
1 5
A
1 7
1 4
A
1
3
3
9
4
6
2 4
2 5
- -

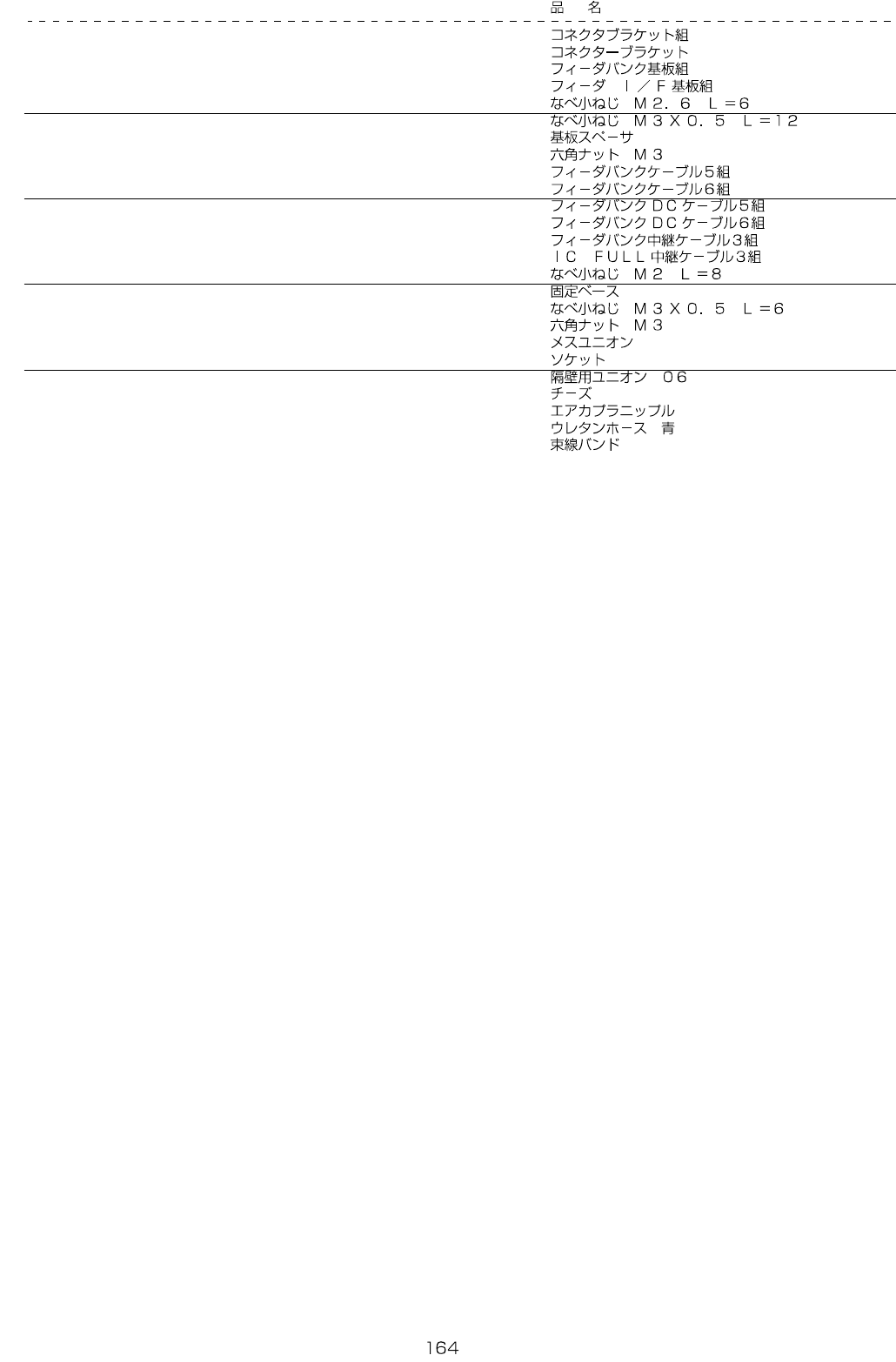

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2641-725-0A0 CONNECTOR BRACKET ASM. 1
2 E2641-721-000 CONNECTOR BRACKET (1)
3 E8615-715-0A0 FEEDER BANK CIRCUIT BOARD ASM. (2)
4 E8618-721-0A0 FEEDER I/F BOARD ASM. (1)
5 SM-4860601-SC SCREW M2.6 L=6 (16)
6 SM-4031201-SC SCREW M3 X 12 (4)
7 B4011-210-000 SPACER (4)
8 NM-6030003-SC NUT M3 (1)
9 E9378-721-0A0 FEEDER BANK CABLE 5 ASM (1)
10 E9379-721-0A0 FEEDER BANK CABLE 6 ASM. (1)
11 E9384-721-0A0 FEEDER BANK DC CABLE 5 ASM. (1)
12 E9385-721-0A0 FEEDER BANK DC CABLE 6 ASM. (1)
13 E9388-725-0A0 FEEDER BANK RELAY CABLE 3 ASM. (1)
14 E9395-721-0A0 IC FULL RELAY CABLE 3 ASM. (1)
15 SM-4020801-SC SCREW M2 X 8 (4)
16 HX-0029400-00 FIXED BASE (1)
17 SM-4030601-SC SCREW M3 X 6 (1)
18 NM-6030003-SC NUT M3 (1)
19 PJ-3010651-06 KNIFE UNION (2)
20 E2904-700-000 SOCKET (2)
21 PJ-2300061-00 UNION 06 (1)
22 PJ-3050600-04 TEE (1)
23 PJ-0320090-05 NIPPLE (1)
24 BT-0600400-EC TUBE HOSE, BLUE (1.3)
25 EA-9500B01-00 CABLE BAND (4)
