- - REF.NO NOTE PART NO D E S C R I P T I O N Q ty 1 E 9 710 - 725-0A0 R EA R M ONIT O R A S M. 1 2 HX - 000 5 500 -0K R UBBER BUSH I NG A ( 2) 3 E 9 591 - 725-0A0 P OWE R SOUR CE CA B L E ASM. (1) 4 E 9 711 - 725-00 0…
- -
85.REAR MONITOR COMPONENTS
1 5
2 11 8
1 8
1 8
1 7
1 8
1 7
1 6
2 0
1 9
1 4
1 3
1 9
1 1
2 1
2 1
1 8
1 8
2 0
2 1
1 8
1 8
1 7
1 0
1 2
1 7
4
5
1
7
8
2
6
9
3
3 0
2 6
2 8
2 7
2 9
2 2
2 4
2 3
2 5
- -

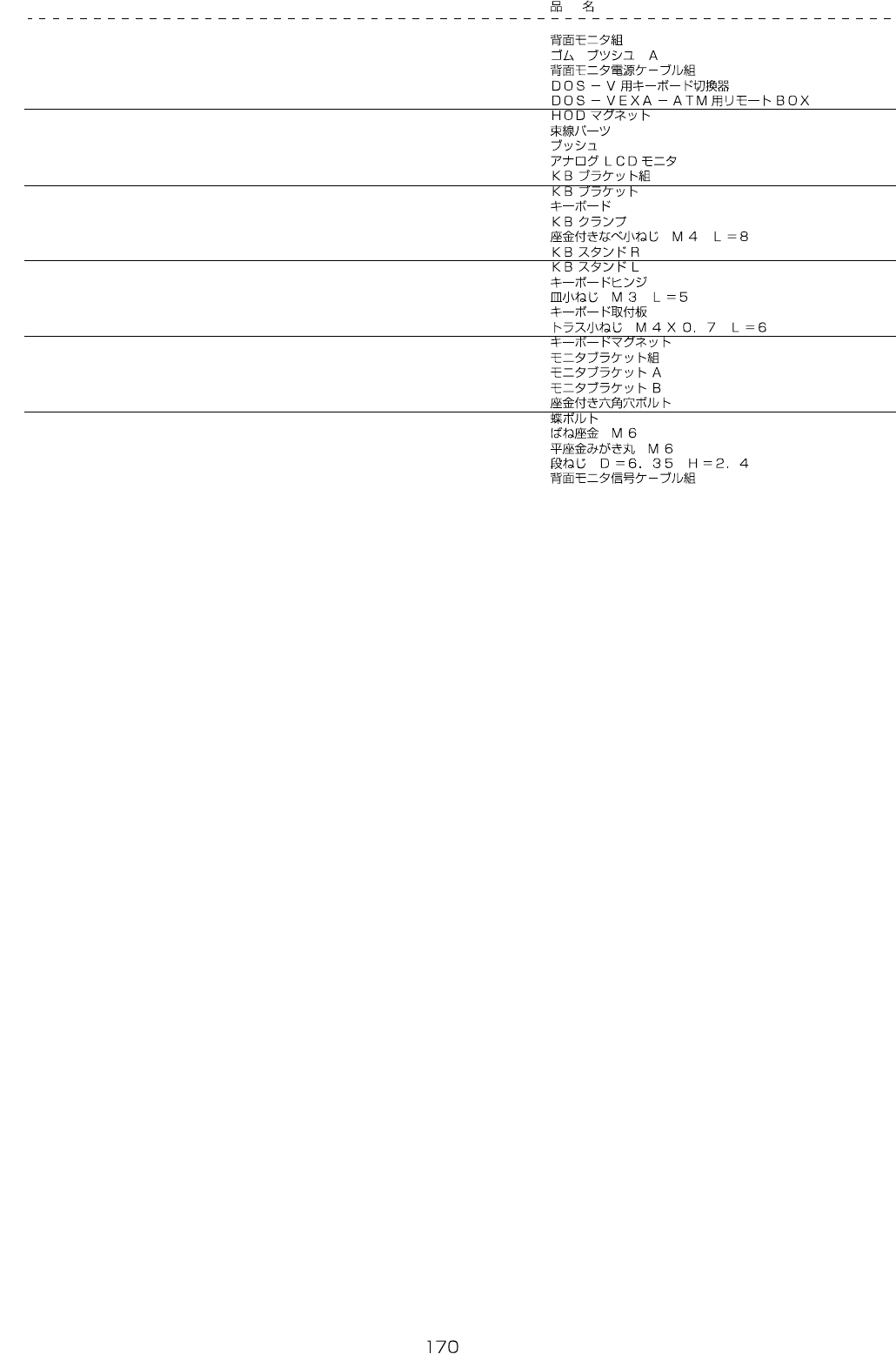

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9710-725-0A0 REAR MONITOR ASM. 1
2 HX-0005500-0K RUBBER BUSHING A (2)
3 E9591-725-0A0 POWER SOURCE CABLE ASM. (1)
4 E9711-725-000 DOS-V KEYBOARD CHANGE (1)
5 E9712-725-000 DOS-V EXA-ATM REMOTE BOX (1)
6 E1387-700-000 HOD MAGNET (2)
7 HX-0041100-00 CABLE PARTS (3)
8 HX-0005500-0L BUSH (1)
9 400-28131 LCD DISP (1)
10 E1341-721-0A0 KB BRACKET ASM. (1)
11 E1341-721-000 KB BRACKET (1)
12 E9615-721-000 KEYBOARD (1)
13 E1342-721-000 KB CLAMP (1)
14 SL-4040891-SC SCREW M4 L=8 (2)
15 E1347-721-000 KB STAND R (1)
16 E1348-721-000 KB STAND L (1)
17 E1349-721-000 KEYBOARD HINGE (3)
18 SM-1030501-SC SCREW M3 L=5 (12)
19 E1344-721-000 KEYBOARD MOUNTING PLATE (2)
20 SM-0040601-SC SCREW M4X0.7 L=6 (4)
21 E1346-721-000 KEYBOARD MAGNET (2)
22 400-31161 MONITOR BRACKET ASM 1
23 400-63748 MONITOR BRACKET A (1)
24 400-63749 MONITOR BRACKET B (1)
25 SL-6041092-TN SCREW (4)
26 161-87007 WING BOLT (2)
27 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 (2)
28 WP-0641601-SC WASHER (2)
29 SD-0640246-SP HINGE SCREW D=6.35 H=2.4 (2)
30 E9592-725-0A0 REAR MONITOR SIGNAL CABLE ASM. (1)
- -
86.AREA SENSOR COMPONENTS
1
4
5
6
2
3
7
8
