- - REF.NO NOTE PART NO D E S C R I P T I O N Q ty 1 E 4 861 - 725-0A0 C O N VER T DISK ASM . 1 2 E 6 021 - 721-0A0 H L C S YS T EM ASM.(ST ) 1 3 E 6 022 - 721-0A0 H L C S YS T EM ASM.(J E ) 1 4 E 6 051 - 725-0A0 A RC …
- -

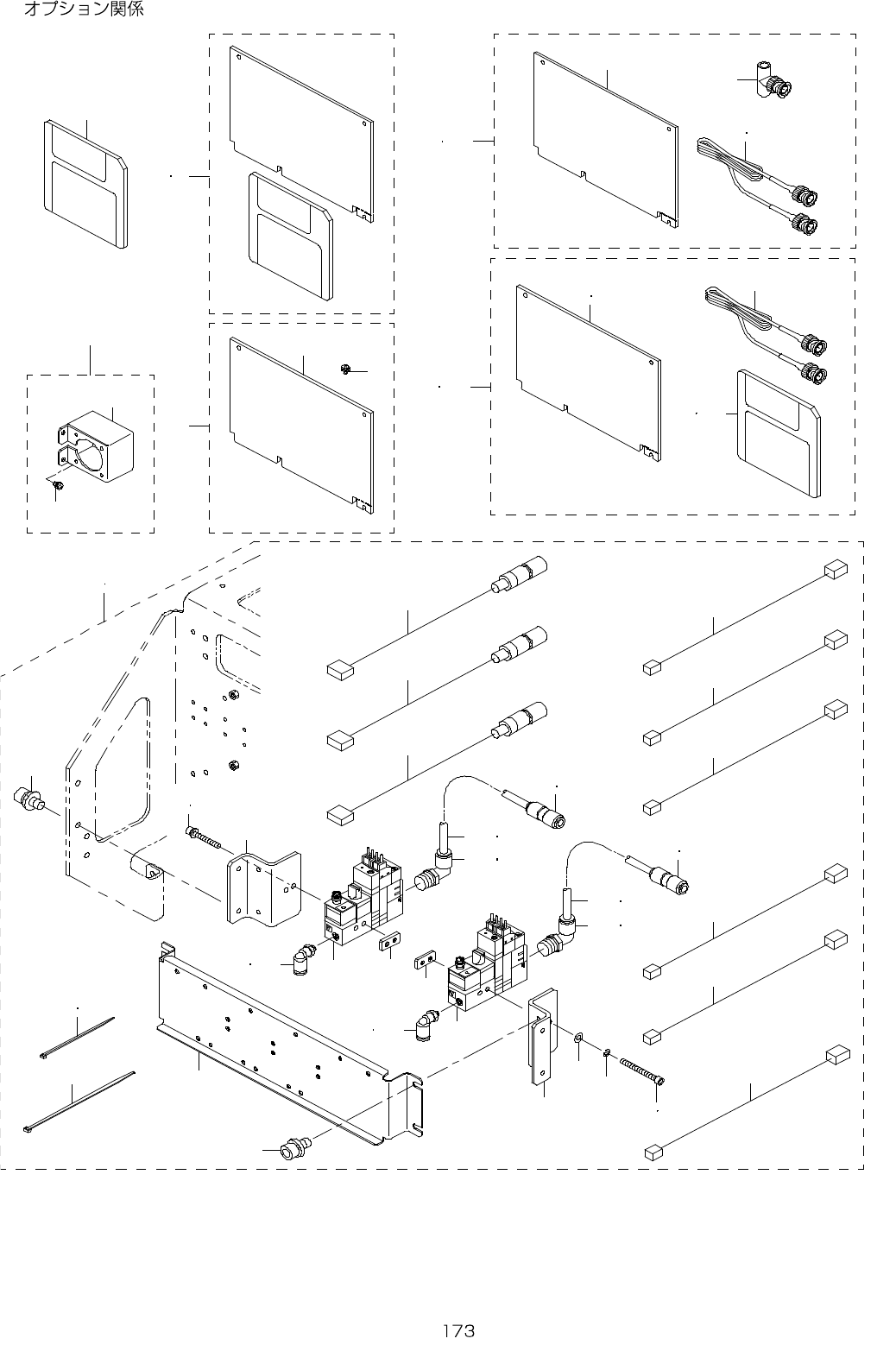

87.OPTION COMPONENTS
1
5
4
6
9
8
1 2
1 0 1 1
1 6 1 7
2 3
1 8 1 9
2 0 2 1
1 4 1 5
2 2
1 3
3 2
3 5
2 7
2 9
2 7
3 0
3 0
2 8
4 1
2 5 2 6
7
3 3
3 4
3 6
3 8
3 9
4 0
2 6 3 1
2 9
4 2
4 3
4 4 4 6
4 5
4 8 5 2
4 9 5 3
4 9 5 3
4 8 5 2
2 3 2 4
3 7
4 1
5 0 5 4
5 0 5 4
4 7 5 1
4 7 5 1
- -

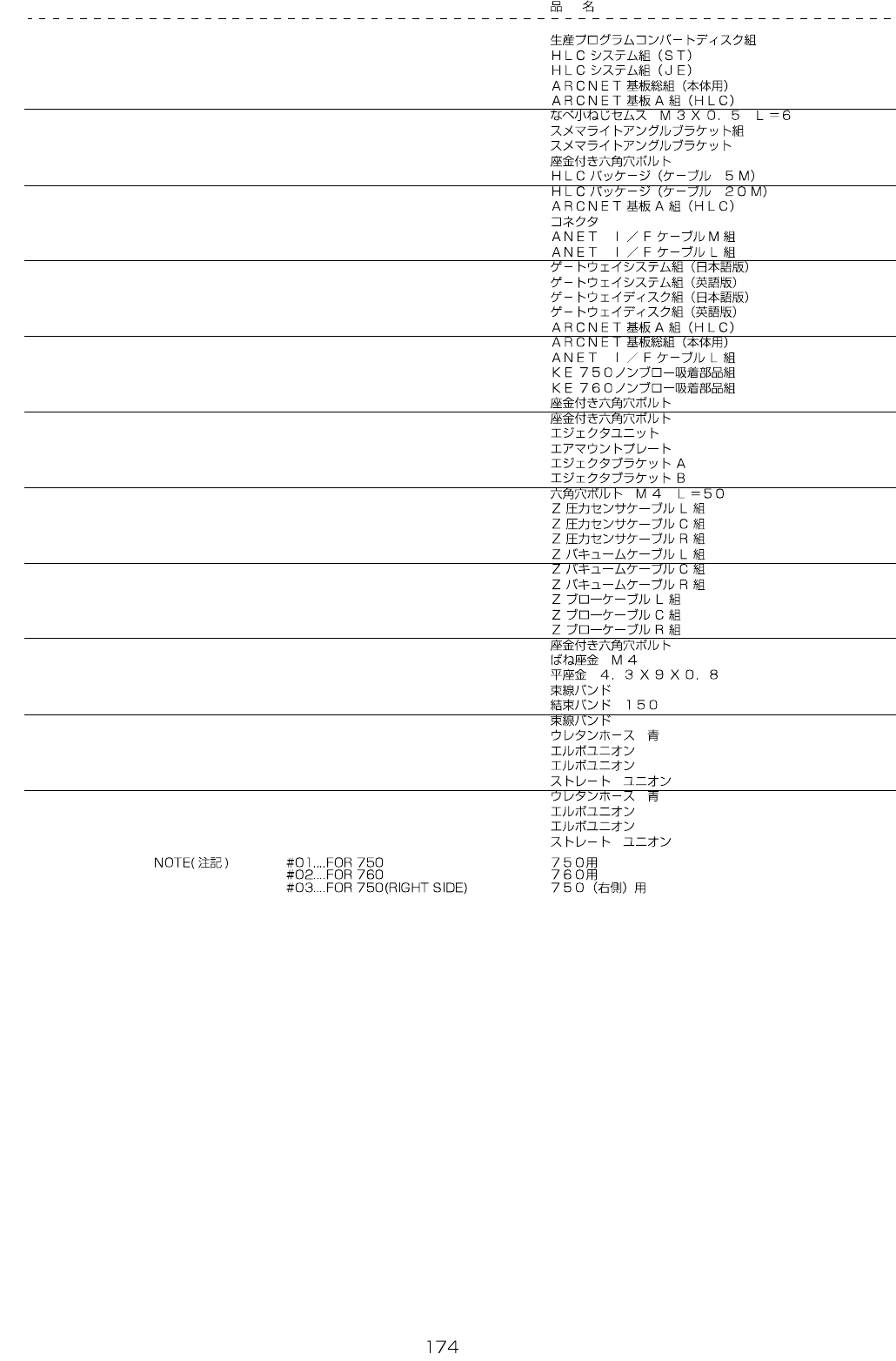

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E4861-725-0A0 CONVERT DISK ASM. 1
2 E6021-721-0A0 HLC SYSTEM ASM.(ST) 1
3 E6022-721-0A0 HLC SYSTEM ASM.(JE) 1
4 E6051-725-0A0 ARCNET PCB A ASM.(MAIN UNIT) 1
5 E8651-715-AA0 ARCNET PCB A ASM.(HLC) (1)
6 SL-4030691-SC SCREW M3X6 (1)
7 E1021-725-0A0 ANGLE BRACKET ASM. 1
8 E1021-725-000 ANGLE BRACKET (1)
9 SL-6030692-TN BOLT (2)
10 E7000-725-AA0 HLC PACKAGE(CABLE 5M) 1
11 E7000-725-BA0 HLC PACKAGE(CABLE 20M) 1
12 E8651-715-AA0 ARCNET PCB A ASM.(HLC) (1)
13 HK-0458000-2A CONNECTOR (1)
14 E9572-715-0A0 ANET I/F CABLE M ASM. (1)
15 E9573-715-0A0 ANET I/F CABLE L ASM. (1)
16 E4871-725-0A0 GATEWAY SYSTEM ASM.(JAPANESE) 1
17 E4872-725-0A0 GATEWAY SYSTEM ASM.(ENGLISH) 1
18 E4871-725-0B0 GATEWAY DISK ASM.(JAPANESE) (1)
19 E4872-725-0B0 GATEWAY DISK ASM.(ENGLISH) (1)
20 E8651-715-AA0 ARCNET PCB A ASM.(HLC) (1)
21 E6051-725-0A0 ARCNET PCB ASM.(MAIN UNIT) (1)
22 E9573-715-0A0 ANET I/F CABLE L ASM. (1)
23
#01
E7910-725-0A0 KE-750 NO BLOW ADSORPTION PARTS ASM 1
24
#02
E7910-725-0B0 KE-760 NO BLOW ADSORPTION PARTS ASM 1
25
#01
SL-6043092-TN BOLT (2)
26
#02
SL-6043092-TN BOLT (4)
27 E7911-725-0A0 EJECTOR UNIT (2)
28 E7912-725-000 AIR MOUNT PLATE (1)
29 E7913-725-000 EJECTOR BRACKET A (2)
30 E7914-725-000 EJECTOR BRACKET B (2)
31
#03
SM-6045052-TN BOLT M4 L=50 (2)
32 E9811-725-0A0 Z PRESSURE SENSOR CABLE L ASM (1)
33
#01
E9812-725-0A0 Z PRESSURE SENSOR CABLE C ASM (1)
34 E9813-725-0A0 Z PRESSURE SENSOR CABLE R ASM (1)
35 E9814-725-0A0 Z VACUUM CABLE ASM L ASM (1)
36
#01
E9815-725-0A0 Z VACUUM CABLE ASM C ASM (1)
37 E9816-725-0A0 Z VACUUM CABLE ASM R ASM (1)
38 E9817-725-0A0 Z BLOW CABLE L ASM (1)
39
#01
E9818-725-0A0 Z BLOW CABLE C ASM (1)
40 E9819-725-0A0 Z BLOW CABLE R ASM (1)
41 SL-6040892-TN BOLT (8)
42
#01
WS-0410002-KN SPRING WASHER (2)
43 #01 WP-0430801-SC WASHER 4.3X9X0.8 (2)
44
#01
EA-9500B01-00 CABLE BAND (28)
45 EA-9500B02-00 CABLE BAND 150 (10)
46
#02
EA-9500B01-00 CABLE BAND (22)
47
#02
BT-0600400-EC TUBE HOSE, BLUE (0.5)
48
#01
PJ-3040652-01 ELBOW UNION 6XPT1/4 (3)
49
#01
PJ-3040405-04 ELBOW UNION (3)
50
#01
PJ-3030600-01 STRAIGHT UNION (3)
51
#01
BT-0600400-EC TUBE HOSE, BLUE (0.8)
52
#02
PJ-3040652-01 ELBOW UNION 6XPT1/4 (2)
53
#02
PJ-3040405-04 ELBOW UNION (2)
54
#02
PJ-3030600-01 STRAIGHT UNION (2)
Notes
