MAIN UNIT

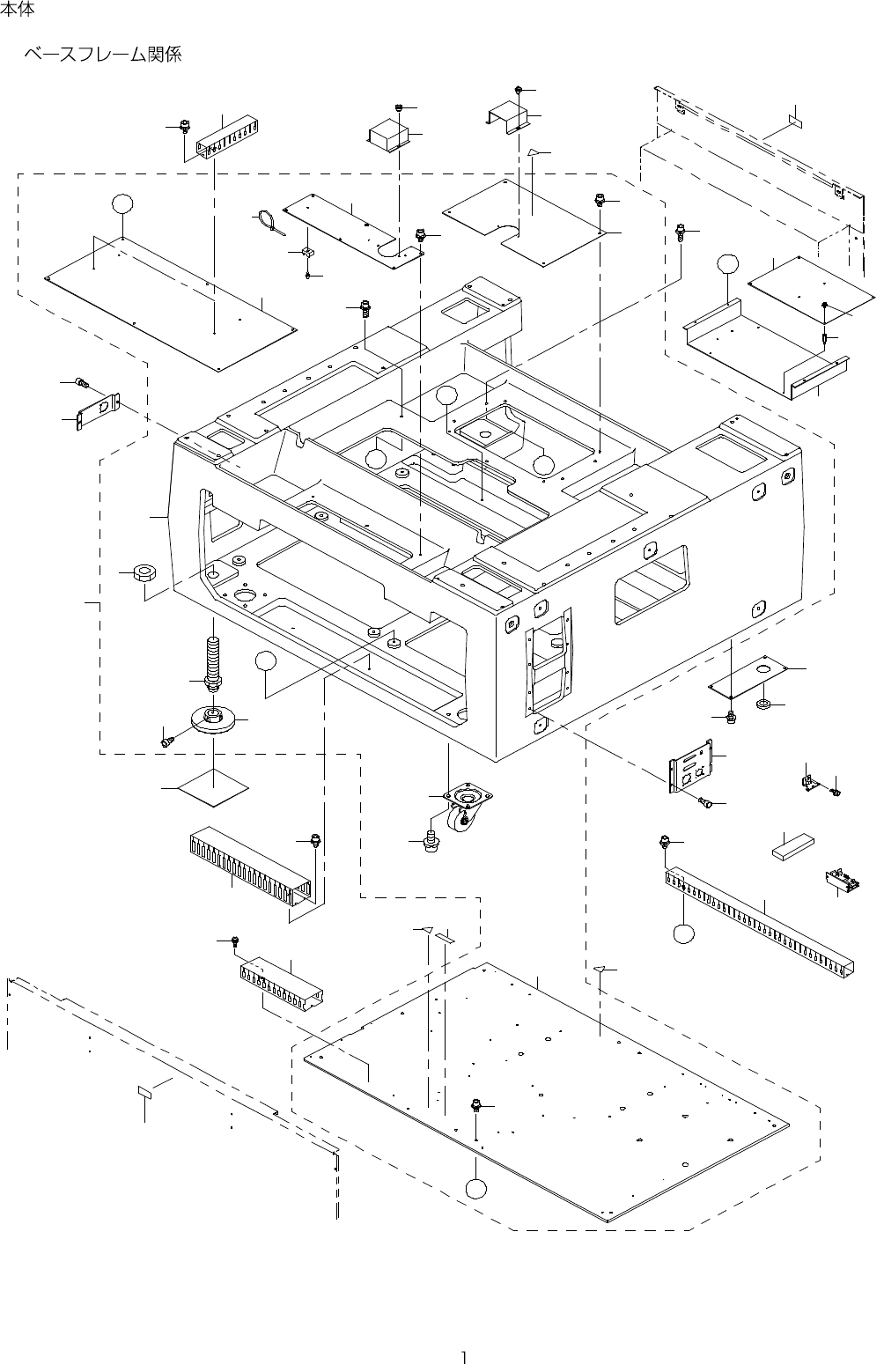

1. BASE FRAME COMPONENTS
5
3 8
7
8
9
3 5
6
1 1
1 9
1 6
1 8
1 2
2 0
2 1
2 2
2 3
2 4
2 5
3 5
3 6
3 6
3 7
1 7
D
B
1 5
3
4
2 7
3 2
2 6
3 1
2 9
3 0
A
A
B
C
C
D
3 2
2 8
3 3
1
3 4
3 4
1 0
3 9
4 1
4 0
1 3
1 4
4 3
4 4
4 2
2
4 5
4 6
4 5
4 5
4 7
4 8
- -

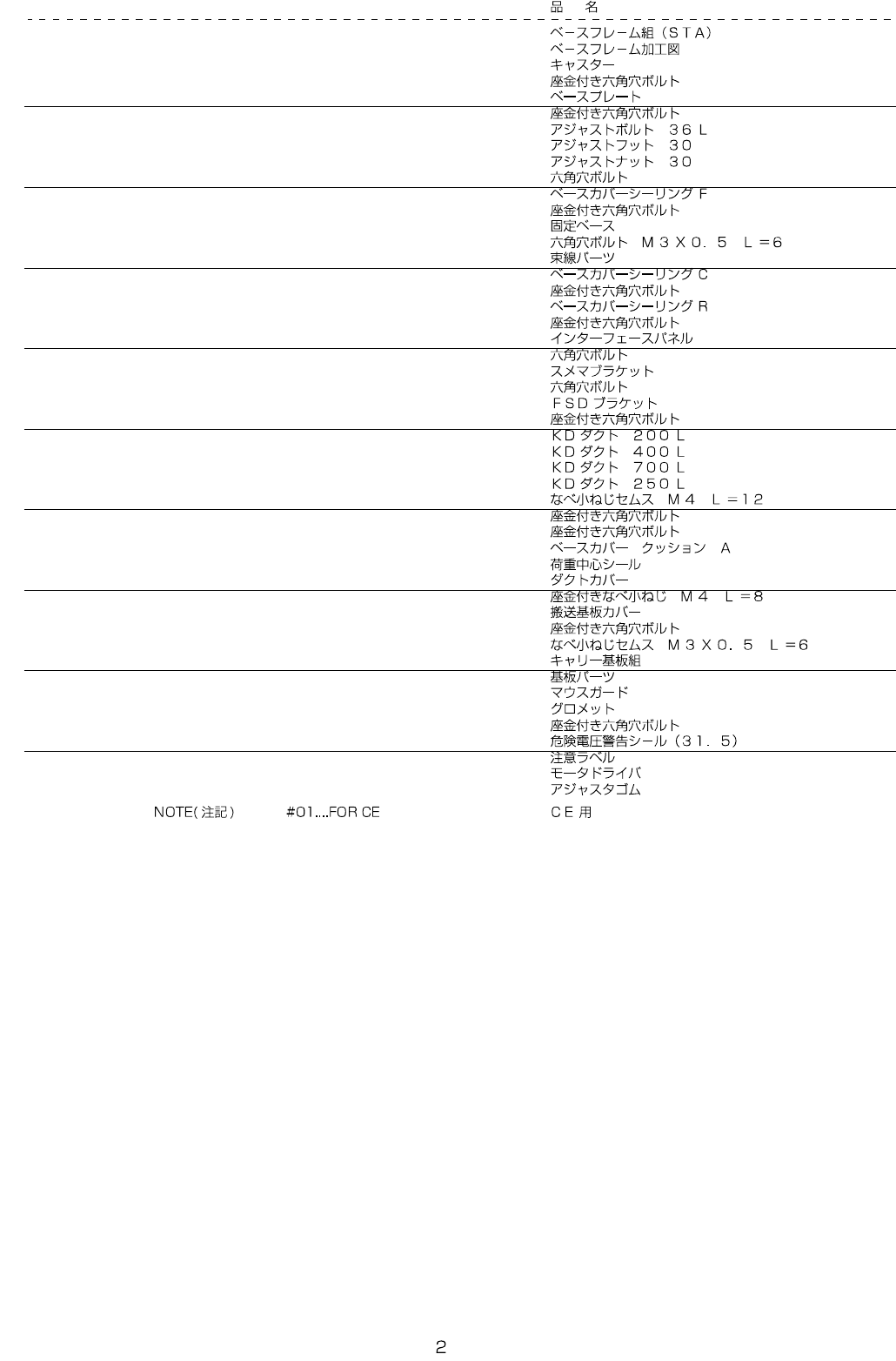

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1001-725-0A0 BASE FRAME ASM.(STA) 1
2 E1001-725-000 BASE FRAME (1)
3 E1006-700-000 CASTER (4)
4 SL-6102042-TN SCREW (16)
5 E1003-725-000 BASE PLATE (1)
6 SL-6061292-TN SCREW (10)
7 E1002-725-000 ADJUSTER BOLT 30 (4)
8 E1034-721-000 ADJUSTER FOOT 30 (4)
9 E1014-725-000 ADJUSTER NUT 30 (8)
10 SM-6061202-TN BOLT (12)
11 E1008-725-000 BASE COVER CILLING F (1)
12 SL-6061242-TN BOLT (6)
13 HX-0029400-00 FIXED BASE (3)
14 SM-6030602-TN HEX SCREW M3 X 6 (3)
15 HX-0036300-00 CABLE PART (3)
16 E1009-725-000 BASE COVER CILLING C (1)
17 SL-6063042-TN BOLT (6)
18 E1010-725-000 BASE COVER CILLING R (1)
19 SL-6061242-TN BOLT (4)
20 E1005-725-000 INTERFACE PANAL 1
21 SM-6061202-TN BOLT 4
22 E1007-725-000 SMEMA BRACKET 1
23 SM-6061202-TN BOLT 2
24 E3903-725-000 FSD BRACKET 6
25 SL-6041092-TN SCREW 4
26 KX-0000000-50 KD DUCT 200L 2
27 KX-0000000-60 KD DUCT 400L 1
28 KX-0000000-70 KD DUCT 700L 2
29 KX-0000000-80 KD DUCT 250L 1
30 SL-4041291-SC SCREW M4 L=12 6
31 SL-6051092-TN BOLT 4
32 SL-6061242-TN BOLT 4
33 E1017-715-000 BASE COVER CUSHION A 4
34 168-70206 GRAVITY SEAL 4
35 E1617-725-000 KD DUCT COVER 2
36 SL-4040891-SC SCREW M4 L=8 4
37 E1618-725-000 CONVEYOR BASE COVER 1
38 SL-6063042-TN BOLT 4
39 SL-4030691-SC SCREW M3X6 4
40 E8617-802-0A0 CARRY BASE ASM. 1
41 HX-0035400-0F BOARD SUPPORT 4
42 E1012-725-000 MOUSE GUARD 1
43 HX-0022100-0B GROMMET 1
44 SL-6061292-TN SCREW 4
45
#01
CM-3001000-01 LABEL 3
46
#01
CM-5000000-02 CAUTION LABEL 1
47 HM-0013200-00 MOTOR DRIVER 1
48 E1027-721-000 ADJUSTER RUBBER 4
- -

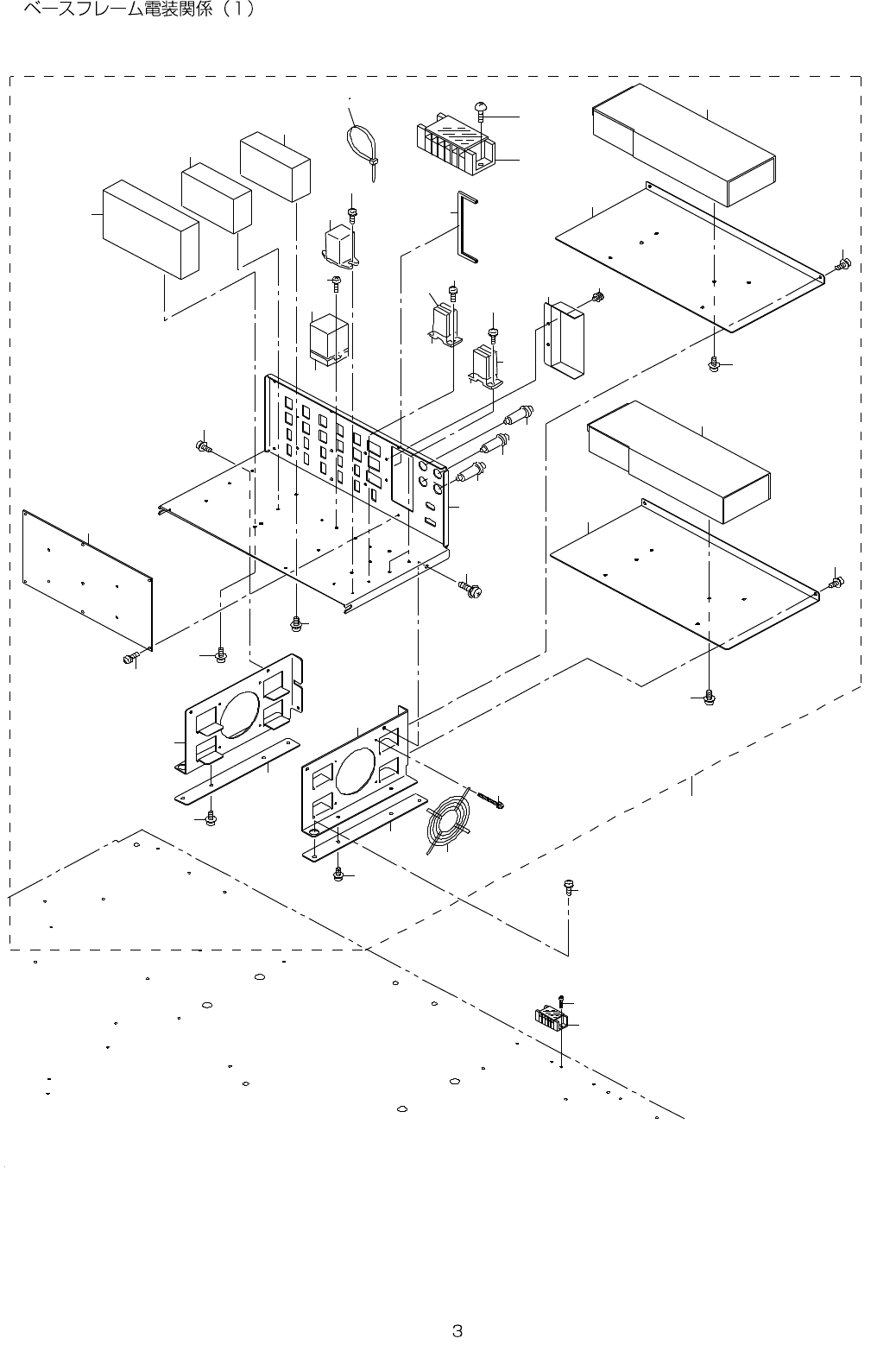

2. BASE FRAME ELECTRIC APPARATUS COMPONENTS (1)
2
2
3
3
4
5
8
9
1 0
1 5
2 9
1 2
1 4
1 3
9
1 0
1 1
3 4
2 5
2 2
2 1
3 5 3 6
1 6
1 8
2 0
2 6
2 7
3 0
3 3
3 7
3 2
3 8
4 7
4 6
7
3 1
4 5
3 9
4 3
2 8
6
1
1 7
2 4
2 3
4 4
4 1
4 2
1 9
4 0
