Superior technology for the latest generation semiconductor packages
The Spectrum II Premier system improves upon the
world’s preferred automated fluid dispensing
platform with the latest technolgy to produce the
most challenging advanced packages.
Leading-Edge Technology
. The S2-900P
incorporates the latest generation IntelliJet
®
system
with ReadiSet
™
Jet Cartridge technology, taking
jetting to new levels. Capable of consistently jetting
down to 1 nL dispense volumes and up to 1000 Hz,
the IntelliJet system jets into tighter dispense gaps
with smaller wet-out distances than traditional jets.
ReadiSet cartridges make jet maintenance quick and
easy, keeping dispenser productivity at its highest
level. The new Monocle Vision Package further
improves wet-dispense accuracy and productivity
with higher contrast capabilities and larger fields of
view.
Advanced Process Controls
. The Spectrum II
Premier platform reduces process variation,
increases yield, and reduces cost. Software-managed
temperature, fluid and air pressure provide closed-
loop control that eliminates the need for operator
adjustments. Calibrated Process Jetting (CPJ)
automatically maintains volumetric repeatability
during long production runs. Controlled Process
Heat (CpH
™
) adds recipe-controlled heat
management for improved thermal efficiency.
Reliable Performance.
Pairing the performance of
the Spectrum II Series advanced process controls
with the IntelliJet system provides unmatched
consistency for large production lines. To achieve
identical performance across a line and make scaling
up production rapid and reliable, settings are easily
copied from system to system.
Expertise
. With over 30 years of market leadership
in automated fluid dispensing, Nordson
ASYMTEK is able to guide you in developing a
reliable production process. From initial process
development through full-scale production, you are
supported by our experienced worldwide
engineering, applications development and technical
service network.
Features and Benefits
The Spectrum II Premier S2-900P implements new
jetting, vision and software technologies to meet even
the most challenging dispensing requirements
The S2-900P incorporates the new IntelliJet
®
Jetting
System, which dispenses the smallest dots and lines
with market-leading reliability and consistency
The new Monocle
™
Vision Package delivers
expansive field of view and contrast capabilities
Pre-configured with common options for advanced
packaging processes:
o High precision X-Y-Z motion system for best-in-
class wet dispense accuracy
o Patented, closed-loop process controls for
dispense weight
o High-accuracy, non-contact laser height sensor
o Fids-on-the-Fly
™
and advanced packaging
software suite for high throughput
o Substrate heating controls for up to six zones
Page 2 of 3
Spectrum
™
II Premier S2-900P Features
Additional Optional Features and Configurations
Dual-action dispensing (two applicators operate
independently)
Exterior bulk fluid reservoir: 600 cc (20 oz), includes remote
feed and fluid level sensor
Hot plate, process development (batch processing)
Low fluid sensor, magnetic or capacitive
Material handling: MH-900 Series loader/unloaders, film
frame wafer, bare wafer
SECS/GEM interface
Ventilation Interlocking for Volatile Organic Compound
dispensing (e.g. flux or primer)
Spectrum
™
II Premier S2-900P Key Specifications
Motion System
Z repeatability ±15 µm (0.0006 in.), 3 sigma
X-Y repeatability ±15 µm (0.0006 in.), 3 sigma
X-Y acceleration: 1 g peak
X-Y velocity: 1 m/s peak (40 in./s)
X-Y-Z encoder resolution: 1 µm
Wet Dispensing Accuracy & Repeatability
Single Applicator:
C
p
≥ 1.0: ±35 µm (0.0014 in.)
C
pk
≥ 1.0
(1)
: ±40 µm (0.0016 in.)
Z-Gap Performance
Z-Gap Repeatability
(2)
: ±15 µm (0.0006 in.), 3 sigma
Minimum Z-Gap Capability: 50 µm (0.002 in.)
Dispense Area (X-Y)
339 x 410 mm (13.3 x 16.1 in.)
Conveyor
Min. board/carrier width
(3)
: 34 mm (1.3 in.)
Max. board/carrier thickness: 12 mm (0.5 in.)
Max. board/carrier length: One station: 340 mm (13.4 in.)
Three stations: 320 mm (12.6 in.)
Min. board/carrier length: 25 mm (1.0 in.)
Max. board/carrier width: Single lane: 535 mm (21.1 in.)
Dual lane: up to 228 mm (9.0 in.)
(configuration dependent)
Facilities Requirements
System footprint: Single heat station: 600 mm wide x
1321 mm deep (23.6 x 52.0 in.)
Two heat stations: 850 x 1321 mm
(33.5x52.0 in.)
Three heat stations: 1100 x 1321 mm
(43.3x52.0 in.)
Air supply: Two air supplies: one with 3 CFM @
100 psi for contact tooling, a second
one with 1 CFM @ 100 psi for the
rest of the system (100 psi = 689 kPa,
6.8 atm)
Power (mains): Power supply accommodates 200-240
VAC, 47-63 Hz single phase, 30 A
Ventilation: Downdraft or updraft
System weight
(4)
: 377-422 kg (830-930 lbs.)
(1) Wet dispense C
pk
is tested against Nordson ASYMTEK standard sealant
line path accuracy test method
(2) Z-gap repeatability is tested with Nordson ASYMTEK standard white
ceramic, performance with other substrates may vary
(3) Contact factory regarding smaller boards/carriers
(4) System weight varies depending on configuration
Standard
with
Programmable
fluid
and valve pressures
Standard
with Fids-on-the-
Fly
™
software for high-
speed fiducial capture
Single
- or dual-lane
configuration

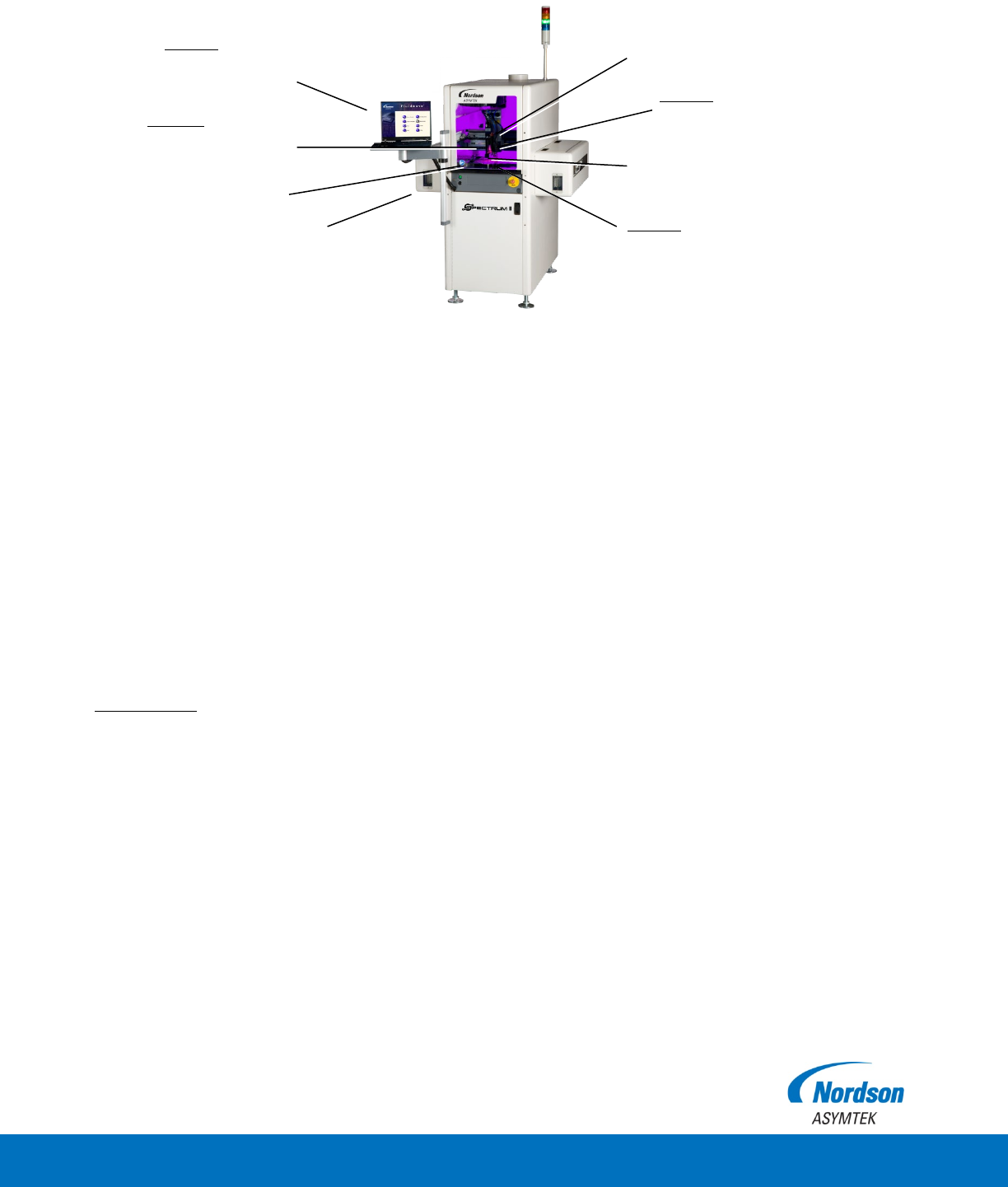

Monocle
™
Vision Package with 5-
channel on/off axis lighting
Optional
pre- and post-
dispense
heat stations
Standard
with Laser Height
S
ensor
Optional
Tilt Jetting dispensing
capability
Standard
with Patented Calibrated
Process Jetting (CPJ)
weight scale
Page 3 of 3
Nordson ASYMTEK
+1.760.431.1919
2747 Loker Avenue West
Carlsbad, CA USA 92010-6603
Published 2019-03-11 Updated
Dimensions are in millimeters

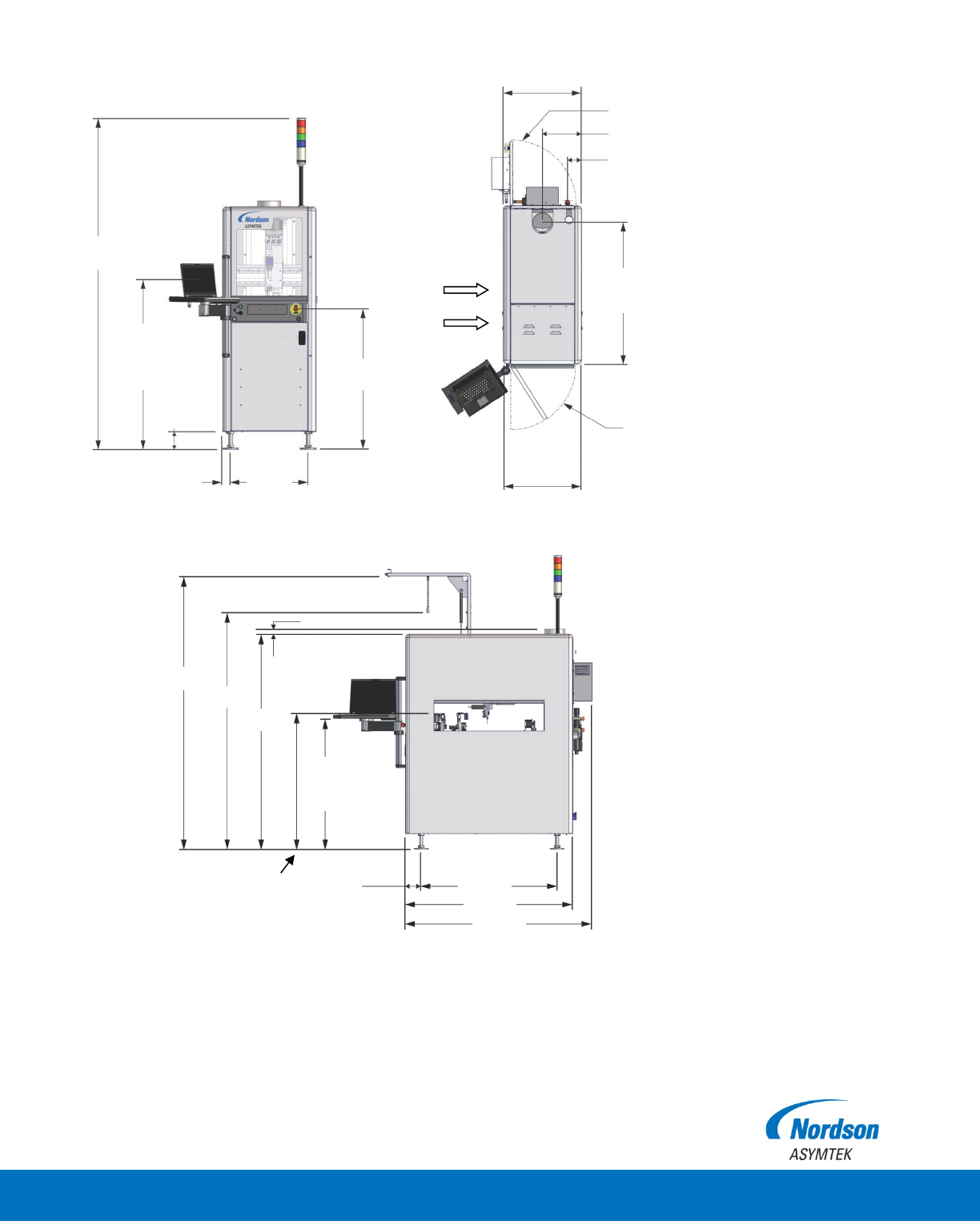

Spectrum
™
II Premier S2-900P Dimensions
Side View
Top View
Front View
2085
488
106
Foot
50
1070
Flat
Panel
869
Product Flow
1977
1747
1526
953 To Passline
948
Computer
Height
109
968
1187
1321
35
Conveyor
Width
600
R481
Rear Door
294
Ventilation
104
Main Power
1056
Ventilation
R472
Front Door
588
