3 Technical data for the machine User manual SIPLACE D4
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
126
3.9.8.4 Tape feeder module 3 x 8 mm S for 0201/0402 components
3

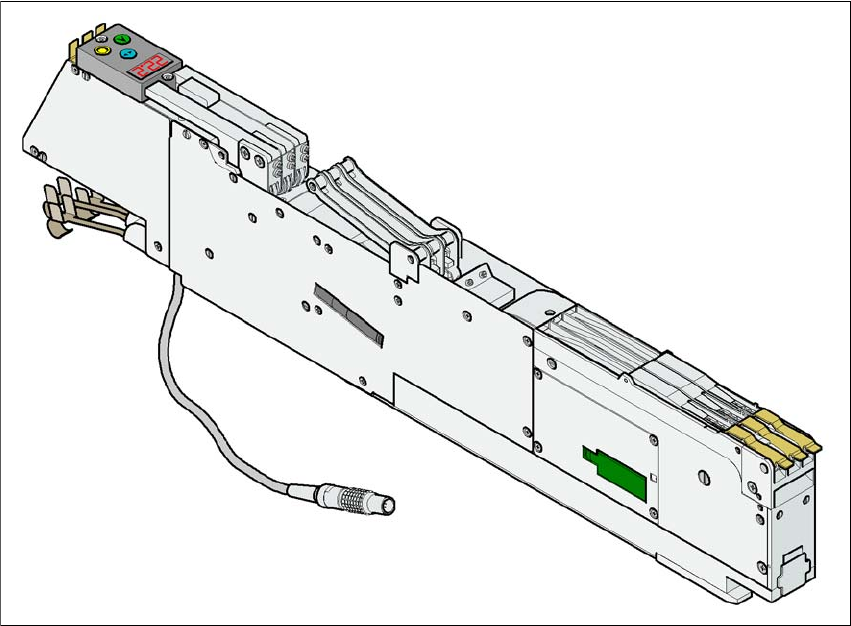

Fig. 3.9 - 4 3 x 8 mm S tape feeder module for 0201/0402 components
Item no. 00141099-xx
Width 30.6 mm
Component range 0201, 0402
Tracks per feeder module 3
Feeder module locations filled 1
Max. number of feeder mod. per machine 4 x 12
Stock of components for 7" reels approx. 10,000
Conveyor increment 2 mm / 4 mm
Tape material Paper tapes
Max. CO height 0.7 mm
Component range 0201/0402
User manual SIPLACE D4 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.9 Feeder modules
127
3.9.8.5 Tape feeder module 3 x 8 mm SL for 0201 and larger components
3

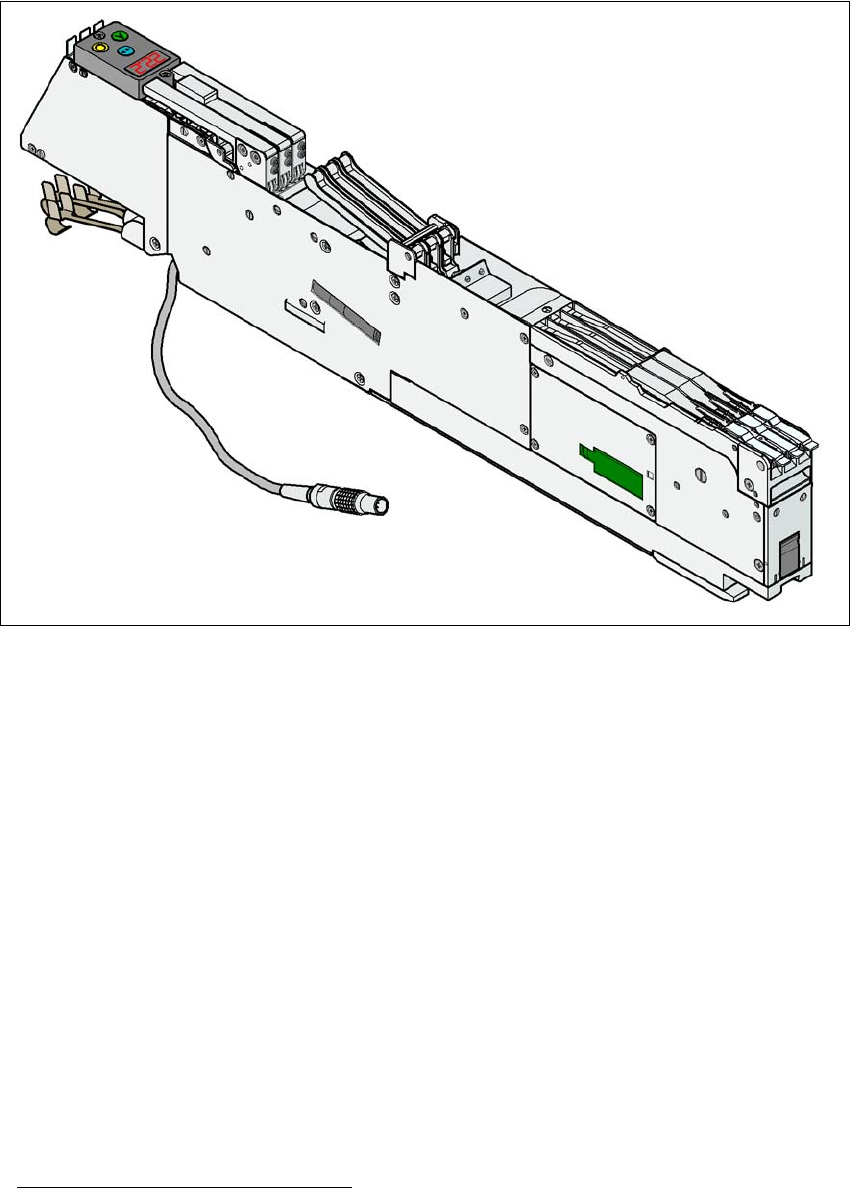

Fig. 3.9 - 5 Tape feeder module 3x8mm SL
a
for 0201 and larger components
3
Item no. 00141088-xx 3
Width 30.6 mm 3
Tracks per feeder module 3 3
Feeder module locations filled 1 3
Max. number of feeder modules per machine 2 x 15 3
Stock of components for 7" reels approx. 10,000 3
Conveyor increment 2 mm / 4 mm / 8 mm 3
Tape material Paper or blister tapes 3
Max. CO height 2.5 mm 3
Component range from 0201 3
2 pick-up positions Front position: component ≥ 1.6 mm
Rear position: component ≤ 1.6 mm 3
3
The new "Feed on Demand" principle has been implemented on this feeder module to reduce the
component rejection rate. The components are not transported to the pick-up position until the
placement head moves to the pick-up position. 3
a) SL = shutterless, that is without any component cover
3 Technical data for the machine User manual SIPLACE D4
3.9 Feeder modules From software version SR.605.xx 07/2008 EN Edition
128
3.9.9 Tape feeder module 12/16 mm S

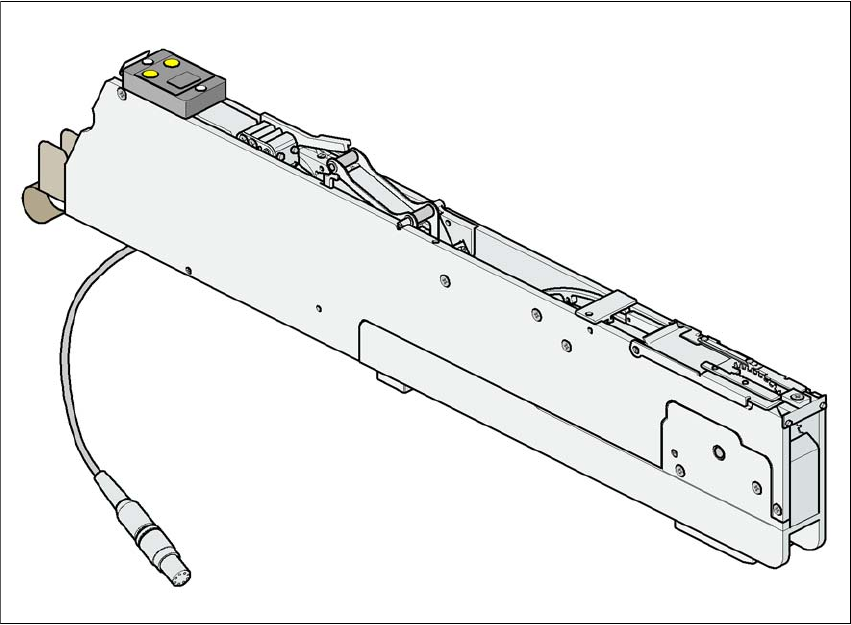

Fig. 3.9 - 6 Tape feeder module 12/16 mm S
Item no. 00141092-xx
Width 30.3 mm
Tracks per feeder module 1
Feeder module locations filled 1
Max. number of feeder mod. per machine 4 x 12
Stock of components for 7" reels approx. 4,000
Conveyor increment from 4 to 24 mm in 4 mm increments
Tape material Paper or blister tapes
Max. CO height 14 mm 3
