3.10.1 Structure
The component trolley essentially consists of the chassis, the component table for holding the
feeder modules, the communication unit, tape reel container and the waste container.

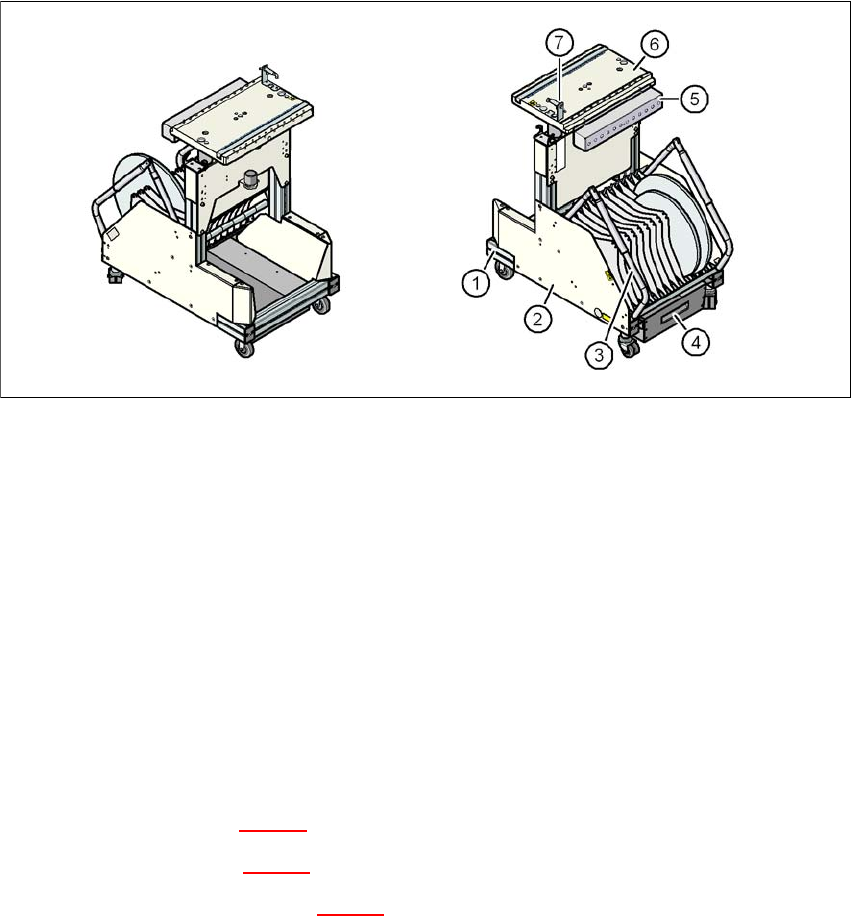

Fig. 3.10 - 3 Component trolley: front and back view
(1) Chassis
(2) Tape reel container
(3) Handle
(4) Waste tape container
(5) Communication unit
(6) Component table
(7) Button for lowering the component table
3.10.2 Description
The chassis (item 1 in Fig. 3.10 - 3) runs smoothly and is easy to maneuver.
The handles (item 3 in Fig. 3.10 - 3
) can be folded up or down.
The component table (item 6 in Fig. 3.10 - 3
) has a capacity of up to 12 locations for 30 mm wide
feeder modules. The feeder modules are mechanically centered on the table using centering pins
and centering balls. The bulk case feeder modules are supplied with compressed air via a sepa-
rate compressed air bar.
The interface is connected to the machine using a cable. The power supply, communication and
EMERGENCY STOP circuits are routed via this cable. The compressed air supply for the bulk
case feeder module and the lifting mechanism also pass via this interface.
User manual SIPLACE D4 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley
137
NOTE ON OPERATIONAL SAFETY 3
All component trolleys must be docked on the machine in order to operate it. If they are not, the
machine stays in EMERGENCY STOP status. The placement process is interrupted.
The communication interface (item 5 in Fig. 3.10 - 3
, page 136) supplies the necessary voltages
and control signals to the feeder modules.
The tape reel container (item 4 in Fig. 3.10 - 3
, page 136) holds tape reels up to 19" (483 mm).
The pull-out waste tape container (item 4 in Fig. 3.10 - 3
, page 136) can be found beneath the
chassis. The cut waste tape travel down a chute into the waste container, which must be regularly
emptied.
3.10.3 Technical data
3
3
Length
Length with handle folded up
Width
711 mm
871 mm
475 mm
Height of bottom edge of table bed for
830 mm PCB conveyor height
900 mm PCB conveyor height
930 mm PCB conveyor height
950 mm PCB conveyor height
680 mm
750 mm
780 mm
800 mm
PCB conveyor height 830 mm ± 15 mm (standard)
900 mm ± 15 mm (option)
930 mm ± 15 mm (option)
950 mm ± 15 mm (SMEMA option)
Weight
without feeder modules
with feeder modules at all locations
75 kg
130 kg
Reel diameter
standard
maximum
up to 432 mm (17")
483 mm (19")
Locations for feeder modules max. 12
Changeover time less than 1 min.
3 Technical data for the machine User manual SIPLACE D4
3.10 Component trolley From software version SR.605.xx 07/2008 EN Edition
138
3.10.4 Tape container
The tape container can hold reels up to 19" in diameter. You should use spindles to process reels
of 15" diameter or more. The use of separating plates is described in Section 5.5.4
on page 206.
PLEASE NOTE 3
For optimum operation, we recommend the use of spindles for 15" diameter or more.
3
Fig. 3.10 - 4 Component trolley with tape container
(1) Component trolley
(2) Tape container
(3) Waste tape container
(4) Spindle (enlarged)
(5) Position of the spindles
(6) Separating plate
