User manual SIPLACE D4 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley
143
3.10.7.2 Adapter plate assembly position for 830 mm PCB conveyor height
PLEASE NOTE
The procedure for setting the height of the component trolley is described in Section 4.4
, from
page 180.
3

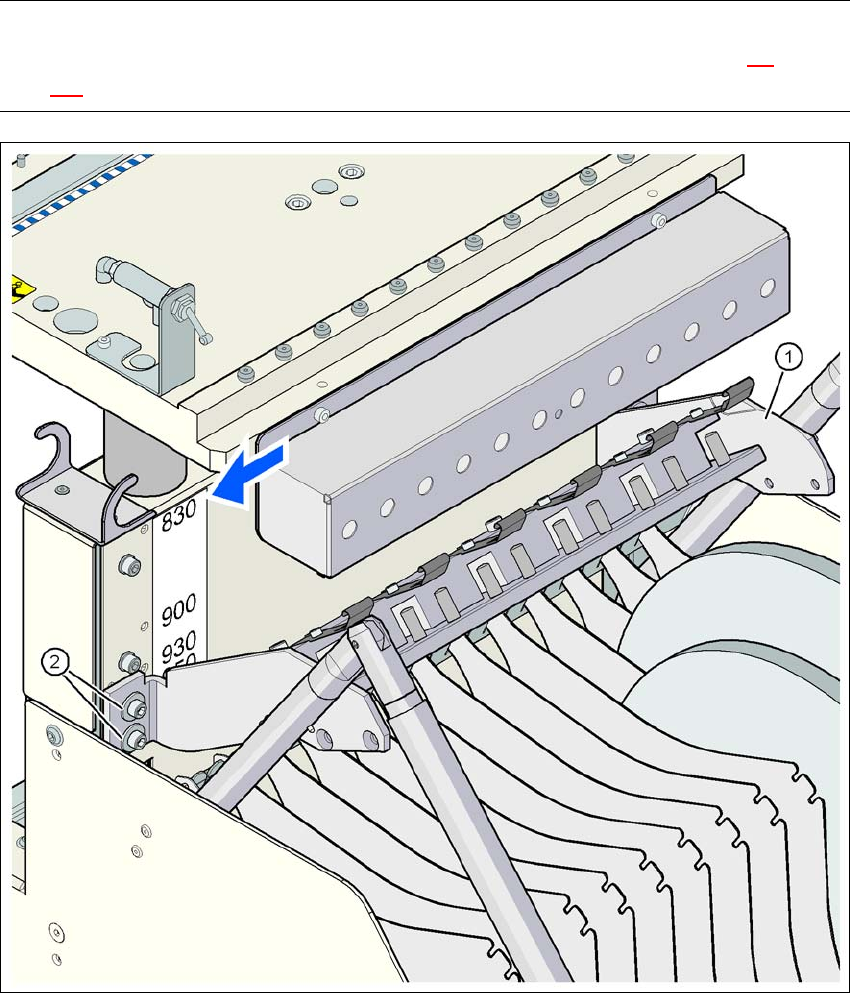

Fig. 3.10 - 8 Adapter plate assembly position for 830 mm PCB conveyor height
(1) Adapter plate
(2) Hexagon socket head screw, M6x20 with washer, 4x
3 Technical data for the machine User manual SIPLACE D4
3.10 Component trolley From software version SR.605.xx 07/2008 EN Edition
144
3.10.7.3 Adapter plate assembly position for 900 mm PCB conveyor height
PLEASE NOTE
The procedure for setting the height of the component trolley is described in Section 4.4
, from
page 180.
3
Fig. 3.10 - 9 Adapter plate assembly position for 900 mm PCB conveyor height
(1) Adapter plate
(2) Hexagon socket head screw, M6x20 with washer, 4x
User manual SIPLACE D4 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.10 Component trolley
145
3.10.7.4 Adapter plate assembly position for 930 mm PCB conveyor height
PLEASE NOTE
The procedure for setting the height of the component trolley is described in Section 4.4
, from
page 180.
3
Fig. 3.10 - 10 Adapter plate assembly position for 930 mm PCB conveyor height
(1) Adapter plate
(2) Hexagon socket head screw, M6x20 with washer, 4x
