User manual SIPLACE D4 4 Setting up and commissioning From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine 173 4.3.7.3 Machine foot clearances a nd the st ationary right conveyor edge for the PCB…
4 Setting up and commissioning User manual SIPLACE D4
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
172
4.3.7.2 Machine foot clearances and the stationary left conveyor edge for the
PCB single conveyor
4
Fig. 4.3 - 4 Machine foot clearances and the stationary left conveyor edge for the PCB single conveyor
User manual SIPLACE D4 4 Setting up and commissioning
From software version SR.605.xx 07/2008 EN Edition 4.3 Setting up the machine
173
4.3.7.3 Machine foot clearances and the stationary right conveyor edge for the
PCB dual conveyor
4

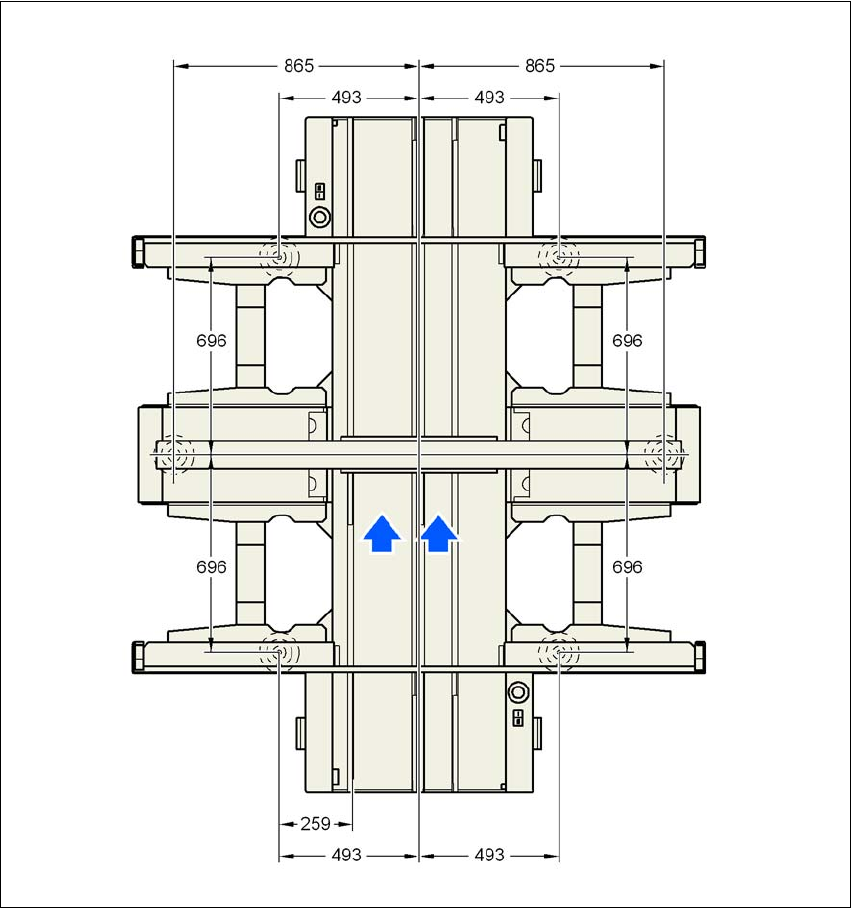

Fig. 4.3 - 5 Machine foot clearances and the stationary right conveyor edge for the PCB dual conveyor
4 Setting up and commissioning User manual SIPLACE D4
4.3 Setting up the machine From software version SR.605.xx 07/2008 EN Edition
174
4.3.7.4 Machine foot clearances and the stationary left conveyor edge for the
PCB dual conveyor
4

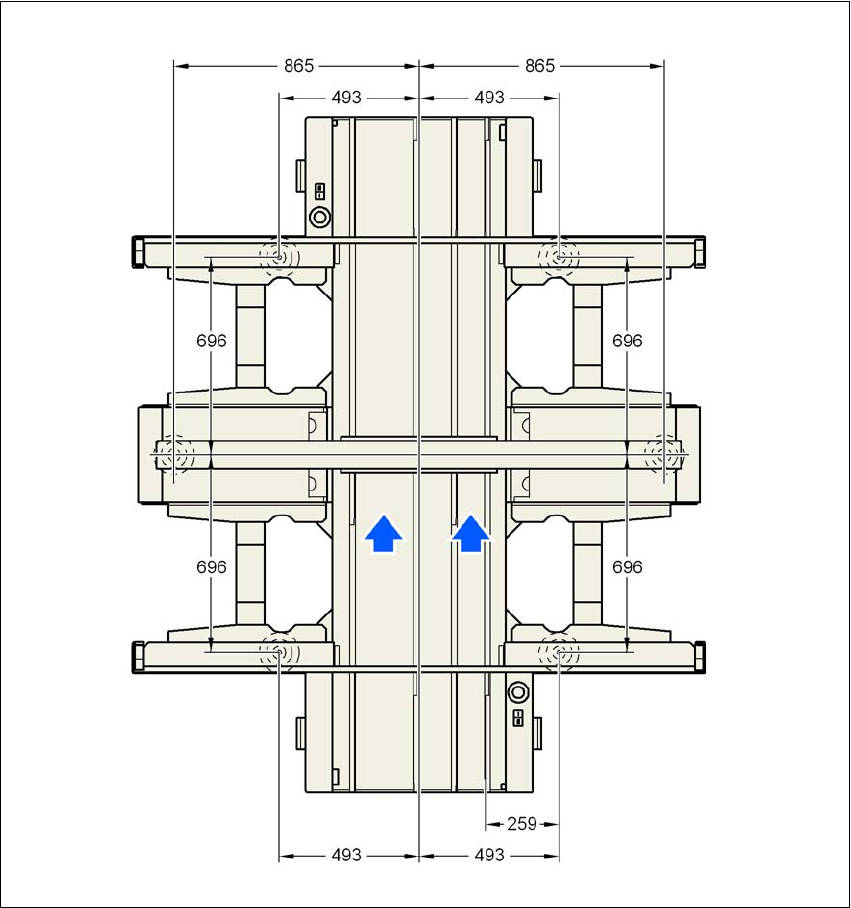

Fig. 4.3 - 6 Machine foot clearances and the stationary left conveyor edge for the PCB dual conveyor
