User manual SIPLACE D4 5 Tasks for the operating personnel From software version SR.605.xx 07/2008 EN Edition 5.10 Docking the component trolley in or out 219 5.10.2 Docking in the component trolley PLEASE NOTE 5 Shorten…
5 Tasks for the operating personnel User manual SIPLACE D4
5.10 Docking the component trolley in or out From software version SR.605.xx 07/2008 EN Edition
218
5

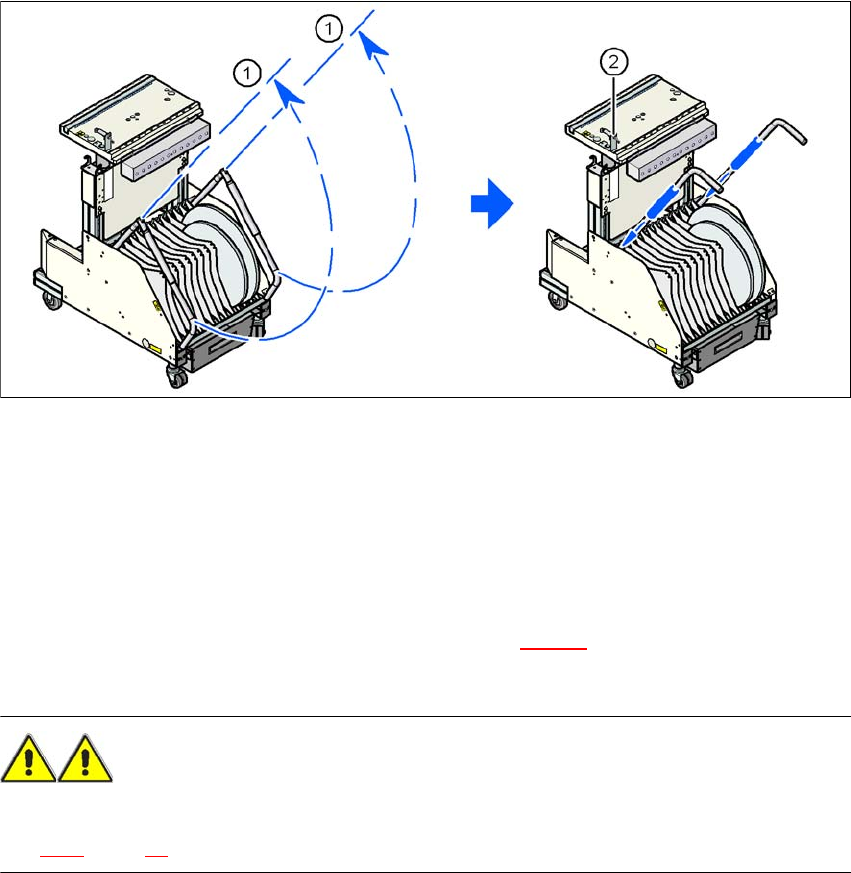

Fig. 5.10 - 2 Component trolley - swivel handles up to push
5
(1) Handle
(2) Button for lowering the component table
→ With both hands on the handles, pull the component trolley out of the machine.
→ Turn the switch on the component table (item 4 in Fig. 5.10 - 2
) down. The component table
is lowered.
WARNING 5
→ Please follow the safety instructions for moving the component trolley described in Section
2.5.4, page 53.
User manual SIPLACE D4 5 Tasks for the operating personnel
From software version SR.605.xx 07/2008 EN Edition 5.10 Docking the component trolley in or out
219
5.10.2 Docking in the component trolley
PLEASE NOTE 5
Shorten the component tapes on the front end of the S feeder modules to approximately 1 cm
before you dock in the component trolley.
CAUTION 5
Check that the placement head is outside the range of the component trolley.
→ Make sure that the left and right contact surfaces (item 7 in Fig. 5.10 - 1
, page 217) for the
component table bed is clean.
→ Check that the contact surfaces on the underside of the component table bed are clean.
→ CAREFULLY push the component trolley into the machine.
→ Plug the connecting cable of the component trolley into the socket (item 2 in Fig. 5.10 - 1
,
page 217
) on the machine.
→ Open the cover over the push-button used to raise and lower the component table bed (item
1 in Fig. 5.10 - 1
, page 217).
→ Turn the switch on the component table (item 4 in Fig. 5.10 - 1
, page 217) down.
→ Press the button until the component table bed has reached the upper final position.
→ Carefully push the component trolley into machine as far as the stop.
→ Check that the centering holes in the component table bed lie precisely over the centering
pins of the machine (item 8 in Fig. 5.10 - 1
, page 217).
WARNING DANGER OF CRUSHING 5
When lowering the component table bed, never reach into the gap between the feeders and
the used tape channel. 5
→ Press the button for lowering the component table bed (item 4 in Fig. 5.10 - 1
, page 217).
→ Ensure that the centering pins engage in the centering holes in the component table bed and
that the component table bed is fully lowered.
→ Close the cover over the push-button (item 1 in Fig. 5.10 - 1
, page 217).
→ Close the protective cover.
5 Tasks for the operating personnel User manual SIPLACE D4
5.10 Docking the component trolley in or out From software version SR.605.xx 07/2008 EN Edition
220
→ Press the start button to start the machine.
→ Push the sleeve (item 1 in Fig. 5.10 - 3
, page 220) up using both handles and swivel the han-
dle down (item 2 in Fig. 5.10 - 3
, page 220).
5
Fig. 5.10 - 3 Component trolley - swivel handles down
(1) Push sleeve up
(2) Fold handle down
