6 Station extensions User manual SIPLACE D4
6.2 PCB barcode scanner From software version SR.605.xx 07/2008 EN Edition
234
6.2.6.4 Positioning along the width of the PCB -
Scanning beam across the direction of travel
6

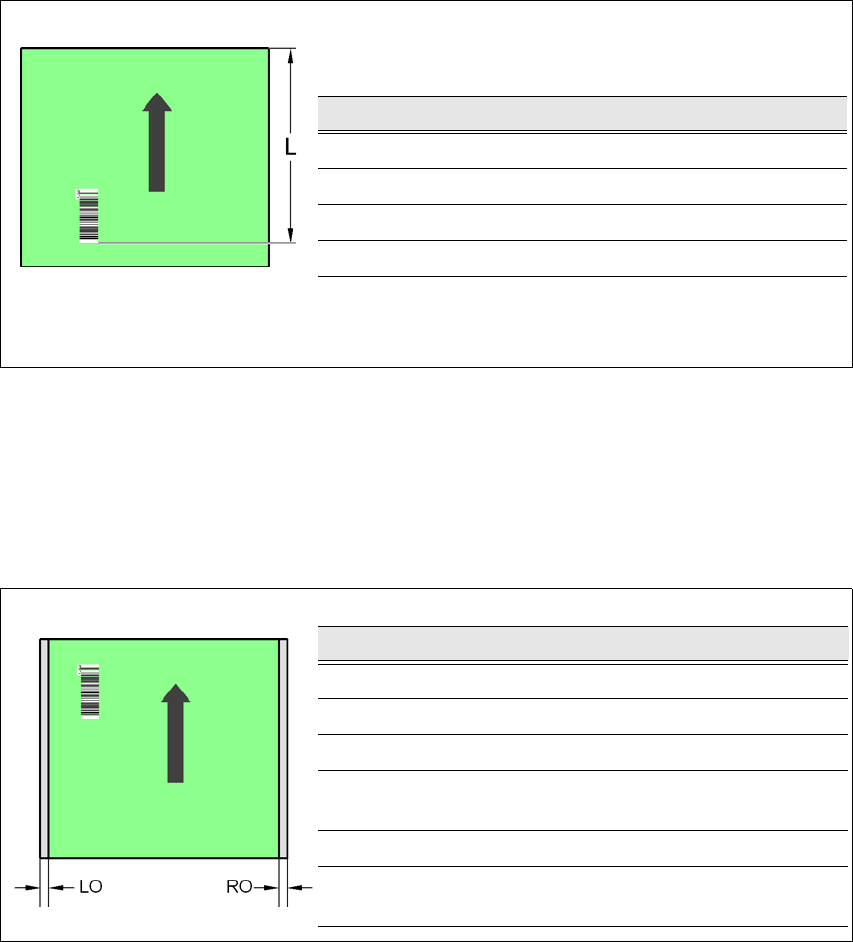

Fig. 6.2 - 7 Positioning along the width of the PCB - Scanning beam across the direction of travel
6.2.6.5 Positioning along the width of the PCB -
Scanning beam along the direction of travel,
PCB barcode scanner 1D topside
6
Fig. 6.2 - 8 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D topside
PCB barcode scanner LQ [mm] RQ [mm]
2D topside 3 3
1D topside 3 3
2D underside 5 5
1D underside 5 5
PCB dimensions/conveyor LO [mm] RO [mm]
460 mm / SC 3 20
508 mm / SC 3 44
216 mm / DC1 3 24
242 mm / DC1
380 mm / SM1
358
216 mm / DC2 3 3
242 mm / DC2
380 mm / SM2
33
User manual SIPLACE D4 6 Station extensions
From software version SR.605.xx 07/2008 EN Edition 6.2 PCB barcode scanner
235
6.2.6.6 Positioning along the width of the PCB -
Scanning beam along the direction of travel,
PCB barcode scanner 1D underside
6

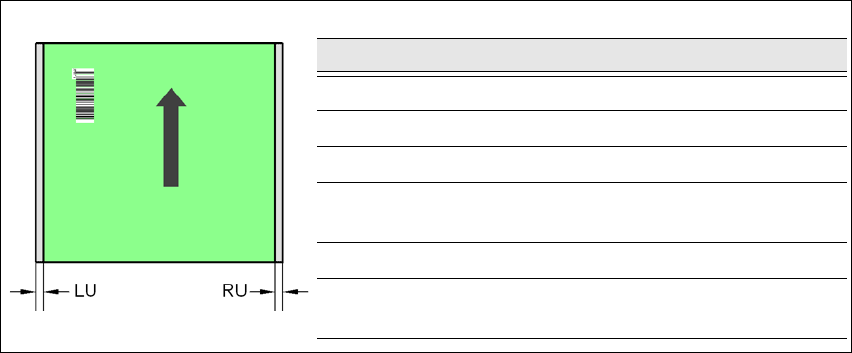

Fig. 6.2 - 9 Positioning along the width of the PCB - Scanning beam along the direction of travel
PCB barcode scanner 1D underside
SC Single conveyor
DC1 Dual conveyor, track 1
DC2 Dual conveyor, track 2
SM1 Dual conveyor in Single conveyor mode, track 1
SM2 Dual conveyor in Single conveyor mode, track 2
PCB dimensions/conveyor LU [mm] RU [mm]
460 mm / SC 20 3
508 mm / SC 44 3
216 mm / DC1 3 3
242 mm / DC1
380 mm / SM1
33
216 mm / DC2 24 3
242 mm / DC2
380 mm / SM2
58 3
6 Station extensions User manual SIPLACE D4
6.3 PCB alignment From software version SR.605.xx 07/2008 EN Edition
236
6.3 PCB alignment
Item no. 00119425-xx PCB alignment for single conveyor
Item no. 00119426-xx PCB alignment for dual conveyor
6.3.1 Description
PCBs to be processed sometimes have a length to width ratio of 1:2 or worse. This means that
the shorter side of the PCB points in the direction of travel. During travel, such PCBs may twist
slightly and, as a result, the fiducials no longer lie within the PCB camera's search window. In this
case, the "PCB alignment" option ensures that these PCBs are realigned precisely at the stopping
position.
If PCBs with recesses in the direction of travel are processed, this may result in different process-
ing positions on machines that monitor this position with laser light barriers (X-series, D-series).
The "PCB alignment" option ensures that the PCBs are stopped at the required position on the
PCB conveyors. The "PCB alignment" option is available for both single and dual conveyors.
6

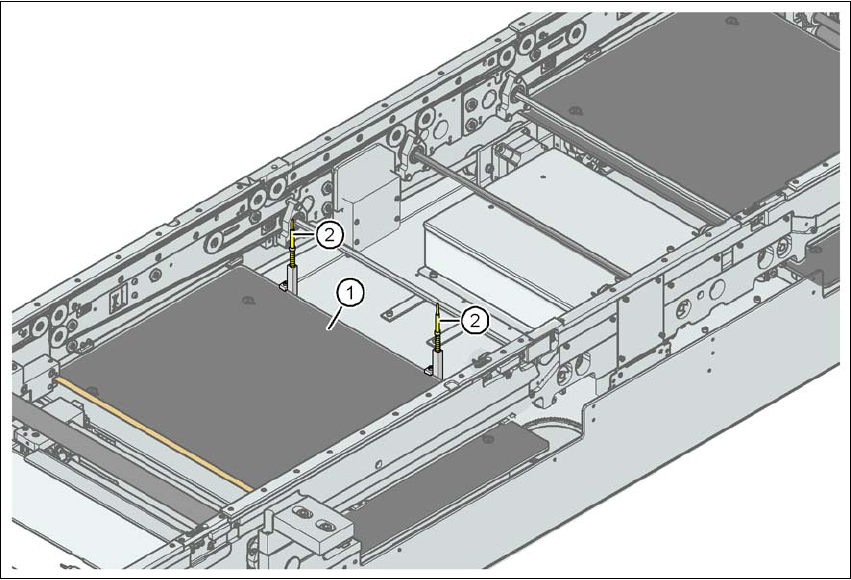

Fig. 6.3 - 1 PCB alignment
(1) Lifting table
(2) PCB stop
