2 Operational safety User manual SIPLACE D4
2.1 Safety instructions From software version SR.605.xx 07/2008 EN Edition
34
→ Always wear suitable work and protective clothing (e.g. gloves and safety shoes, etc) when
handling the magnet track.
→ Only suitably trained SIPLACE engineers may carry out assembly work and other tasks when
replacing the magnet track.
→ Always keep at least two wedges (around 10° to 15°) made from a solid, non-magnetic ma-
terial (e.g. aluminium) and a non-magnetic hammer (approx. 2 to 3 kg) ready for emergencies
These tools will be needed in an emergency to detach parts that are magnetically stuck to the
magnet track and possibly to release parts of the body caught between the two (fingers, hand,
foot). Never place the coil assembly of an iron-core motor directly on the magnet track.
→ Electronic devices and measuring instruments may be damaged or destroyed by powerful
magnetic fields. Do not place devices that contain magnetic components in the vicinity of
computers, monitors or magnetic data media (e.g.hard disks, credit cards, audio or video
tapes, etc).
→ Maintain a distance of at least 45 cm between individual magnet tracks or between a magnet
track and other magnetic surfaces.
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
35
2.2 Warning labels
2.2.1 Warning labels on the machine
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.
2

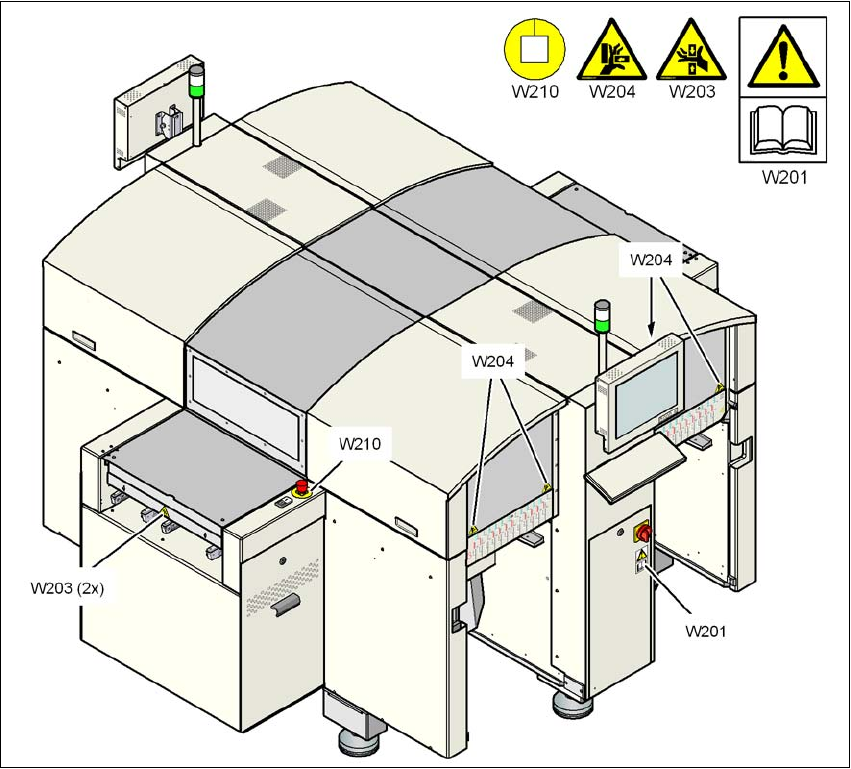

Fig. 2.2 - 1 Warning labels W201, W203, W204 and W210 on the machine - part 1
Pos. W201, item no. 03009338-01
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W210, item no. 03009350-01
2 Operational safety User manual SIPLACE D4
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
36
2
Fig. 2.2 - 2 Warning labels W203, W204 and W210 on the machine - part 2
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W210, item no. 03009350-01
WARNING 2
– Do not use abrasive cleaners or solvents for cleaning warning labels.
– Replace any damaged or illegible warning labels.
