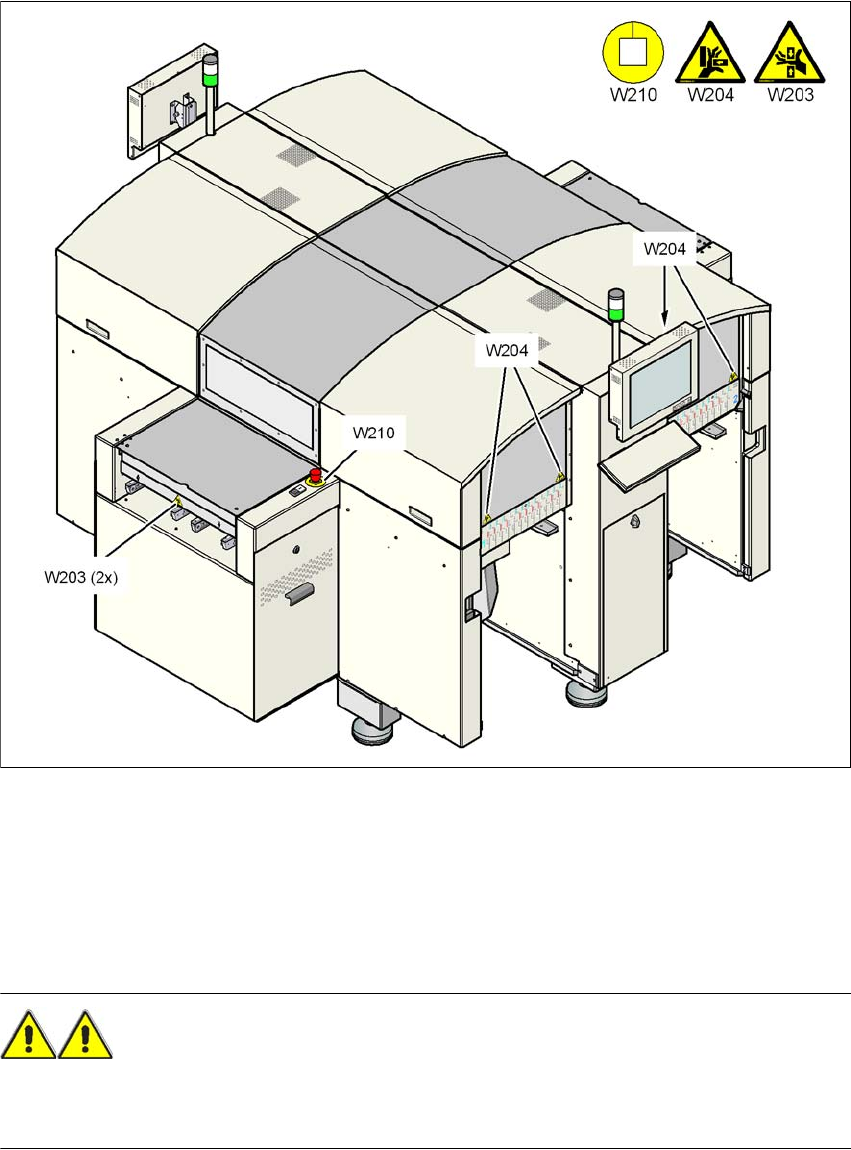

Fig. 2.2 - 2 Warning labels W203, W204 and W210 on the machine - part 2
Pos. W203, item no. 03009342-01
Pos. W204, item no. 03009343-01
Pos. W210, item no. 03009350-01
WARNING 2
– Do not use abrasive cleaners or solvents for cleaning warning labels.
– Replace any damaged or illegible warning labels.
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
37
2.2.1.1 Warning label W201
2
Pos. W201 in Fig. 2.2 - 1 (number per machine : 1)
2.2.1.2 Warning label W203
2
Pos. W203 in Figs. 2.2 - 1 and 2.2 - 2 (number per machine : 4)
2.2.1.3 Warning label W204
2
Pos. W204 in Figs. 2.2 - 1 and 2.2 - 2 (number per machine : 8)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the
operator being familiar with the user manual and safety
instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and
hands.
Do not reach into the machine while it is running
2 Operational safety User manual SIPLACE D4
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
38
2.2.1.4 Warning label W210
2
Pos. W210 in Figs. 2.2 - 1 and 2.2 - 2, item no. 03009350-01 (number per machine: 2)
2.2.2 Warning labels for the linear drives
Fig. 2.2 - 3 Warning label W202 for the Y axis linear drives
Pos. W202, item no. 03009341-01
2
2
2
2
2
2
Warning label on the EMERGENCY STOP button
