2 Operational safety User manual SIPLACE D4
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
38
2.2.1.4 Warning label W210
2
Pos. W210 in Figs. 2.2 - 1 and 2.2 - 2, item no. 03009350-01 (number per machine: 2)
2.2.2 Warning labels for the linear drives

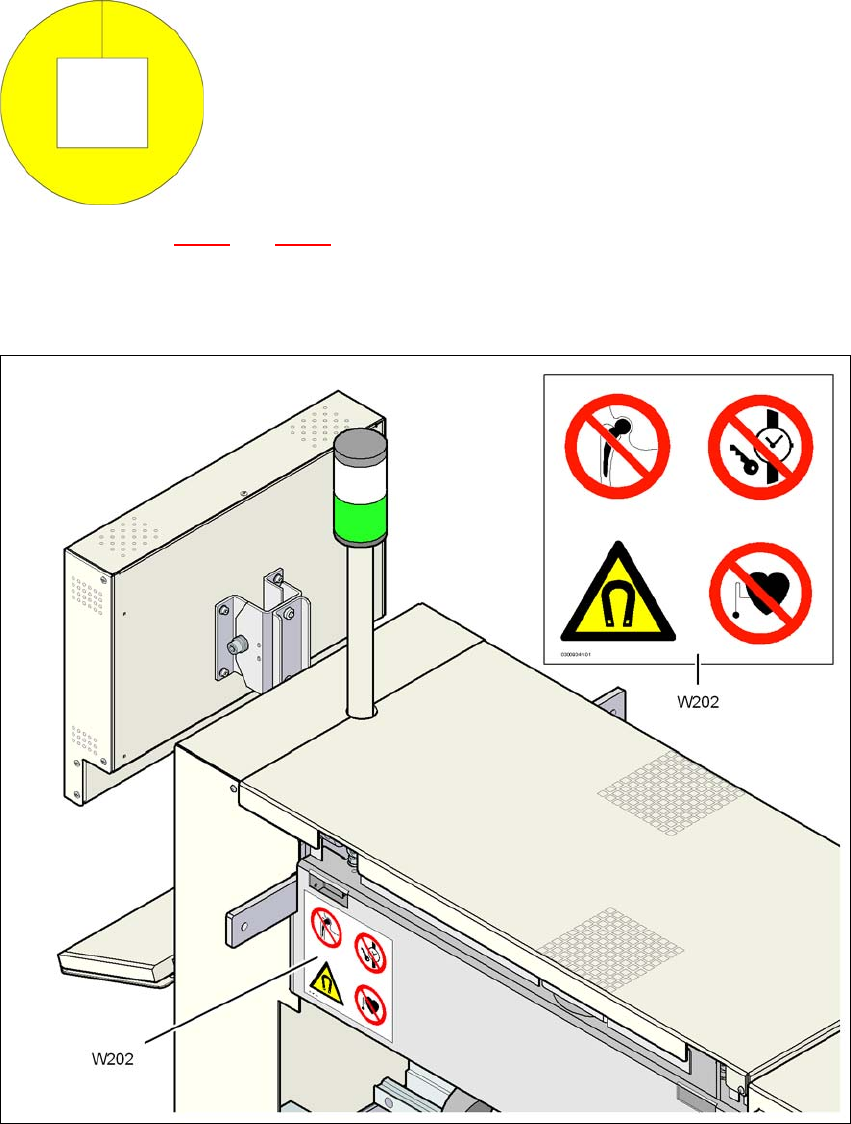

Fig. 2.2 - 3 Warning label W202 for the Y axis linear drives
Pos. W202, item no. 03009341-01
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.2 Warning labels
39
2
Pos. W202 in Fig. 2.2 - 3, item no. 03009341-01 (number per machine: 4)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
2 Operational safety User manual SIPLACE D4
2.2 Warning labels From software version SR.605.xx 07/2008 EN Edition
40
2.2.3 Warning labels on tape cutter and used tape chute
2
Pos. W205 in Figs. 2.2 - 4 and 2.2 - 5, item no. 03009344-01
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter.
2.2.3.1 Warning label W205 on the used tape chute
2
Fig. 2.2 - 4 Warning label W205 on the used tape chute
Pos. W205, item no. 03009344-01 on the used tape chute (number per machine: 8)
The position of the used tape chute is shown in Fig. 2.2 - 5
, item 4 on page 41.
