2 Operational safety User manual SIPLACE D4 2.4 Safety instructions for transporting the machine From software version SR.605.xx 07/2008 EN Edition 50 2.3.3 Laser class 2 The following modules are assigned to laser class…
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.3 Laser classification
49
2.3 Laser classification
2.3.1 Laser class 1
2.3.1.1 Classification of the whole machine
2
PLEASE NOTE: 2
Modules in laser classes 1 and 1M are not identified.
2.3.1.2 Classification of the camera systems
2
2.3.2 Laser class 1M
Do not look directly at this with optical instruments!
2
2
All installed camera systems and the whole machine when ready for
operation are assigned to laser class 1.
The laser classes are determined according to DIN EN 60825-1:2001.
2
The following camera systems are assigned to laser class 1:
– PCB camera, type 34, digital
2
The following camera systems are assigned to laser class 1M:
– C&P CO camera, type 28, 18 x 18 on the 12-segment Collect&Place head
– C&P CO camera, type 29, 27 x 27 on the 12-segment Collect&Place head
– C&P CO camera, type 38, 16 x 16 on the 12-segment Collect&Place head
2 Operational safety User manual SIPLACE D4
2.4 Safety instructions for transporting the machine From software version SR.605.xx 07/2008 EN Edition
50
2.3.3 Laser class 2
The following modules are assigned to laser class 2:
– Laser light barrier, placement area 1 in the PCB conveyor
– Laser light barrier, placement area 2 in the PCB conveyor
– PCB barcode scanner
2
2.4 Safety instructions for transporting the machine
2

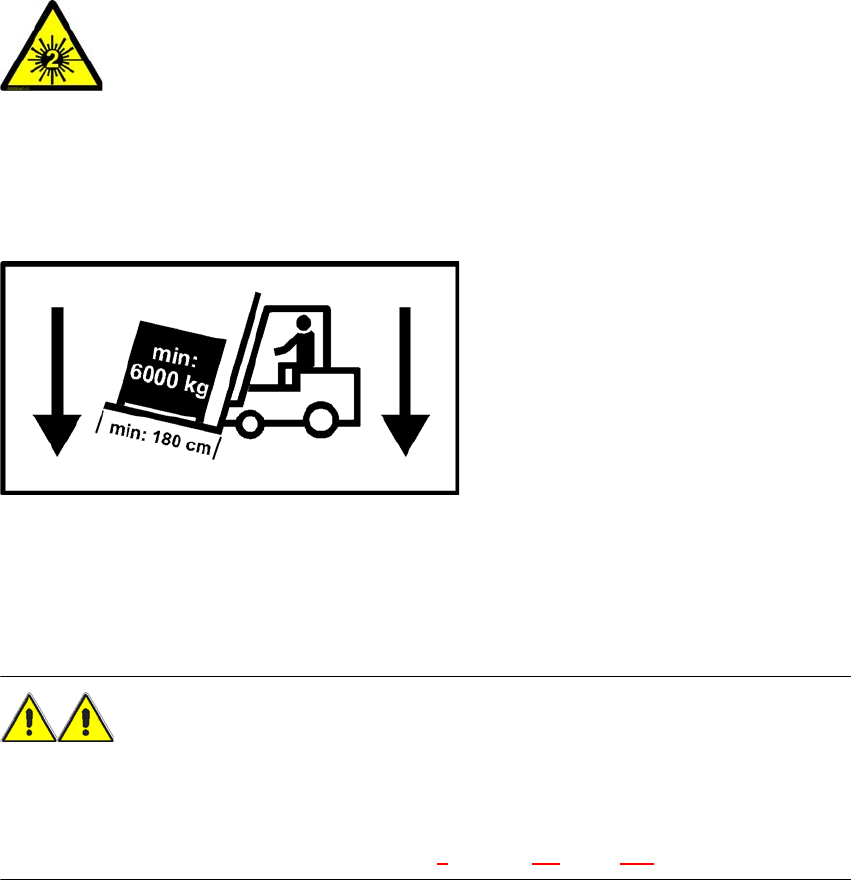

Use a fork-lift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm 2
WARNING
RISK OF TIPPING 2
If the required specification cannot be applied to the fork-lift, there is a risk that the fork-lift will tip
over when carrying the machine.
Transporting the machine is described in chapter 4, Section 4.1, page 147.
2
Laser radiation
Do not look into beam!
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.5 Safety instructions for operating the machine
51
2.5 Safety instructions for operating the machine
2.5.1 Safety instructions for closing the protective covers
To prevent any risk of injury when the protective covers on the machine are closed, the owner
must instruct his operators to use the protective covers exactly as specified in the following in-
structions.
CAUTION
RISK OF CRUSHING HANDS
IF THE PROTECTIVE COVERS ARE NOT CLOSED CORRECTLY 2
2

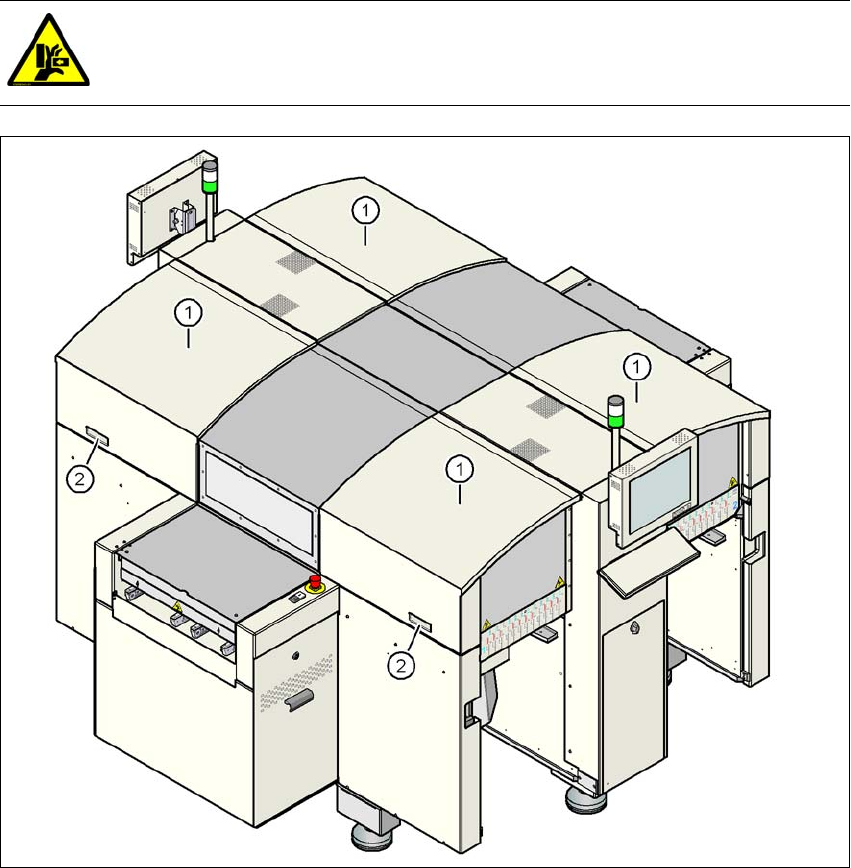

Fig. 2.5 - 1 Safety instructions for closing the protective covers
(1) Protective covers
(2) Recessed grips
