2 Operational safety User manual SIPLACE D4 2.6 Safety equipment From software version SR.605.xx 07/2008 EN Edition 58 2.6 Safety equipment 2.6.1 Protective covers 2 Fig. 2.6 - 1 Protective covers (1) Protective covers (…
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.5 Safety instructions for operating the machine
57
2.5.8 Safety instructions for the tape cutter
2

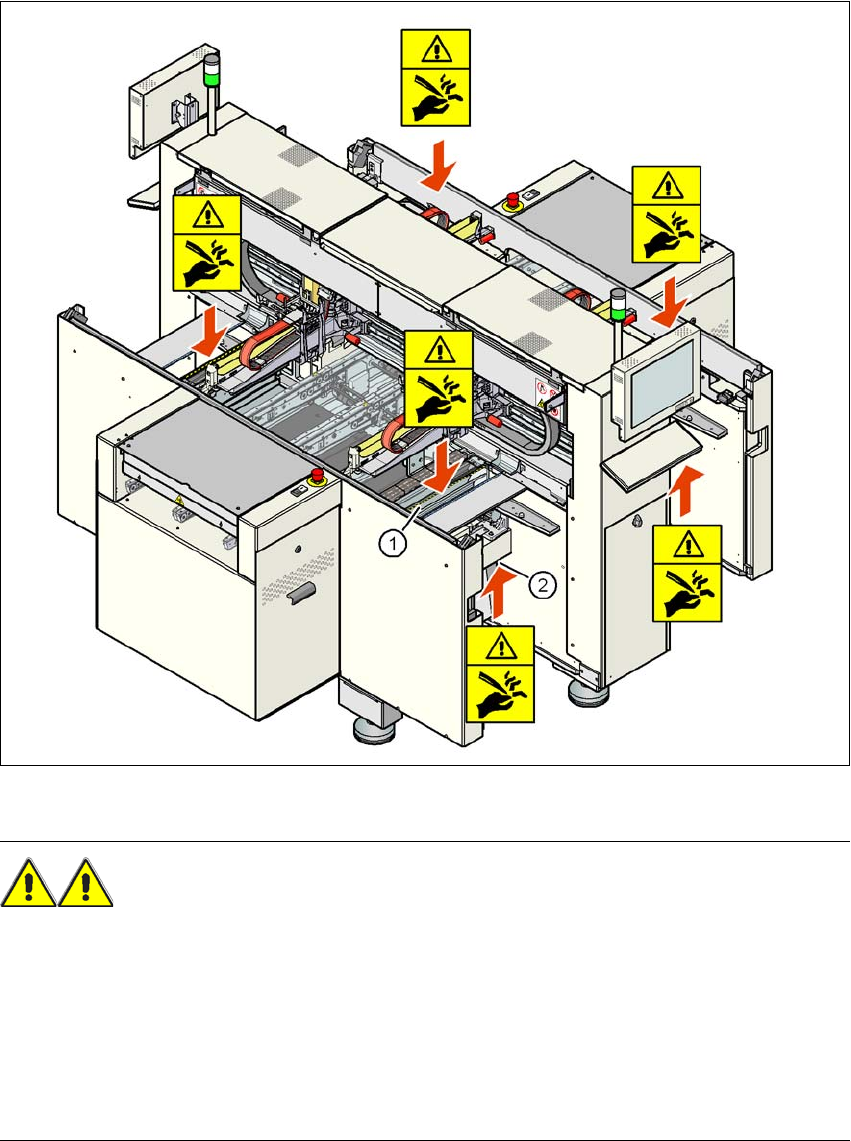

Fig. 2.5 - 5 Safety instructions for the tape cutter
WARNING RISK OF CUTTING! 2
→ Never reach down into the used tape channel (item 1) from above with bare hands, even if
the machine is switched off.
→ Similarly, even when the machine is switched off, do not reach up from below with bare hands
into the ejection opening of the tape cutter (item 2), e.g. to remove waste used tape.
→ To remove waste used tape, it is essential to switch the machine off first and put on very sub-
stantial protective gloves, as the tape cutter bars are extremely sharp.
2 Operational safety User manual SIPLACE D4
2.6 Safety equipment From software version SR.605.xx 07/2008 EN Edition
58
2.6 Safety equipment
2.6.1 Protective covers
2

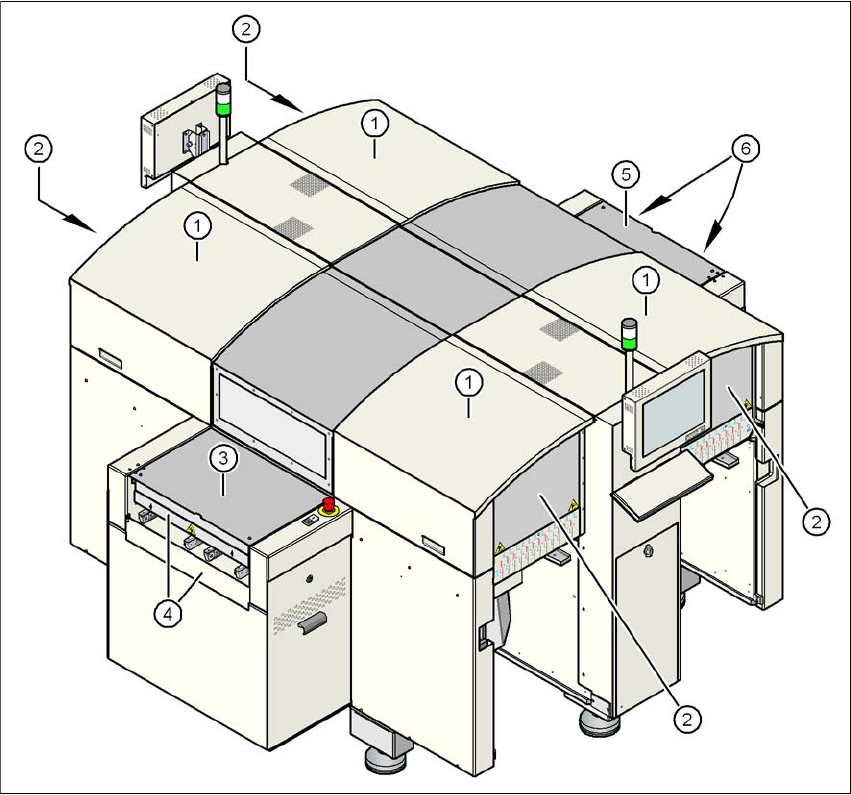

Fig. 2.6 - 1 Protective covers
(1) Protective covers
(2) Safety panels
(3) Cover flap on the input belt
(4) Hand guard on the input belt
(5) Cover flap on the output belt
(6) Hand guard on the output belt
User manual SIPLACE D4 2 Operational safety
From software version SR.605.xx 07/2008 EN Edition 2.6 Safety equipment
59
The traveling range of the gantries has four protective covers that can be swung upwards. There
are side screens to prevent access to the inside of the machine from the side. Access to the PCB
conveyor is protected by covers, which can be pivoted upwards, over the input and output belts
and guards on both belts.
Function 2
The main power supply to the gantry axes is interrupted immediately if one of the protective covers
is swiveled up or one of the cover flaps on the PCB conveyor is raised. The gantry axes stop mov-
ing. The message "Close cover" is displayed on the screen.
→ Close the protective covers and press one of the start buttons to continue placement.
2

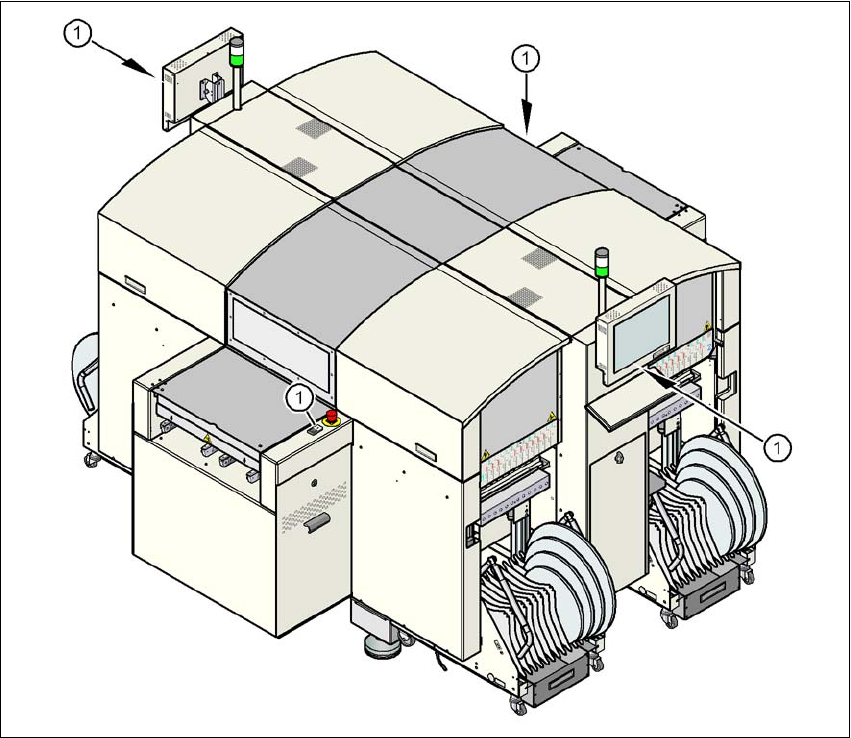

Fig. 2.6 - 2 Position of the start button (white) on the machine
(1) Start button (white) on the machine
