3 Technical data for the machine User manual SIPLACE D4
3.3 Dimensions and weight From software version SR.605.xx 07/2008 EN Edition
90
3.3 Dimensions and weight
3.3.1 Technical data - dimensions and weight
Length
With both extension kits
With one extension kit
With no extension kits
2380 mm
1960 mm
1540 mm
Width of basic machine
With CO trolley
Incl. monitors
With keyboards
2416 mm
2466 mm
2491 mm
Height of the machine
With indicator lamp
With folded-up protective covers
max. 1813 mm
1850 mm (PCB conveyor height: 830 mm)
1920 mm (PCB conveyor height: 900 mm)
1950 mm (PCB conveyor height: 930 mm)
1973 mm (PCB conveyor height: 950 mm)
Machine ground clearance 110 mm (PCB conveyor height: 830 mm)
180 mm (PCB conveyor height: 900 mm)
210 mm (PCB conveyor height: 930 mm)
233 mm (PCB conveyor height: 950 mm)
Weight
Basic machine with 4 component trolleys
Full configuration with feeder modules
3419 kg
3850 kg
Footprint 5.93 m²
Load per unit area
a
a) The load per unit area calculation included an additional working space of 0.5 m on each side of the
machine. Further data available on request.
5.9 kN/m²
Number of machine feet 6
Maximum noise emissions 74 dB (A)
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 to 75% (but no higher than 45% on
average in order to prevent any possibility
of condensation on the machine).
User manual SIPLACE D4 3 Technical data for the machine
From software version SR.605.xx 07/2008 EN Edition 3.3 Dimensions and weight
91
3.3.2 Dimensions of the machine
3
3
Fig. 3.3 - 1 Dimensions of the machine (basic machine) in millimeters
3
3 Technical data for the machine User manual SIPLACE D4
3.3 Dimensions and weight From software version SR.605.xx 07/2008 EN Edition
92
3.3.3 Height of the folded up protective cover
3

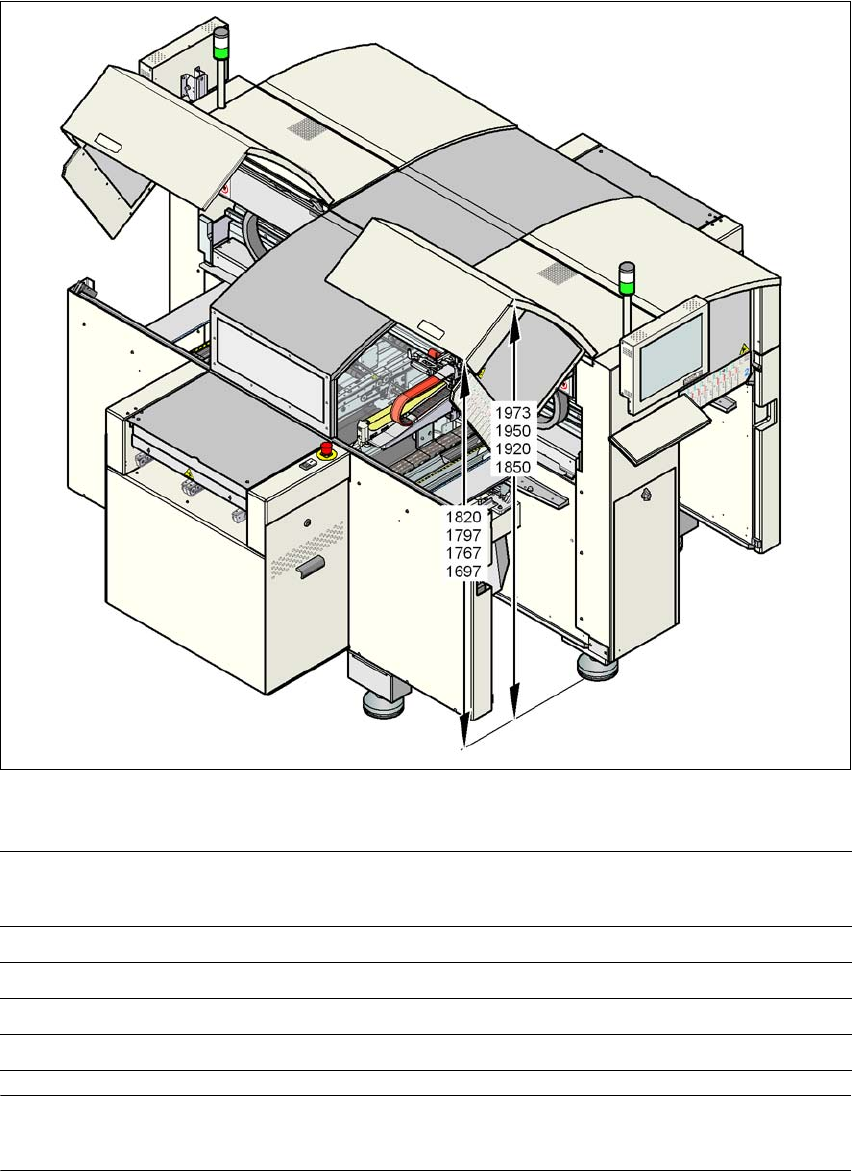

Fig. 3.3 - 2 Height of the folded-up protective cover - dimensions in millimeters
3
PLEASE NOTE 3
One can optionally increase the opening angle of the protective covers using other gas springs.
PCB conveyor height Height of bottom edge of the
lifted-up protective cover
Height of top edge of the lifted-
up protective cover
950 mm 1820 1973
930 mm 1797 1950
900 mm 1767 1920
830 mm 1697 1850
