3.8 HDD / FDD Operation Shown below are the files created in the first and second floppy disks . FD File Name Remarks • “ xx ” in file names show the first digits representing the improved versions of CPU 1 and CPU 2 . a…

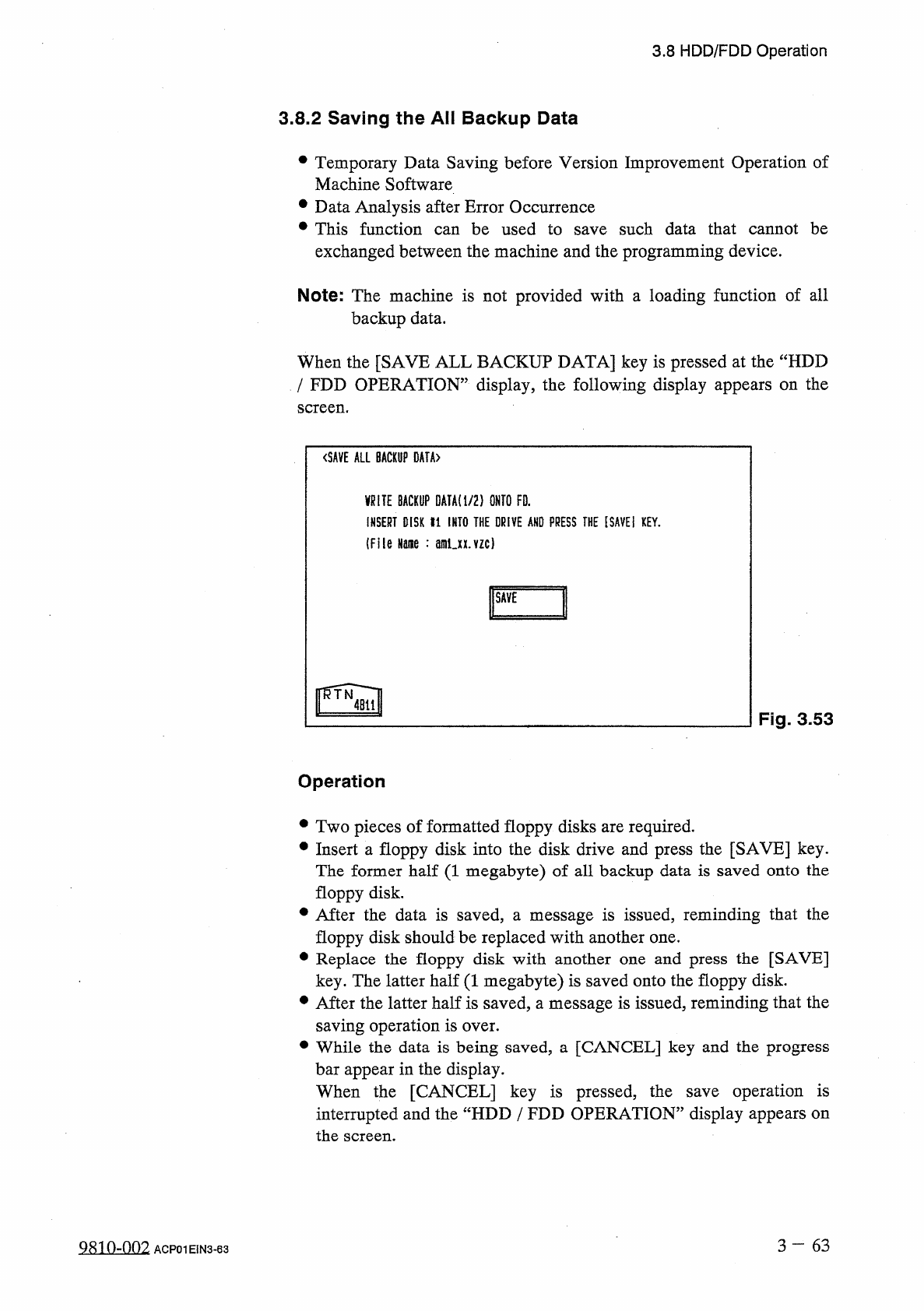

3.8
HDD
/
FDD
Operation
3.8
.
2
Saving
the
AH
Backup
Data
•
Temporary
Data
Saving
before
Version
Improvement
Operation
of
Machine
Software
•
Data
Analysis
after
Error
Occurrence
•
This
function
can
be
used
to
save
such
data
that
cannot
be
exchanged
between
the
machine
and
the
programming
device
.
Note
:
The
machine
is
not
provided
with
a
loading
function
of
all
backup
data
.
When
the
[
SAVE
ALL
BACKUP
DATA
]
key
is
pressed
at
the
“
HDD
/
FDD
OPERATION
”
display
,
the
following
display
appears
on
the
screen
.
<
SAVE
ALL
BACKUP
DATA
〉
_
BACKUP
DATA
!
i
/
2
)
ONTO
FD
.
INSERT
DISK
«
1
INTO
THE
DRIVE
ANO
PRESS
THE
[
SAVEI
KEY
.
(
File
Name
:
amux
.
vzc
)
F
~
1
Fig
.
3.53
Operation
•
Two
pieces
of
formatted
floppy
disks
are
required
.
•
Insert
a
floppy
disk
into
the
disk
drive
and
press
the
[
SAVE
]
key
.
The
former
half
(
1
megabyte
)
of
all
backup
data
is
saved
onto
the
floppy
disk
.
•
After
the
data
is
saved
,
a
message
is
issued
,
reminding
that
the
floppy
disk
should
be
replaced
with
another
one
.
•
Replace
the
floppy
disk
with
another
one
and
press
the
[
SAVE
]
key
.
The
latter
half
(
1
megabyte
)
is
saved
onto
the
floppy
disk
.
•
After
the
latter
half
is
saved
,
a
message
is
issued
,
reminding
that
the
saving
operation
is
over
.
•
While
the
data
is
being
saved
，
a
[
CANCEL
]
key
and
the
progress
bar
appear
in
the
display
.
When
the
[
CANCEL
]
key
is
pressed
,
the
interrupted
and
the
“
HDD
/
FDD
OPERATION
”
display
appears
on
screen
.
operation
is
save
the
3
一
63
9810
-
002
ACP
01
EIN
3
-
63
3.8
HDD
/
FDD
Operation

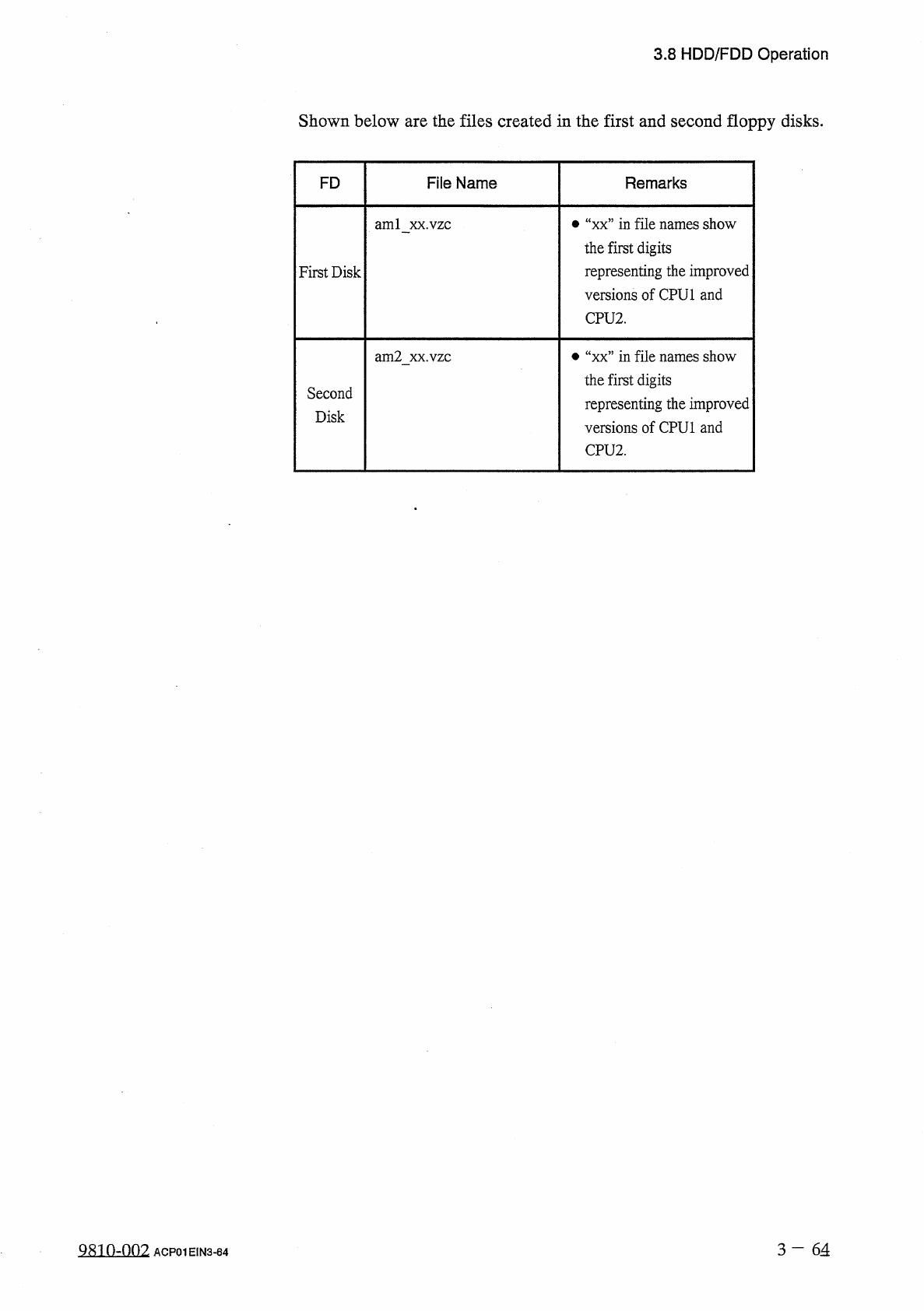

Shown
below
are
the
files
created
in
the
first
and
second
floppy
disks
.
FD
File
Name
Remarks
•
“
xx
”
in
file
names
show
the
first
digits
representing
the
improved
versions
of
CPU
1
and
CPU
2
.
ami
xx
.
vzc
First
Disk
•
“
xx
”
in
file
names
show
the
first
digits
representing
the
improved
versions
of
CPU
1
and
CPU
2
.
am
2
xx
.
vzc
Second
Disk
3
-
64
Q
810
-
n
02
ACP
01
EIN
3
-
64
3.8
HDD
/
FDD
Operation
3.8
.
3

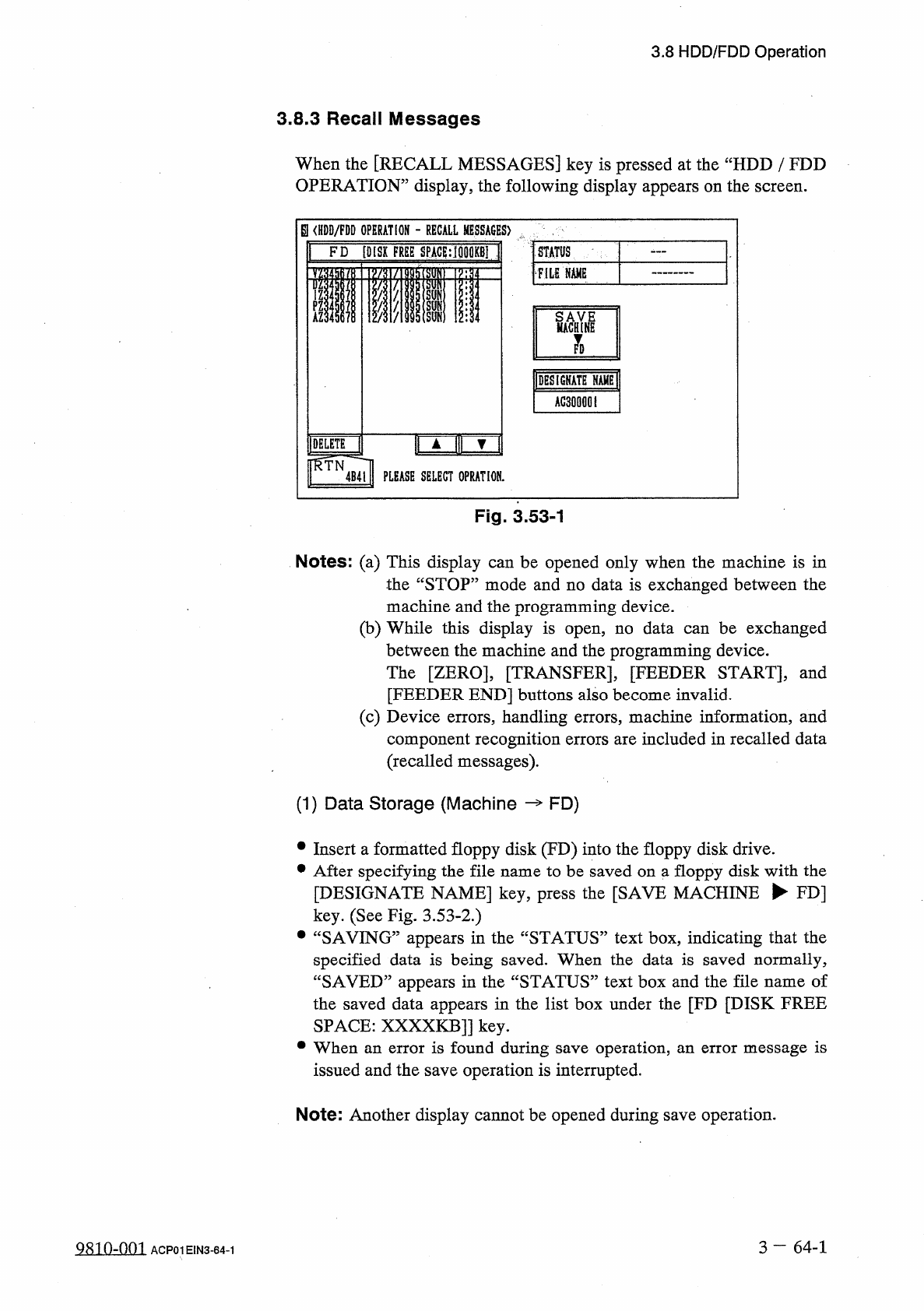

Recall
Messages
When
the
[
RECALL
MESSAGES
]
key
is
pressed
at
the
“
HDD
/
FDD
OPERATION
55
display
，
the
following
display
appears
on
the
screen
.
B
am
/
m
OPERATION
-
RECALL
MESSAGES
)
FD
[
DISK
FREE
SPACE
:
細
0
K
81
S
PILE
NAME
Wi
1
DES
1
GKATE
NAMH
[
AG
3
Q
000
I
H
A
f H
?
[
DELETE
■
RTN
4
B
4
l
|
PLEASE
SELECT
OPRATION
.
Fig
.
3.53
-
1
Notes
:
(
a
)
This
display
can
be
opened
only
when
the
machine
is
in
the
“
STOP
”
mode
and
no
data
is
exchanged
between
the
machine
and
the
programming
device
.
(
b
)
While
this
display
is
open
,
no
data
can
be
exchanged
between
the
machine
and
the
programming
device
.
The
[
ZERO
]
，
[
TRANSFER
]
,
[
FEEDER
START
]
，
and
[
FEEDER
END
]
buttons
also
become
invalid
.
(
c
)
Device
errors
,
handling
errors
,
machine
information
,
and
component
recognition
errors
are
included
in
recalled
data
(
recalled
messages
)
.
(
1
)
Data
Storage
(
Machine
FD
)
•
Insert
a
formatted
floppy
disk
(
FD
)
into
the
floppy
disk
drive
.
•
After
specifying
the
file
name
to
be
saved
on
a
floppy
disk
with
the
[
DESIGNATE
NAME
]
key
,
press
the
[
SAVE
MACHINE
►
FD
]
key
.
(
See
Fig
.
3.53
-
2
.
)
•
“
SAVING
”
appears
in
the
“
STATUS
”
text
box
,
indicating
that
the
specified
data
is
being
saved
.
When
the
data
is
saved
normally
,
“
SAVED
”
appears
in
the
“
STATUS
”
text
box
and
the
file
name
of
the
saved
data
appears
in
the
list
box
under
the
[
FD
[
DISK
FREE
SPACE
:
XXXXKB
]]
key
.
•
When
an
error
is
found
during
save
operation
,
an
error
message
is
issued
and
the
save
operation
is
interrupted
.
Note
:
Another
display
cannot
be
opened
during
save
operation
.
3
一
64
-
1
9810
-
001
ACP
01
EIN
3
-
64
-
1
