5 WF 2 TX-Series V2 Maintenance Return a maintained C&P20x 3 min 1 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a n c e…
4 WF 2 TX-Series V2 Maintenance Remove the C&P20x to be maintained 3 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T94, T95
Wear Part: Consumables:
www.asm-smt.com
7 Unplug the two ribbon cables. 8 Open the camera cable clip. 9 Release the plug lock and unplug the two
camera cables.
10 Loosen the 4 screws fixing the head. 11 Take the head from the hook. 12 Put the head into the transport container.
5 WF 2 TX-Series V2 Maintenance Return a maintained C&P20x 3 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T94, T95
Wear Part: Consumables:
www.asm-smt.com
1 Take the maintained head out of transport
container.
2 Put the head on the hook. 3 Fasten all 4 screws fixing the head with a
torque of 2.7 Nm.
4 Connect the two camera cables. 5 Close the camera cable clip. 6 Connect the two ribbon cables.
5 WF 2 TX-Series V2 Maintenance Return a maintained C&P20x 3 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T94, T95
Wear Part: Consumables:
www.asm-smt.com

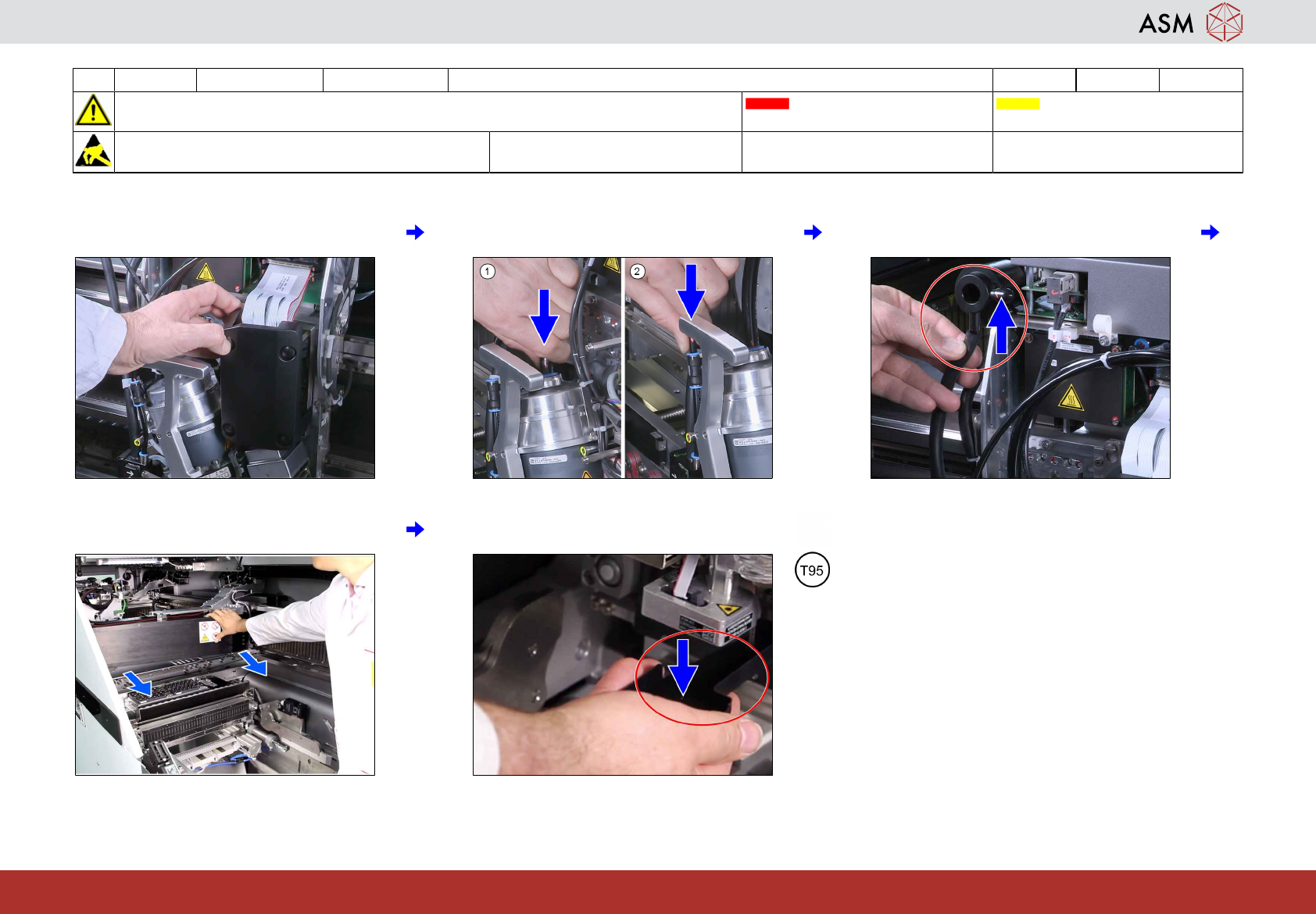

7 Mount the protection cover. 8 Connect the compressed air connections
to the head.
9 Connect the exhaust hose.
10 Move the gantry with the maintained head
to the end limit.
11 Remove the component sensor protection.
