9 WF 2 TX-Series V2 Clean the fiducial bars (TX V2 micron and HD only) 5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C3
www.asm-smt.com
1 Carefully clean the glass fiducial bars at all
locations.
2 Carefully clean the calibration boards at all
locations.
www.asm-smt.com
10 WF 2 TX-Series V2 Maintenance Clean the stationary camera (CPP/ TH) 1 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C2
www.asm-smt.com

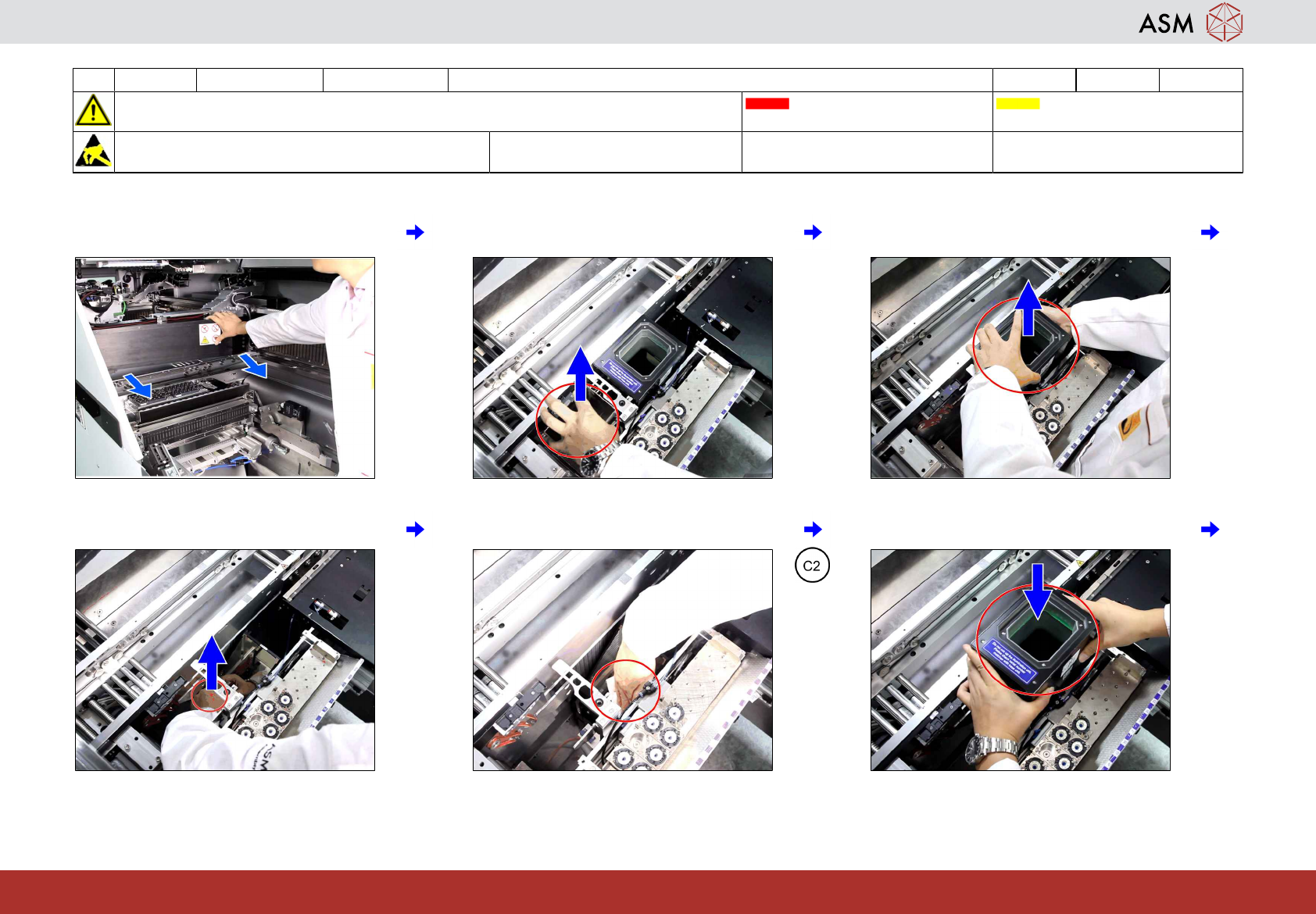

1 Move all gantries to the end limit. 2 Remove the reject bin. 3 Take off the upper section of the station-
ary camera.
4 Remove any components. 5 Clean the slanted glass. 6 Refit the upper section of the camera.
