13 WF 2 TX-Series V2 Maintenance Calibrate the maintained C&P20x 3 min 4 / 4 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n a…

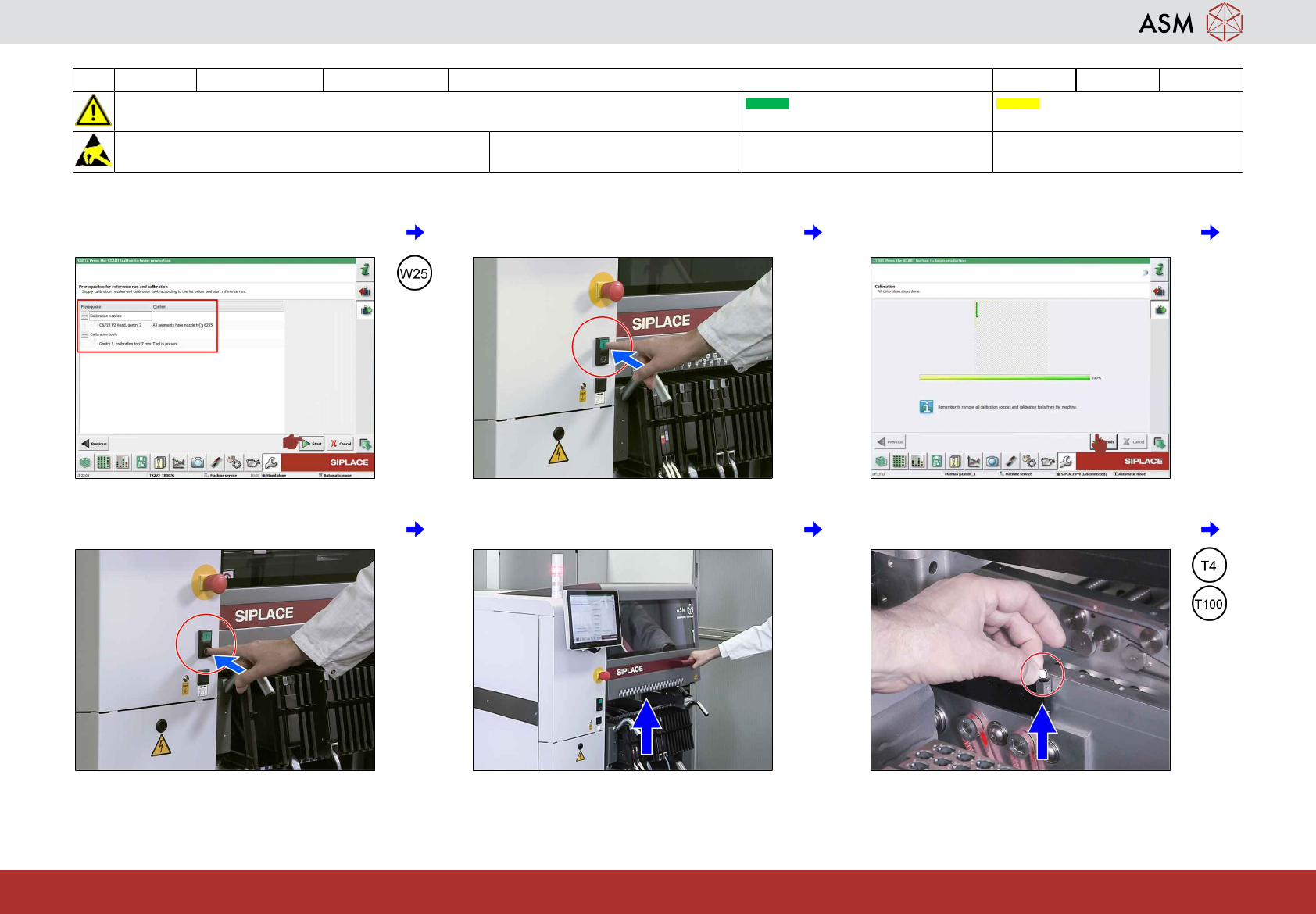

13 WF 2 TX-Series V2 Maintenance Calibrate the maintained C&P20x 3 min 3 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, T4, T100
Wear Part:
W25
Consumables:
www.asm-smt.com
13 Check / modify nozzle configuration and
click on "Start".
14 Press the start button. 15 Click on "Finish".
16 Press the stop button. 17 Open the cover. 18 Remove the calibration tool.

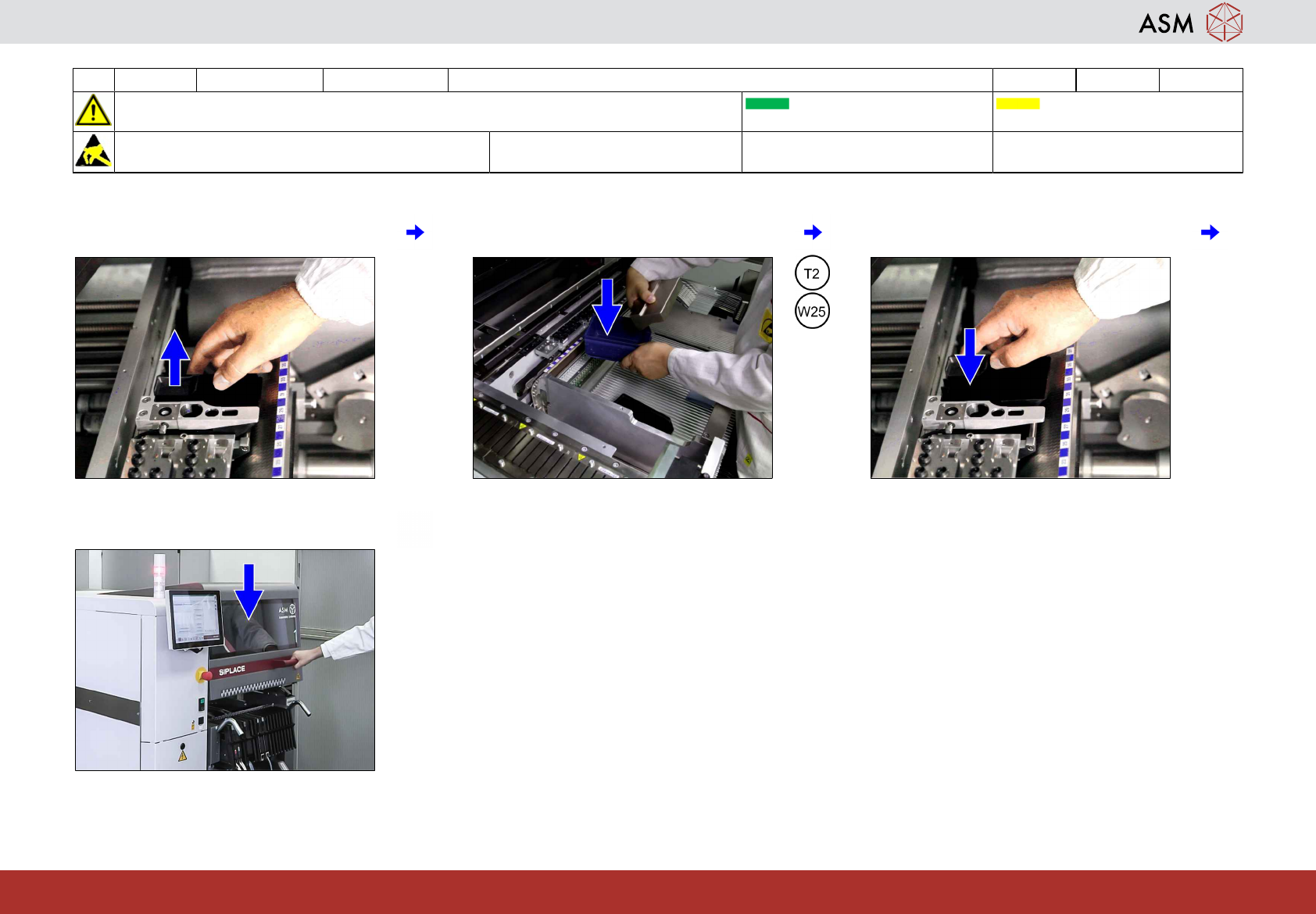

13 WF 2 TX-Series V2 Maintenance Calibrate the maintained C&P20x 3 min 4 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T2, T4, T100
Wear Part:
W25
Consumables:
www.asm-smt.com
19 Remove the reject bin. 20 Remove the calibration nozzles from the
reject bin.
21 Return the reject bin.
22 Close the cover.

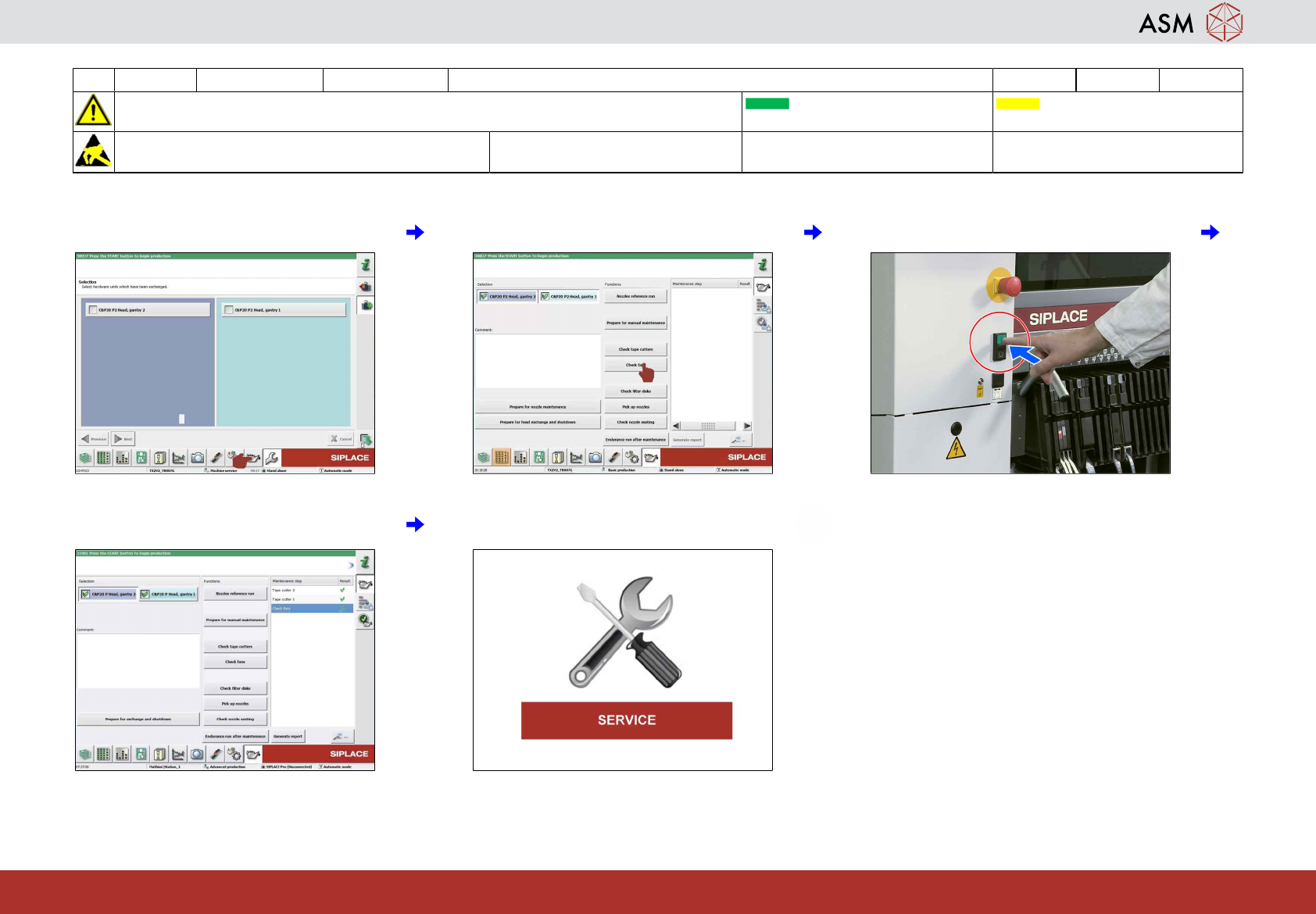

14 WF 2 TX-Series V2 Maintenance Check the cover fans 0.5 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 Click on "Maintenance". 2 Click on "Check fans". 3 Press the start button.
4 Check if the result is OK (green hook). 5 If the results is NOT OK (red cross) con-
tact service.
