4.7.2.1 Examples of component dimensions

See the following figures to create data.

The dimensions and shape of each type of component are shown below.

• Square chip

• MELF

(horizontal)

4 – 67

• Aluminum electrolytic capacitor

• SOT

(horizontal)

4 – 68

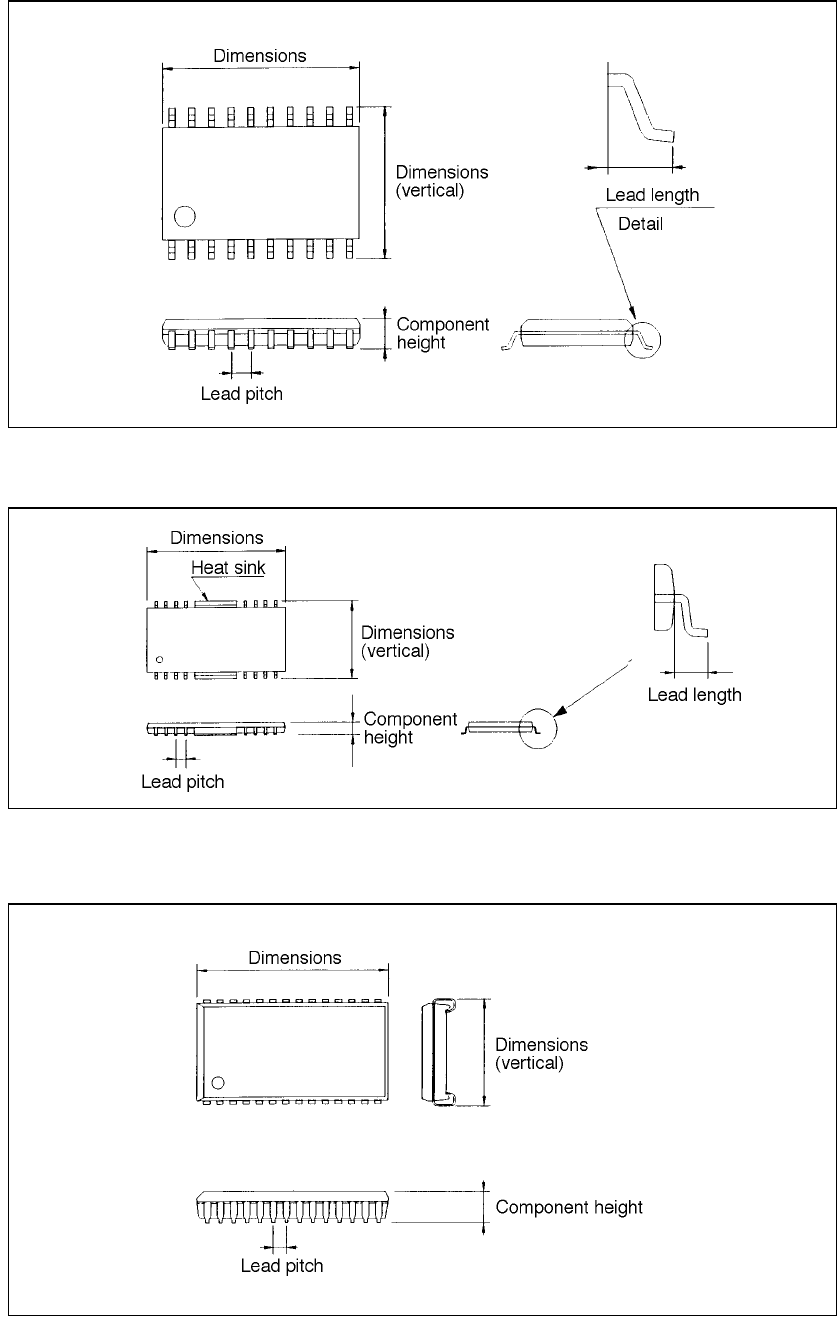

• SOP

• SOP (with a heat sink)

• SOJ

(horizontal)
