4.10.2 Divided Placement Data

This command displays Placement data which is distributed to each station by the

Optimization utility. Select the menu command [Divided Placement Data] from the

“Optimization” menu. A submenu from which you can select stations displays. Select

a station whose data is to be displayed.

Figure 4.10.2.1 Divided Placement Data selection menu

Notes:

①

This menu cannot be selected if optimization has not been performed

(the divided files do not exist), or if the production program has been

changed after optimization.

②

The display order of divided placement data can be either in the

placement order or optimization order: the order is selected with the

[Environment Settings] command displayed on the File menu.

•

When input order is selected, all Placement data is displayed in

placement order.

•

When optimization order is selected, data on a component to be

placed only is displayed in the optimized placement order as the

result of optimization.

When you select a station on the station selection dialog box, the corresponding

window appears on the screen as shown below.

Figure 4.10.2.2 Divided Placement Data Display Example (Placement Order)

4 – 163

Figure 4.10.2.3 Divided Placement Data Display Example (Optimization Order )

Note: When displayed in optimization order, the pair end mark “/” indicates the

separation of data paired during one pick and placement cycle of operation.

4.10.3



 Nozzle layout

This command displays the nozzles assigned to each station by the Optimization

utility.

Figure 4.10.3.1 Nozzle Layout Selection

Select the “Nozzle Layout” menu command from “Optimization” menu. The sub-menu

appears which allows you to select a station. Select the desired station on this

sub-menu.

Notes:

①

This menu cannot be selected if optimization has not been preformed or

if the production program has been changed after optimization.

②

Nozzle displayed here are nozzles that are set in the Machine setup

menu and nozzle used in the program data.

4 – 164

The following window displays after a station is selected:

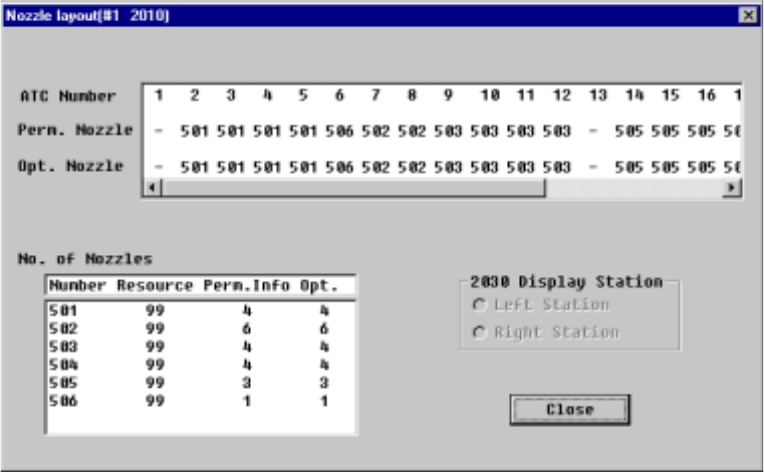

Figure 4.10.3.2 Nozzle Layout Display Example

• Perm. Nozzle (Permanent nozzle):

Nozzle layout which is set on the Machine setup menu.

• Opt. Nozzle (Optimized nozzle):

Nozzle layout which is output with the Optimization utility.

• No. of Nozzles:

Number of nozzle resources (Resource), the number of nozzles set as

the permanent information (Perm. Info) and the number of nozzles output

with the Optimization utility (Opt.) are displayed here.

• Close: Quits the Nozzle layout dialog box.
