Description

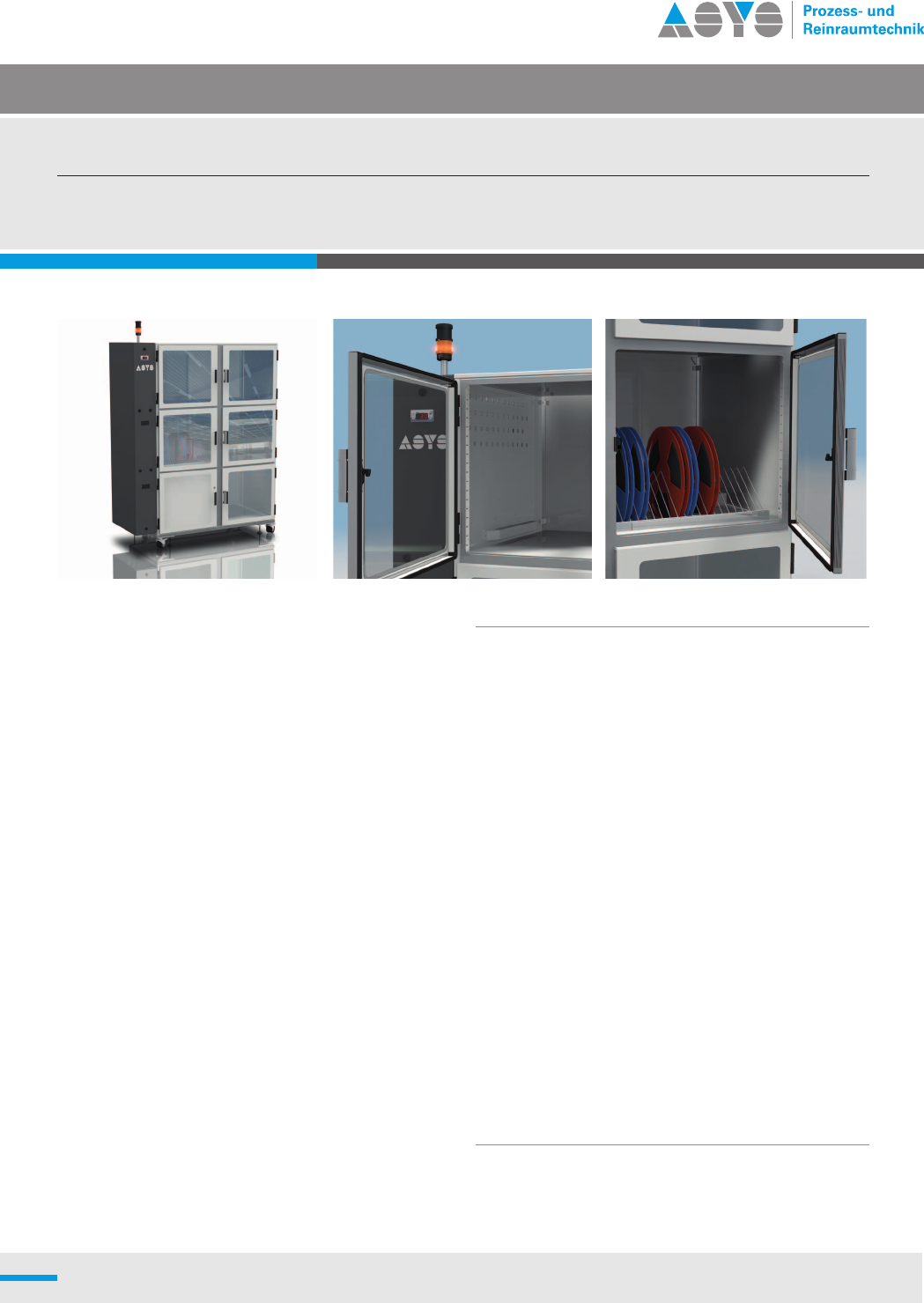

The CONSIDUS dry storage systems from ASYS offer
optimum protection for highly sensitive components and
assemblies. They are used when storage is required under
dened conditions of humidity or for active component drying.
CONSIDUS Dry Storage can be used for a variety of
storage products such as electronic components, partially
assembled electronic modules, circuit boards, foils, wafers and
components with oxidation-sensitive surfaces. Three different
dehumidication technologies are available to achieve the
stable and dry atmosphere in CONSIDUS Dry Storage.
1. Adsorption dehumidication
Controlled drying and circulating of air with a powerful
adsorption drier. Closed recirculation system with high air
circulation rates. Additional option of installing a heating
module of up to 40 °C for stress-free component drying.
2. Nitrogen dehumidication
Controlled feeding of nitrogen.
3. Compressed-air dehumidication
Controlled feeding of compressed air.
Customised solutions
In addition to proven standard products, ASYS Cleanroom
Technology supplies individual customer-specic solutions
exibly customised to meet any req uirement.
CONSIDUS Dry Storage
CONSIDUS Dry Storage_141020_DS_CC_E
CONSIDUS - Innovation in Air Drying
Equipment:
_ Solid metal corpus
_ ESD version
_ Ergonomic door handles
_ Dehumidication techniques with fast reactions
Options:
_ Visual and audible alarms
_ Data logging for documentation of moisture and
temperature
_ Lockable doors
_ 3-chamber system (entire cabinet volume divided into
three independent individual chambers)
_ Stainless steel shelves (up to 50 kg load capacity)
_ Installation of pull-out drawers
_ Installation of SMD roll holders
_ Installation of feeder banks
_ Installation of a temper oven up to 125 °C
_ Heating module to heat the corpus up to 40 °C
_ Extended cabinet depth (to 1100 mm)
_ Installation of a dryer unit for compressed air conditioning
_ Recalibration of probes
_ Traceability software
_ Stainless steel version
_ Acrylic glass version
_ Additional options on request
Economic dry storage systems
www.asys-reinraum.de
ASYS Prozess- und Reinraumtechnik GmbH
Lerchenbergstraße 31,
89160 Dornstadt, Germany
Tel (+49) 7348 9856 0
Fax (+49) 7348 9856 91
info@asys-reinraum.de
ASYS Group Americas Inc.
140 Satellite Boulevard NE
Suite B1, Suwanee
GA 30024 USA
Tel (+1) 770 246 9706
Fax (+1) 770 246 9866
info@asys-group.com
Subject to change.
All information listed is general descriptions and performance features which in actual case
of use do not always apply in the form shown or which may change due to ongoing product
development. Only the contractually agreed performance descriptions are considered binding.
Printed in Germany
Type label Typ 600M
c)
Typ 1200M Typ 1800M Typ 2400M

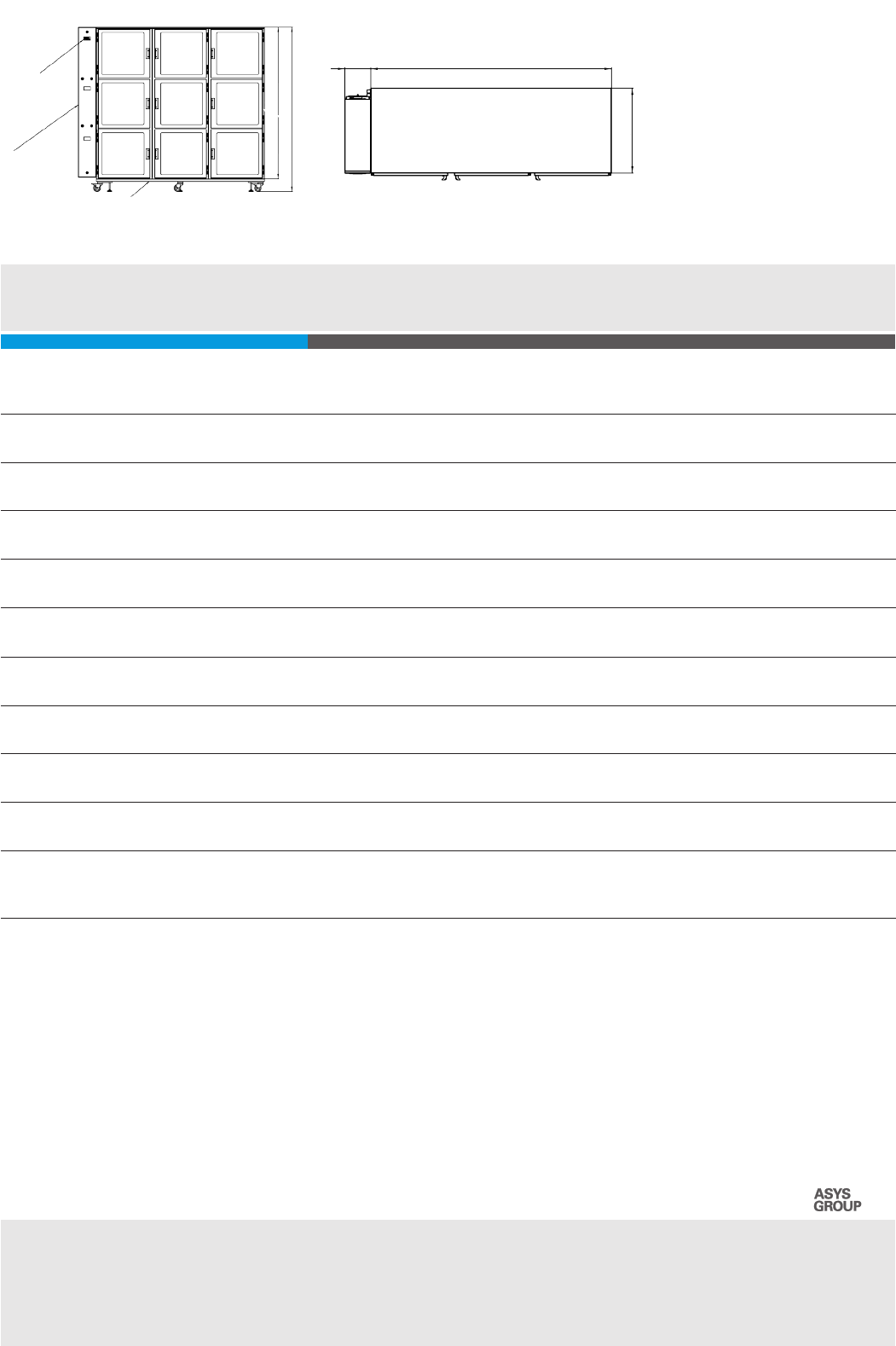

External dimensions
in mm (WxHxD)
a)
815 x 1805 x 650 1430 x 1805 x 650 2045 x 1805 x 650 2660 x 1805 x 650
Number of doors
3 (2)
b)
6 (5)
b)
9 (8)
b)
12 (11)
b)
Storage volume
in litres
625 (410)
b)
1250 (1040)
b)
1875 (1670)
b)
2500 (2300)
b)
Usable size per compartment
in mm (WxHxD)
540 x 510 x 620
Dehumidication technologies
Adsorption dehumidication / nitrogen feed-in / compressed air feed-in
Applications
Residual humidi ty of less than 3 % RH
Cabinet material
Metal
Connection specications
Nitrogen: 3 bar / Compressed air: 6 - 8 bar
Electrical connection
230 V / 50 Hz
Control
Automatic control with measurement and control technology and calibrated humidity sensor. Humidity setpoint
freely adjustable. Indication of current humidity and temperature on the display. Dehumidication takes place
only when exceeding the predetermined humidity setpoint.
a) Individual dimensions on request
b) With adsorption dehumidication
c) Only nitrogen / compressed air dehumidication
CONSIDUS Dry Storage
A 700 Basic Light ESD
Feinstruktur Seidenglanz
Anzeige
1665
1805
650
1845200
RAL 5015 ESD
Feinstruktur
Seidenglanz
