Page 6-13
FILE OPERATION
6
File Operation of Floppy Disk

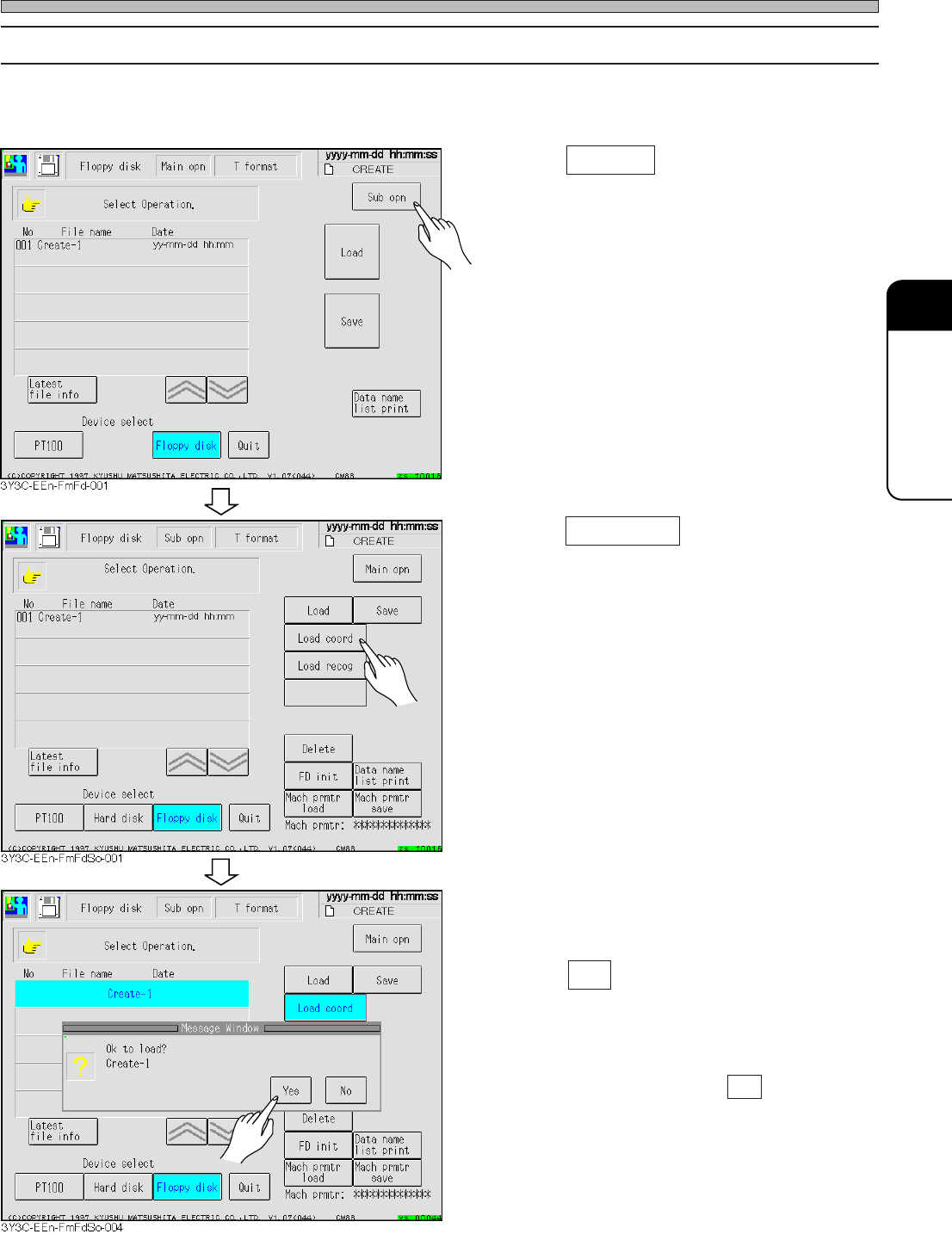

6-2-4 Loading the Coordinate Data
Only machine data in production data of floppy disk is loaded to the memory of machine.
1. Press Sub opn .
• Sub operation menu screen appears.
2. Press Load coord .
• Data name is highlighted, and message
appears.
3. Press Yes .
• The message “Loading” is displayed and
loading the coordinate data started.
∗ To stop loading data, press No .
3Y3C-E-EMD06-A01-00
Page 6-14
File Operation of Floppy Disk

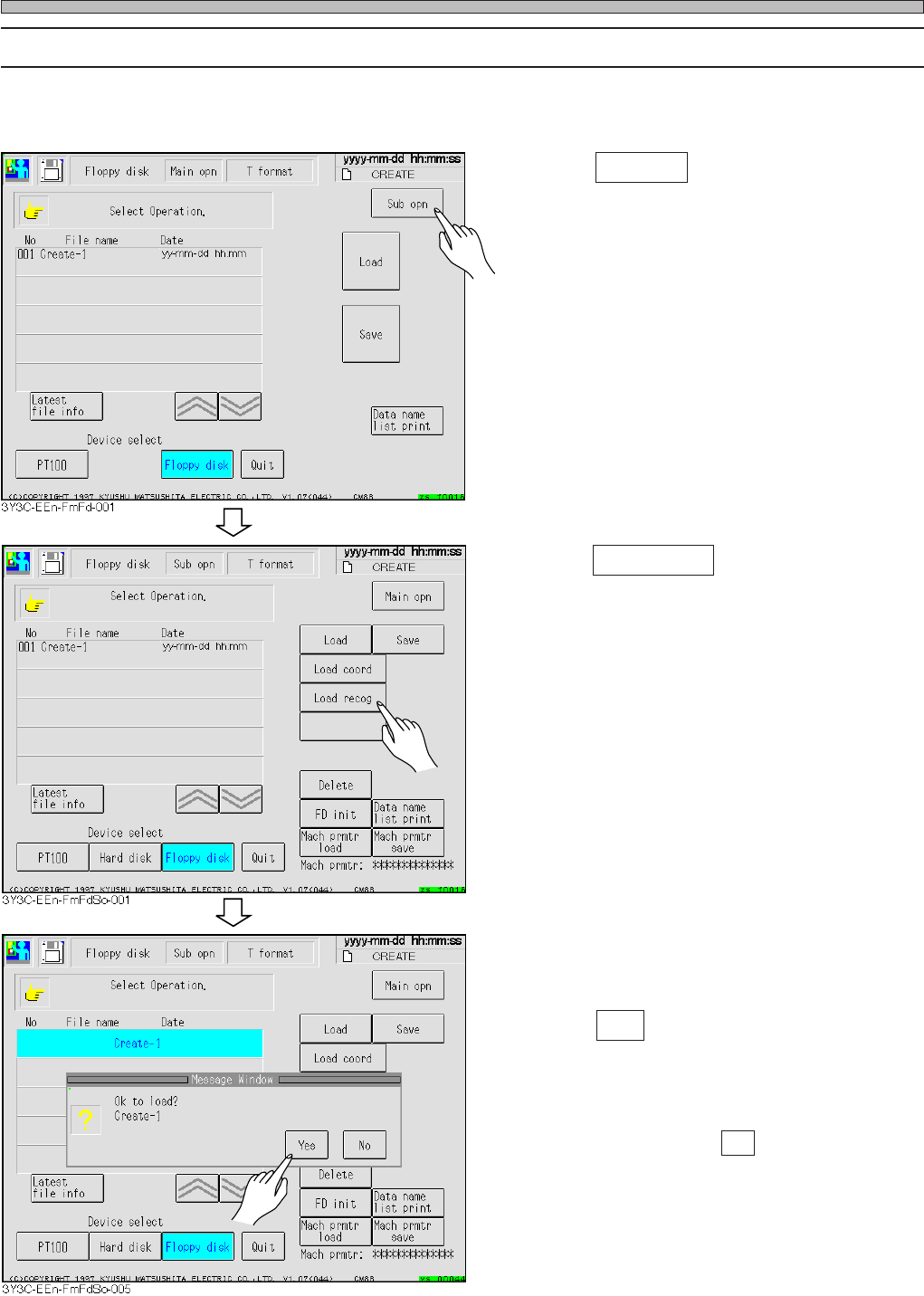

6-2-5 Loading the Recognition Data
Only recognition data in production data of floppy disk is loaded to the memory of machine.
1. Press Sub opn .
• Sub operation menu screen appears.
2. Press Load recog .
• Data name is highlighted and message ap-
pears.
3. Press Yes .
• The message “Loading” is displayed and
loading the recognition data starts.
∗ To quit loading, press No .
3Y3C-E-EMD06-A01-00
Page 6-15
FILE OPERATION
6
File Operation of Floppy Disk
6-2-6 Deleting Data
Production data of floppy disk is deleted.
1. Press Sub opn .
• Sub operation menu screen appears.
2. Press Delete .
• Data name is highlighted and message ap-
pears.
3. Press Yes .
• The message “Deleting” appears.
∗ To quit deleting data, press No .
3Y3C-E-EMD06-A01-00
