7-1 Conveyor Width Adjustment
The width of all conveyors is automatically set to the width of set board size.
∗ Check no board on conveyor before carrying out.

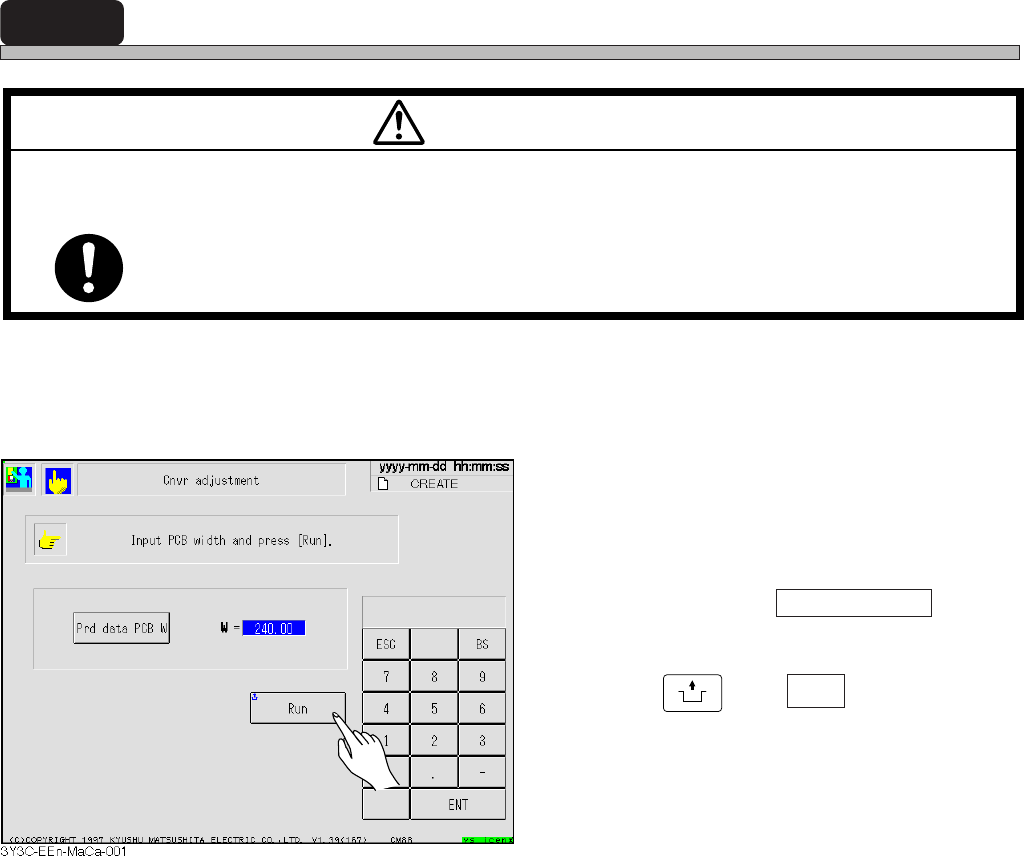

1. Enter board width.
• Enter numerals through numerical keys.
• When current board width of production data
can be used, press Prd data PCB W .
2. Press
UNLOCK
and Run .
M35E
TURN OFF THE SERVO SWITCH BEFORE PLACING A BOARD ON OR
REMOVING IT FROM THE CONVEYOR.
You will have serious injury if the machine is actuated.
WARNING
Page 7-3
MACHINE
ADJUSTMENT
7
7-2 PCB Transfer
Transferring of board between each conveyor is checked and board can be moved to an optional
position. Machine checks that the board is on conveyor. If it is, the board on that conveyor on the
screen is displayed in green. Pressing the button for the position to transfer starts transferring.
During transferring, the board at the transferring end position blinks. After transferring, the board at
the transferring start position goes out, and lights at the end position.
E.g.) When board is on board holder,
Press
UNLOCK
and Unload .
• Board is transferred from the board holder to
the rear conveyor.
UNLOCK
and Carry in
Demanding signal is given to pre-process, and board is transferred from
pre-process to front conveyor.
UNLOCK
and Load
Board is transferred from front conveyor to board holder (middle conveyor).
UNLOCK
and Unload
Board is transferred from front conveyor or board holder (middle conveyor)
to rear conveyor.
UNLOCK
and Carry out
Board is transferred to post-process.
3Y3C-E-EMD07-A01-00
Page 7-4
3Y3C-E-EMD07-A01-00
7-3 Stage Escape
This is the function to move A and B stages to each end (origin position) of a feeder drive axis.
Use this for the maintenance at the rear side of machine.
1. Press
UNLOCK
and Yes .
• Stage is retracted.
