Page 8-2 3Y3C-E-EMD08-A01-00 8-1 Adjustment Switch The condition of producing can be temporally changed for adjustment. The figure below is the main axis and transfer head viewed from the top. Usually , all items except …
Page 8-1
3Y3C-E-EMD08-A01-00
Chapter 8
MACHINE SETTING
MACHINE SETTING

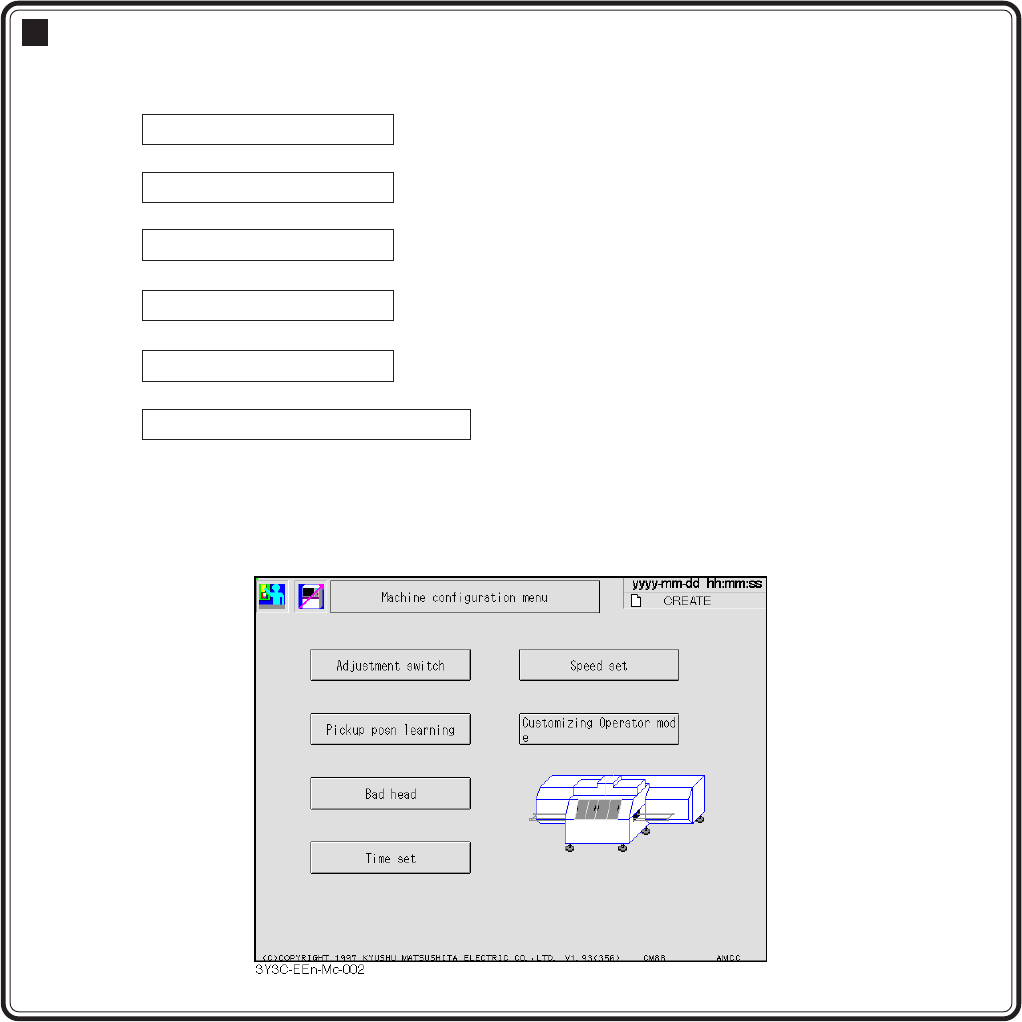

Machine setting
That state of machine independent of production data can be set.
8-1 Adjustment switch
Condition of producing can be temporally changed for adjustment.
8-2 Pickup posn learning
Corrected value by pickup position learning in producing can be checked for each feeder address.
8-3 Bad head
Each head and nozzle for it can be checked.
8-4 Time set
Time for machine can be set.
8-5 Speed set
The speed in producing can be temporally changed for adjustment.
8-6 Customizing Operator mode
You can set the functions which were available only in the engineer mode, to us in the operator
mode.
Page 8-2
3Y3C-E-EMD08-A01-00

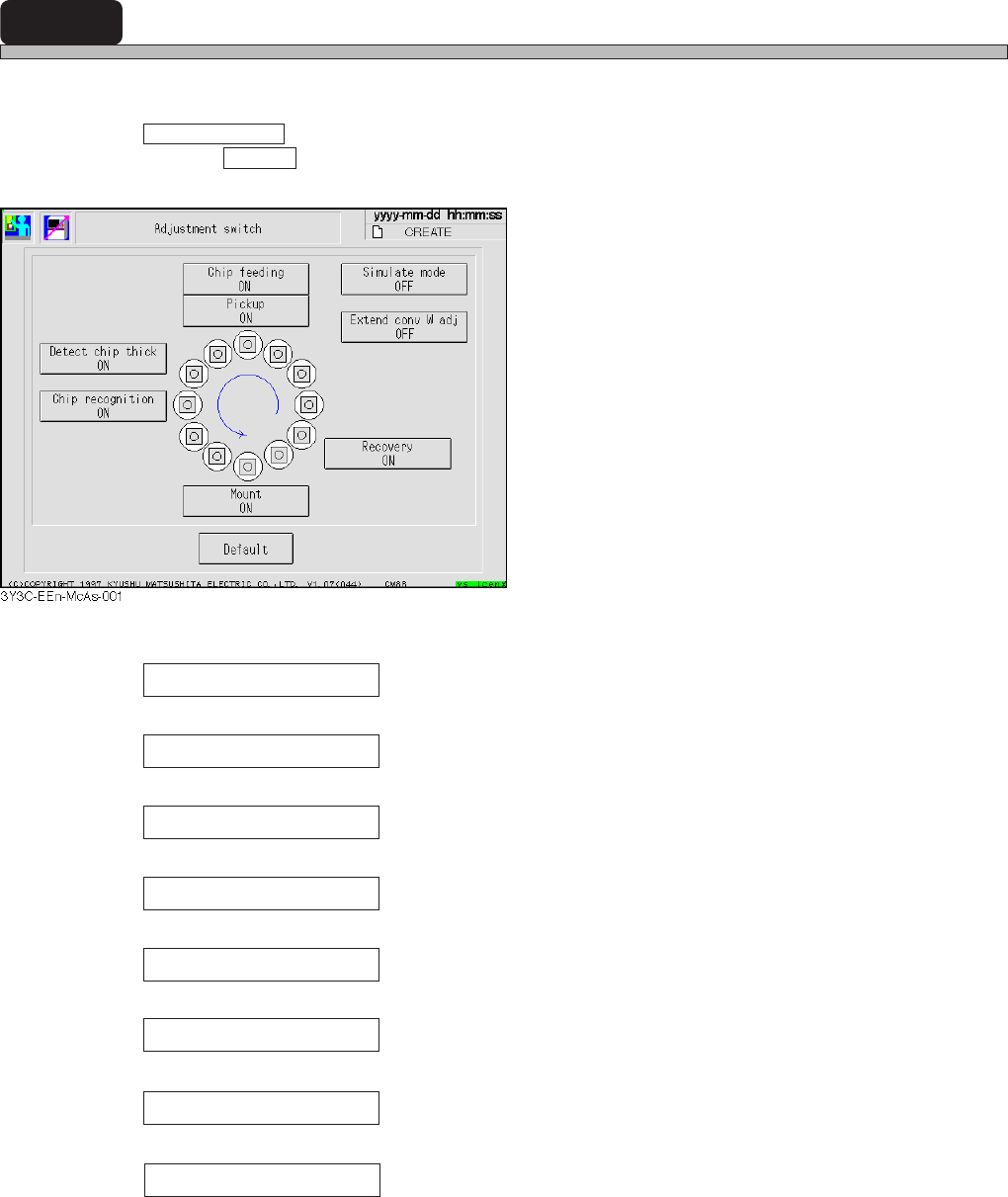

8-1 Adjustment Switch
The condition of producing can be temporally changed for adjustment.
The figure below is the main axis and transfer head viewed from the top. Usually, all items except
Simulate mode are turned on.
Pressing Default or restarting returns the setting to normal operation.
Chip feeding
Tape of feeder is fed by ON.
Pickup
Pickup is started by ON.
Detect chip thick
Chip height is detected and error is checked by ON.
Chip recognition
Chip is recognized and error is checked by ON.
Mount
Mounting starts by ON.
Recovery
Chips of pickup fault, non-level chip fault, recognition fault are picked up again.
Simulate mode
Production data is operated repeatedly by ON.
Extend conv W adj
Width of extension conveyor is automatically adjusted by ON. When the conveyor is not
connected properly, it is forced to be OFF.
Page 8-3
MACHINE SETTING
8

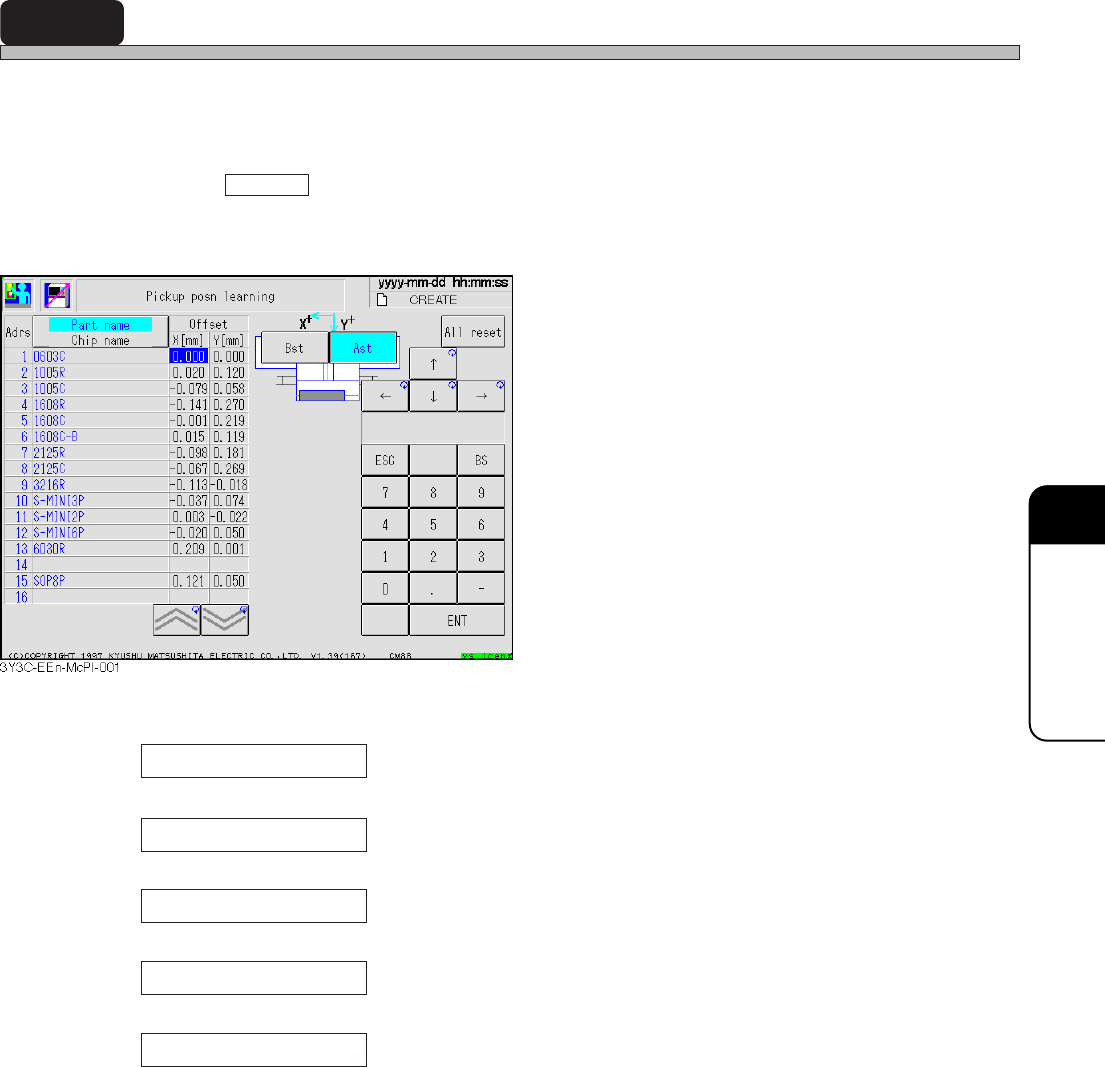

8-2 Pickup Position Learning
Corrected value by pickup position learning in producing can be checked for each feeder.
For learning data, 10 % of recognition result is added to the current learning value, during produc-
ing.
Learning value for X direction changes within the range of - 0.7 mm to + 0.7 mm.
Pressing All reset or loading production data resets pickup position learning data of all feeder
addresses to 0.0. In the joint or exchange mode, the learning value of A and B stages is exchanged
and displayed.
Chip name
“Chip name” for each tape feeder is displayed.
Part name
“Part name” for each tape feeder is displayed.
A st
Learning data of A stage is displayed.
B st
Learning data of B stage is displayed.
All reset
Pickup position data of all feeder address gets to 0.0.
