Chapter 2
BASIC OPERATION
BASIC OPERATION
Engineer Mode
To prevent mal-operation, the touch panel has two modes, for an operator and an
engineer, according to use.
This section describes the main menu for the engineer mode.
(For the menu and operation switches at the lower part of screen for operator mode,
see the manual for operator.)
Main menu for engineer mode
Page 2-2
3Y3C-E-EMD02-A01-00
2-1 Functions of the Engineer Mode
2-1-1 Starting the Engineer Mode
∗ Password must be entered to start the engineer mode. When the password has not been set,
refer to “2-1-4 Changing the Password,” and set it.

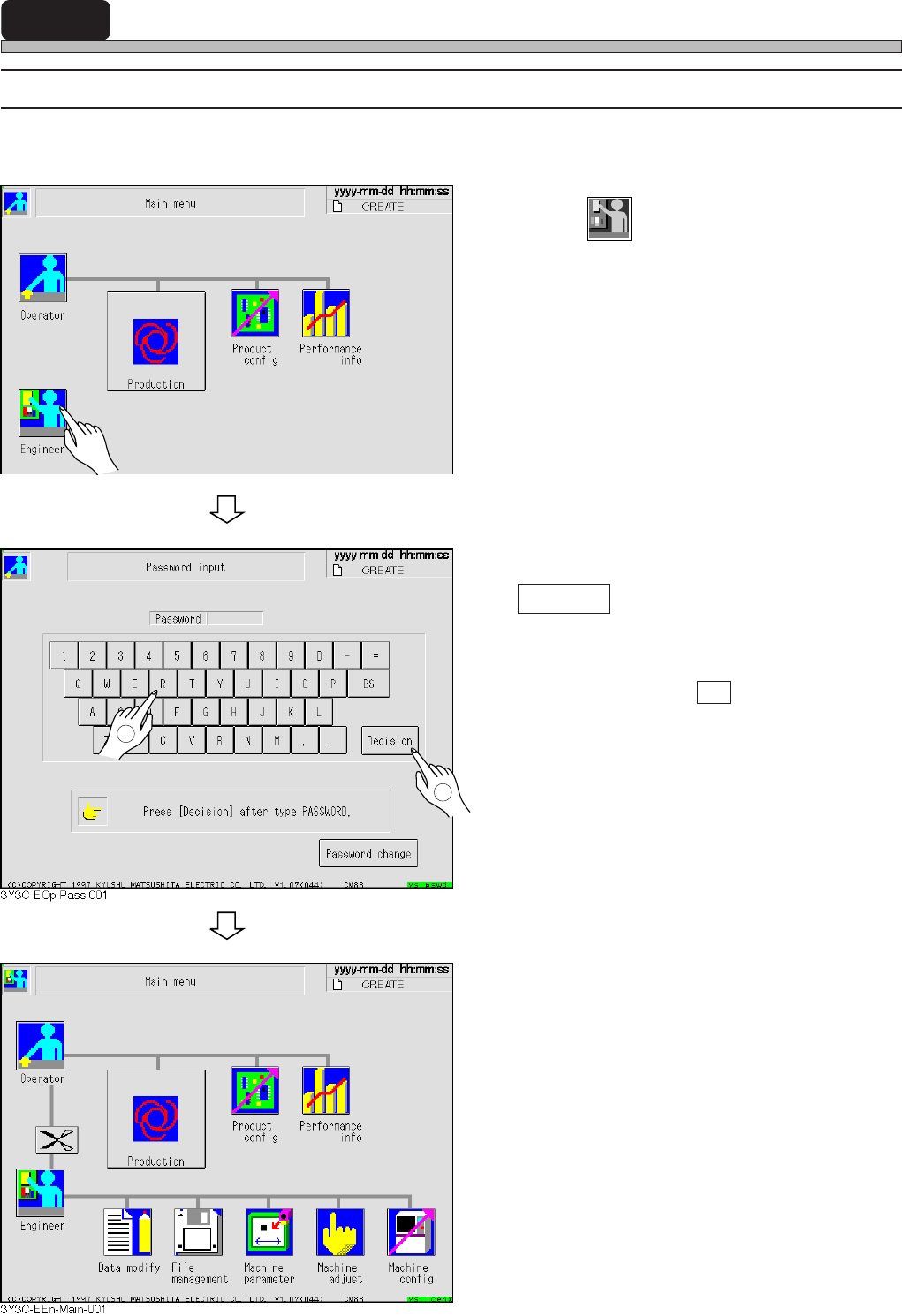

1. Press
Engineer
.
• The password input screen appears.
2. Enter the password, and press
Decision .
• The main menu for engineer mode appears.
∗ For fault input, press BS key and reenter.
3Y3C-EOP-Main-001
2
1
Page 2-3
BASIC OPERATION
2
Production
Data modify
Functions of the Engineer Mode
2-1-2 Functions of the Main Menu

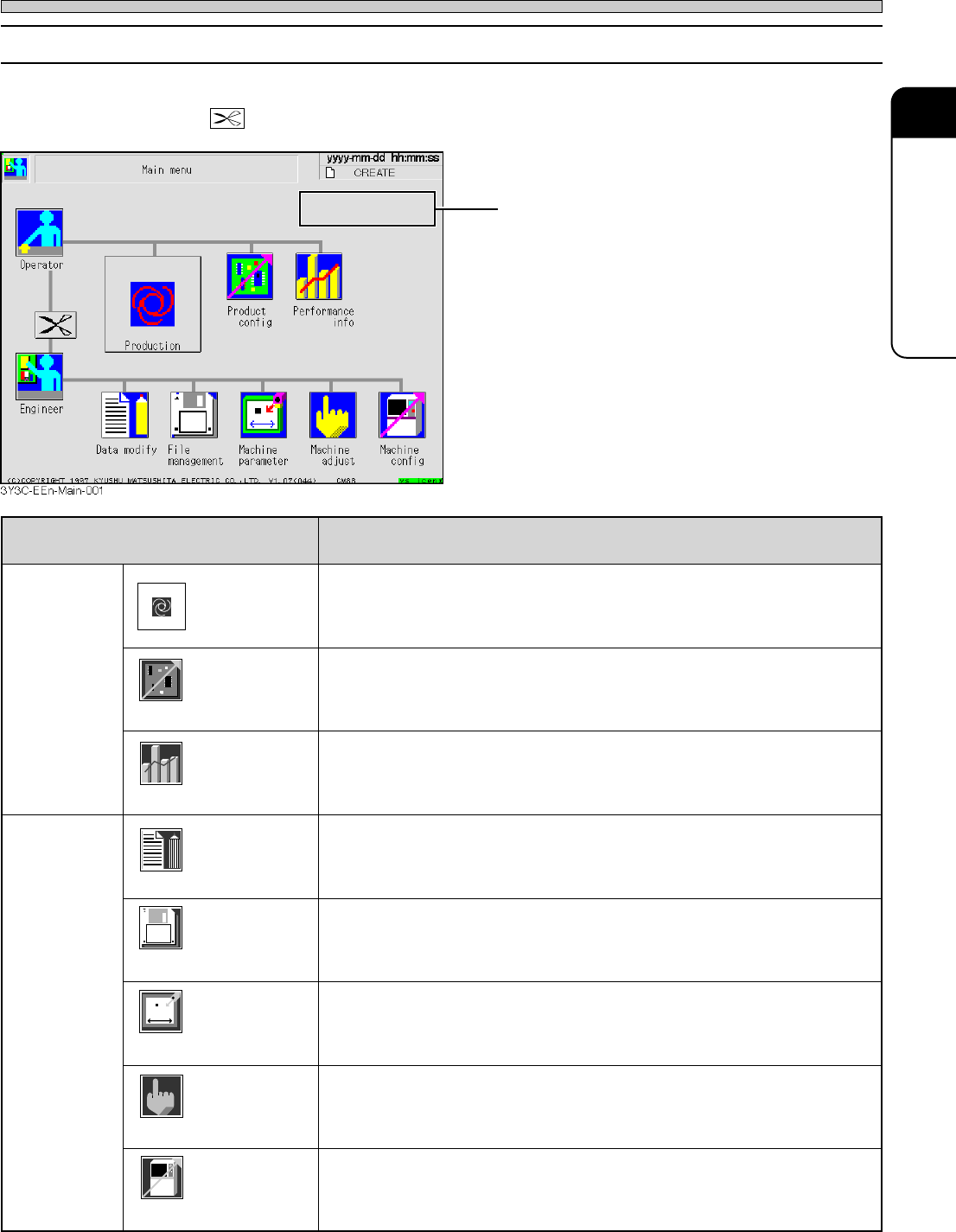

Pressing the icon to select in main menu can start that operation menu.
• Pressing displays the main menu for operator mode.
Check period indicator
• When it comes near to the routine check period
(when 90 % of cycle is passed), the message
in green appears.
Passing that period, it turns out yellow.
smetI noitcnuF
rotarepO
noitcudorP.strats)noitcudorp(noitarepocitamotuA
tcudorP
gifnoc
.tessinoitcudorprofgnittestsaelehT
ecnamrofreP
ofni
.teserdnadeyalpsidsinoitamrofninoitcudorP
reenignE
yfidomataD.thguatdnadetcerrocsiatadnoitcudorP
eliF
tnemeganam
ybdedaoldnadevaseraretemarapenihcamdnaatadnoitcudorP
.ksidyppolfdna001TP
enihcaM
retemarap
.thguatdnadetcerrocsiretemarapenihcaM
enihcaM
tsujda
.detsujdasienihcamfotnemevomhcaE
enihcaM
gifnoc
.tessiatadnoitcudorpfotnednepedniatadetatsenihcaM
3Y3C-037TE
3Y3C-E-EMD02-A01-01
File
managment
Machine
parameter
Machine
config
Machine
adjust
Performance
info
Product
config
