Page 3-4 Changing Production Data 5 . Select data name to load. • Selected data name is highlighted. 6 . Press Ye s . • Loading data is started. ∗ T o stop loading data, press No . • The message “Loading data name...” ap…
Page 3-3
CHANGING
PRODUCTION BOARD
3
Changing Production Data
b) Loading by file operation
1. Press
File
managment
.
• File operation screen appears.
2. Press PT100 .
• Change the object device to PT100.
∗ To display the data of PT100 by this machine, it
is necessary to register the list on PT100 .
( PROGRAMMING MANUAL)
3. Press Load .
• Load is highlighted.
To the next page
3Y3C-E-EMD03-A01-00
Page 3-4
Changing Production Data
5. Select data name to load.
• Selected data name is highlighted.
6. Press Yes .
• Loading data is started.
∗ To stop loading data, press No .
• The message “Loading data name...” appears.
• After loading, data name at the upper right of
screen changes to that loaded.
3Y3C-E-EMD03-A01-00
1
2
Page 3-5
CHANGING
PRODUCTION BOARD
3

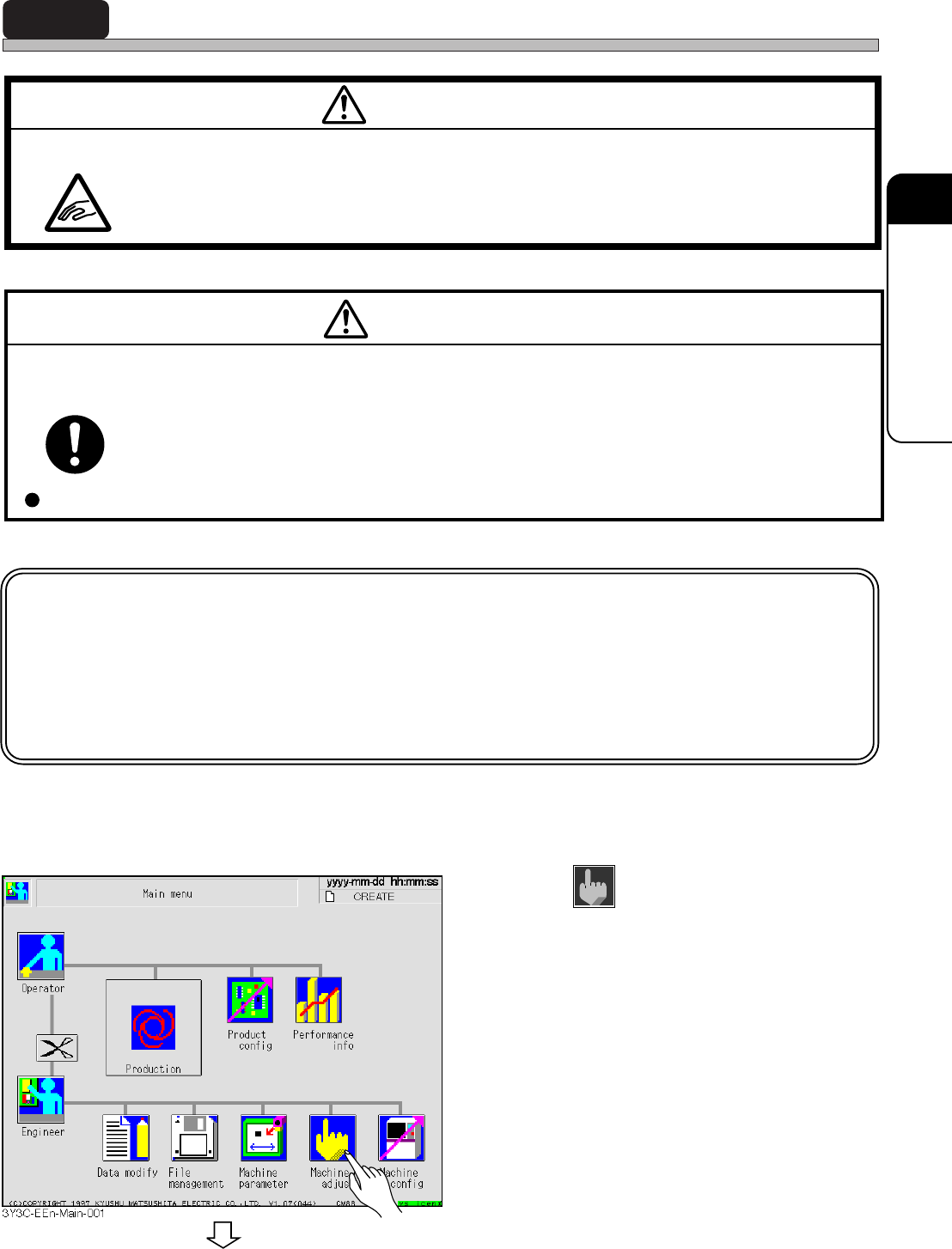

3-2 Adjusting the Transport Rail Width
NOTICE
For board getting small (transport rail width gets small), pull out the holder pins of
board X-Y table before adjusting the rail width. If they are present, the sensor,
which prevents from touching the holder pins to the conveyor, works and auto-
matic width adjustment as “Support (Pin) - Conveyor Interference,” and automatic
width adjustment is quitted.
Rail width of front and rear conveyors and board holder is automatically adjusted, according to the
data of board size and thickness.
1. Press
Machine
adjust
.
M36E
If there are any boards or other objects on the conveyor, turn OFF the servo switch and remove them.
BEFORE PERFORMING AUTOMATIC WIDTH ADJUSTMENT, BE SURE TO
VERIFY NO BOARDS OR OTHER OBJECTS ARE ON THE CONVEYOR.
Boards or other objects may drop from the conveyor, causing damage to the boards or
the machine.
CAUTION
M09E
TAKE CARE NOT TO PINCH YOUR HANDS OR FINGERS.
You will have serious injury if your hands or fingers are caught in the conveyors during
manual (or automatic) width adjustment.
WARNING
To the next page
3Y3C-E-EMD03-A01-00
