Page 4-1
3Y3C-E-EMD04-A01-01
Chapter 4
DATA MODIFICATION
DATA MODIFICATION
Data modification
Basically, data in need of correction after teaching and coordinate data can be cor-
rected in CM88C, and this data is displayed in black characters.
Data only for checking is displayed in blue, and it must be corrected by PT100.
Data indicator for correctable data can be the switch to move cursor to data by touch-
ing it.

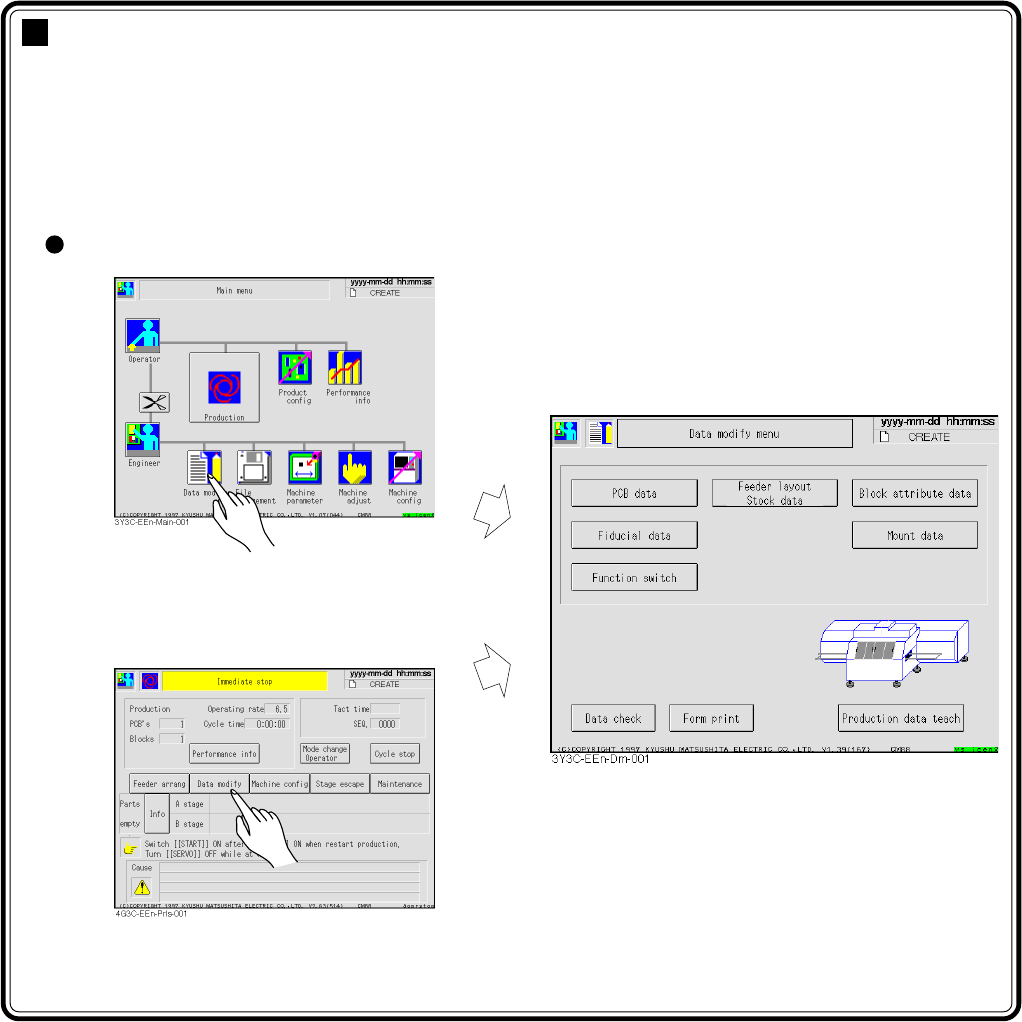

Entering data modification
∗ It can be started from the screen
stopping the production.
Page 4-2
uneM stnetnoC
atadBCP
.detcerrocdnadekcehcsiataddraoB
atadlaicudiF
.detcerrocdnadekcehcsiatadnoitingocerdraoB
tonsiti,hctiwsnoitcnufybFFOdenrutsinoitingocerdraobnehW
.elbissecca
hctiwsnoitcnuF
.detcerrocdnadekcehcsievirdfonoitidnocehttesothctiwsnoitcnuF
)edomssapehtgnittesylnO(
atadkcotS/tuoyalredeeF
.rehtegotdetacidnieraatadkcotsdnatuoyalredeeF
.detcerrocdnadekcehcsiesunispihcfoataD
atadetubirttakcolB
.detcerrocdnadekcehcsiatadetubirttakcolB
atadtnuoM
.detcerrocdnadekcehcsiatadtnuoM
kcehcataD
.dekcehcsiatadnoitcudorP
tnirpmroF
.tuptuosiatadnoitcudorP
hcaetataddorP
.yrassecenfidegnahcsiataddnathguatsiatadnoitcudorP
)noitarepognirudelbisseccatonsitI(
.gnihcaetrof”gnihcaeT5retpahC“
3Y3C-E-EMD04-A01-00

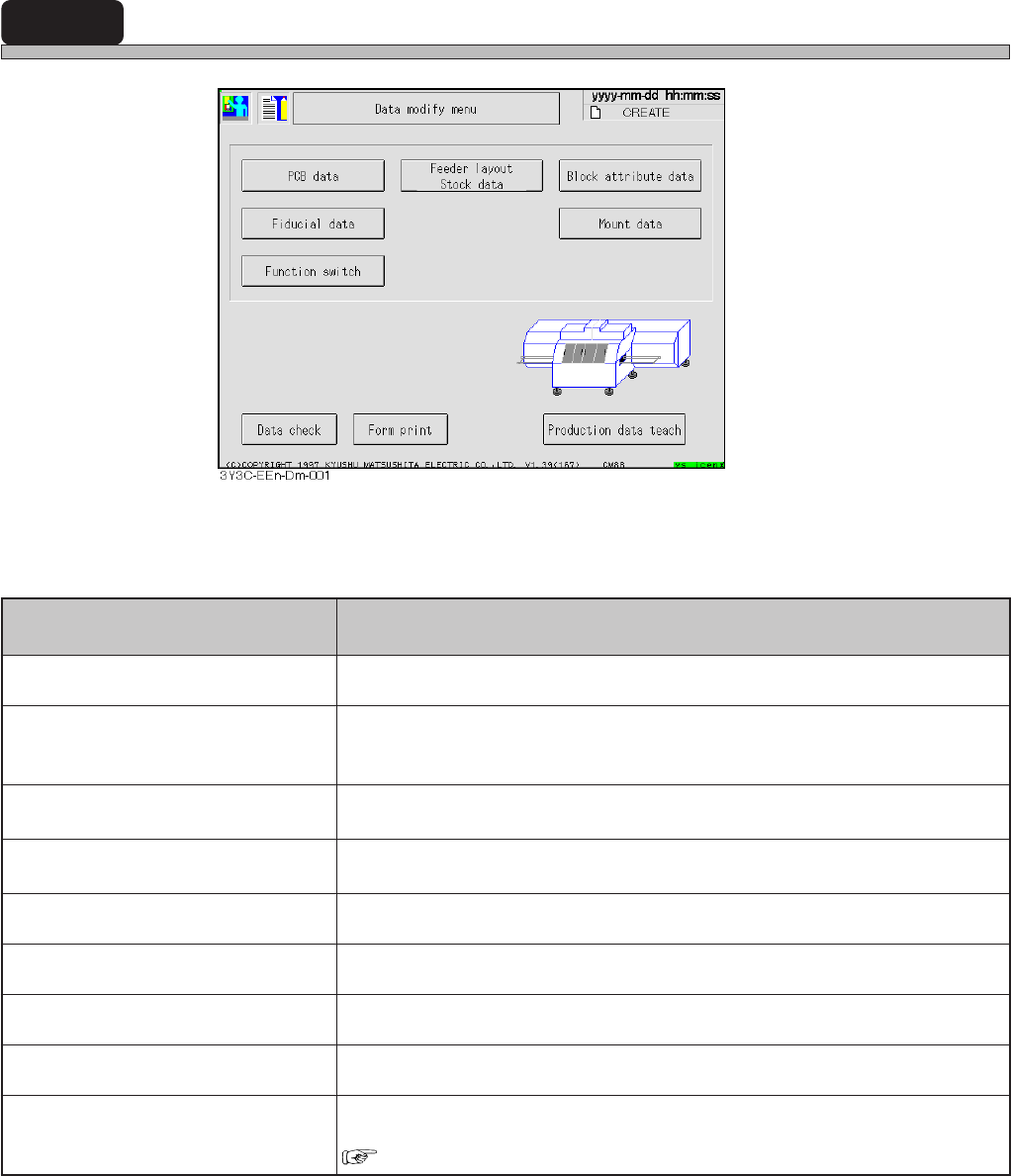

4-1 Data Modification Menu
Data modification menu
3Y3C-038TE
Page 4-3
DATA MODIFICATION
4
4-2 Board Data
Board data is checked.

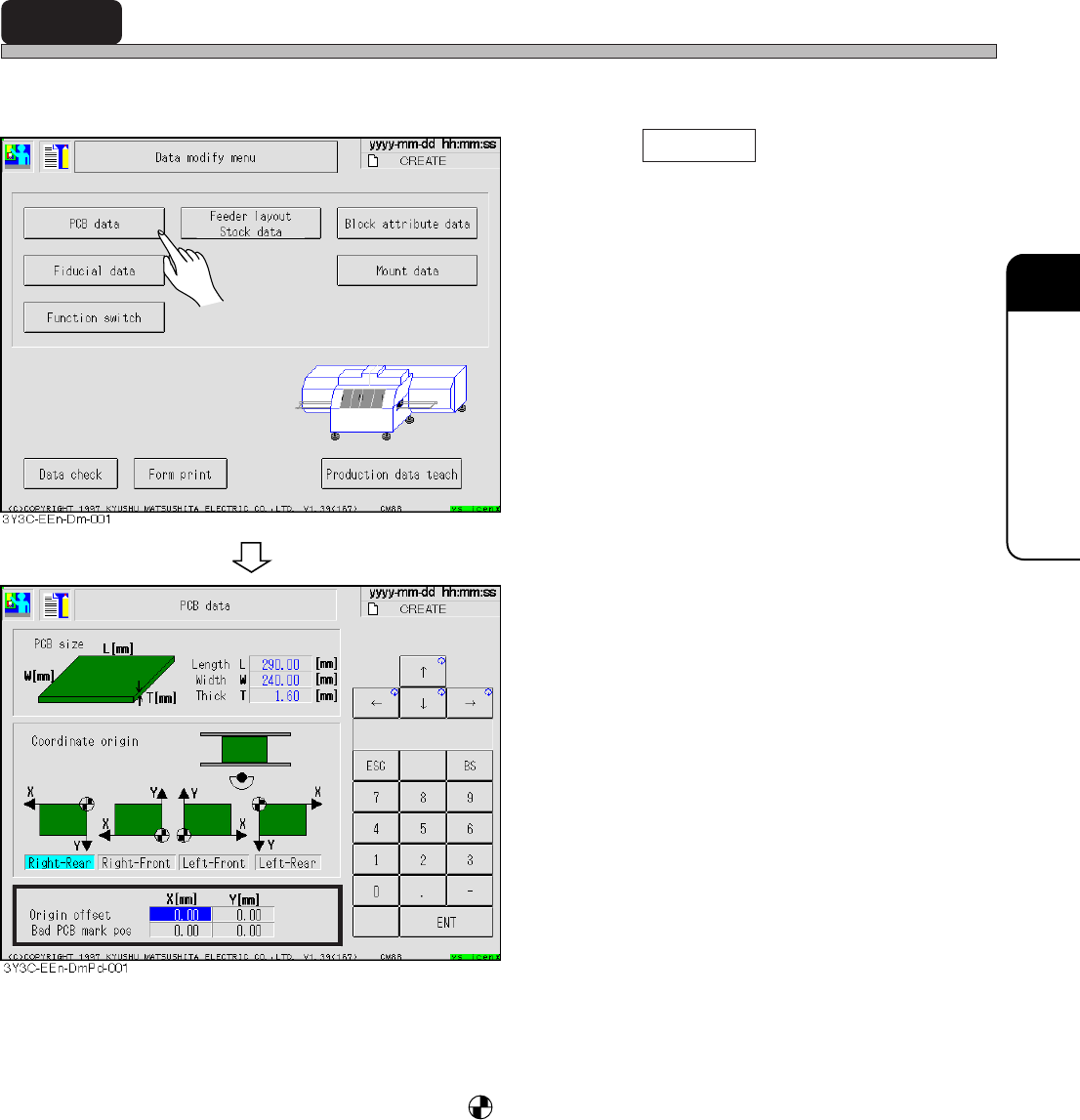

1. Press PCB data .
• Board data screen appears.
2. Correct data if necessary.
• Only data for origin offset and bad board mark
position can be corrected.
• PCB size ..................... L corresponds to X direction and W to Y direction of mount data.
• Coordinate origin....... Origin mark becomes coordinate origin (0, 0), viewed from the front of
machine.
• Origin offset ............... Offset for whole board; mount, board recognition and bad mark coordi-
nates.
• Bad PCB mark pos .... Board with this coordinate mark is judged as bad board and not mounted.
3Y3C-E-EMD04-A01-00
