Page 4-9
DATA MODIFICATION
4
Feeder Layout / Stock Data

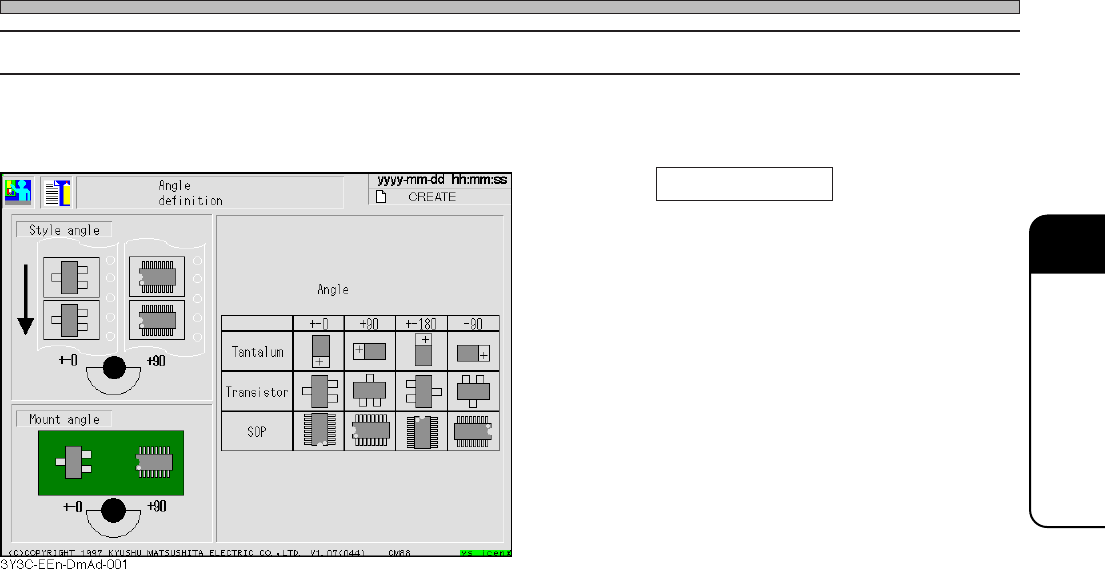

4-4-3 Angle Definition
Angle definition in picking up and mounting the main chip is described.
1. Press Angle definition of the feeder
layout and stock data screen.
• Style angle and mount angle have a common
angle definition.
3Y3C-E-EMD04-A01-00
Page 4-10
4-5 Chip Data
Chip data is checked and corrected.
1. Press .
2. Move cursor to the chip name of data
to change by
, and press
Change .
• Chip data screen appears.
• Nozzle : Nozzle name
• Chip count : Chips per a reel
• REF : Chip recognition reference
number
• Camera : Chip recognition camera num-
ber
• Speed : Speed from pickup to mounting
Feeder layout
Stock data
3Y3C-E-EMD04-A01-01
Page 4-11
DATA MODIFICATION
4
Chip Data
4-5-1 Extension Chip Data
Applicable pin information of chip is checked and corrected.
1. Press Exten chip .
• Pin Missing ............... Select the side to indicate missing pin data
(Every pressing this changes the side as 1 → 2 → 3 → 4 → 1.)
• Pin Skip input............ Specifying the number of pin on the indicated side sets pin present or
pin missing in turn.
• All pin clear ............... All data of missing pin on the indicated side is cleared.
3Y3C-E-EMD04-A01-01
Data of pin pitch and number for each side
including description of sides
Missing pin data for each side
