Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007 Fig. 4-4: "Multiple M onitor Layout" dialog box → Click the Mirrored Monitors button. → Confirm your entry with OK . The touchscreens are…

100%1 / 179
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007

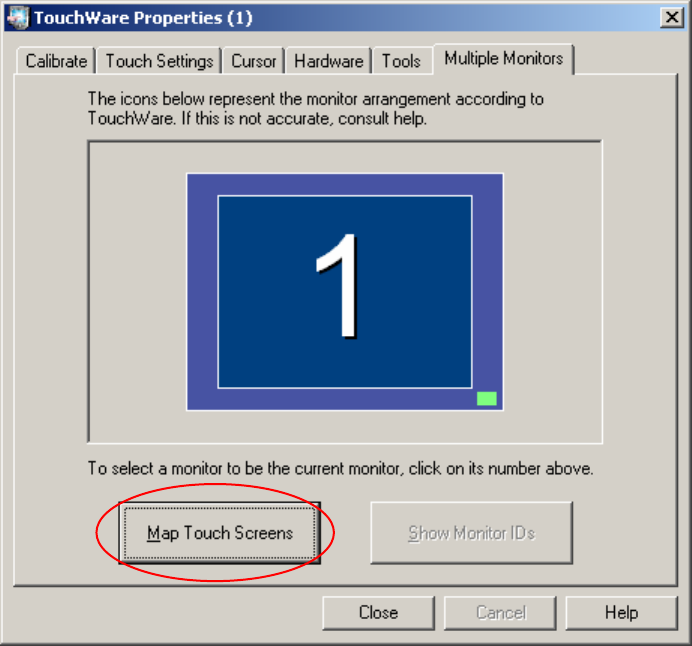

Fig. 4-3: TouchWare Properties – Multiple Monitors tab
→ Click the Map Touch Screens button.
The "Multiple Monitor Layout" dialog box appears.
20 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007

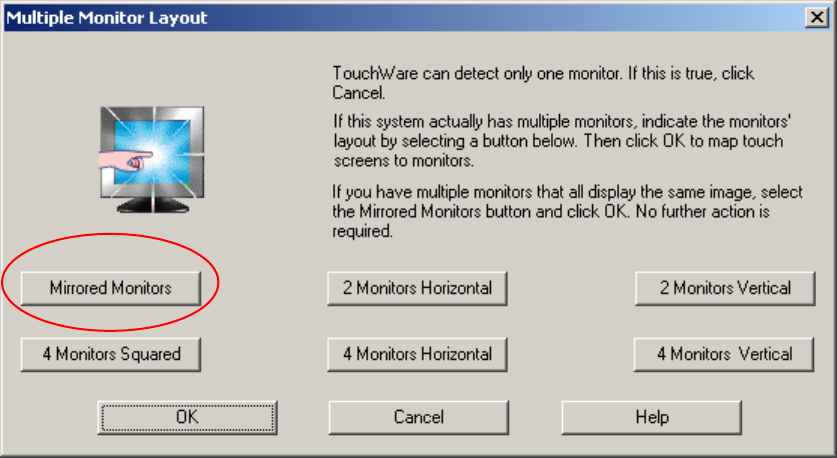

Fig. 4-4: "Multiple Monitor Layout" dialog box
→ Click the Mirrored Monitors button.
→ Confirm your entry with OK.
The touchscreens are now mapped and the "Multiple Monitors" tab is displayed again.
21 of 89
Installation Manual, Station Software Version 601.03 SP4 Edition 05/2007
Fig. 4-5: TouchWare Properties – Multiple Monitors tab (example for Monitor 1)
