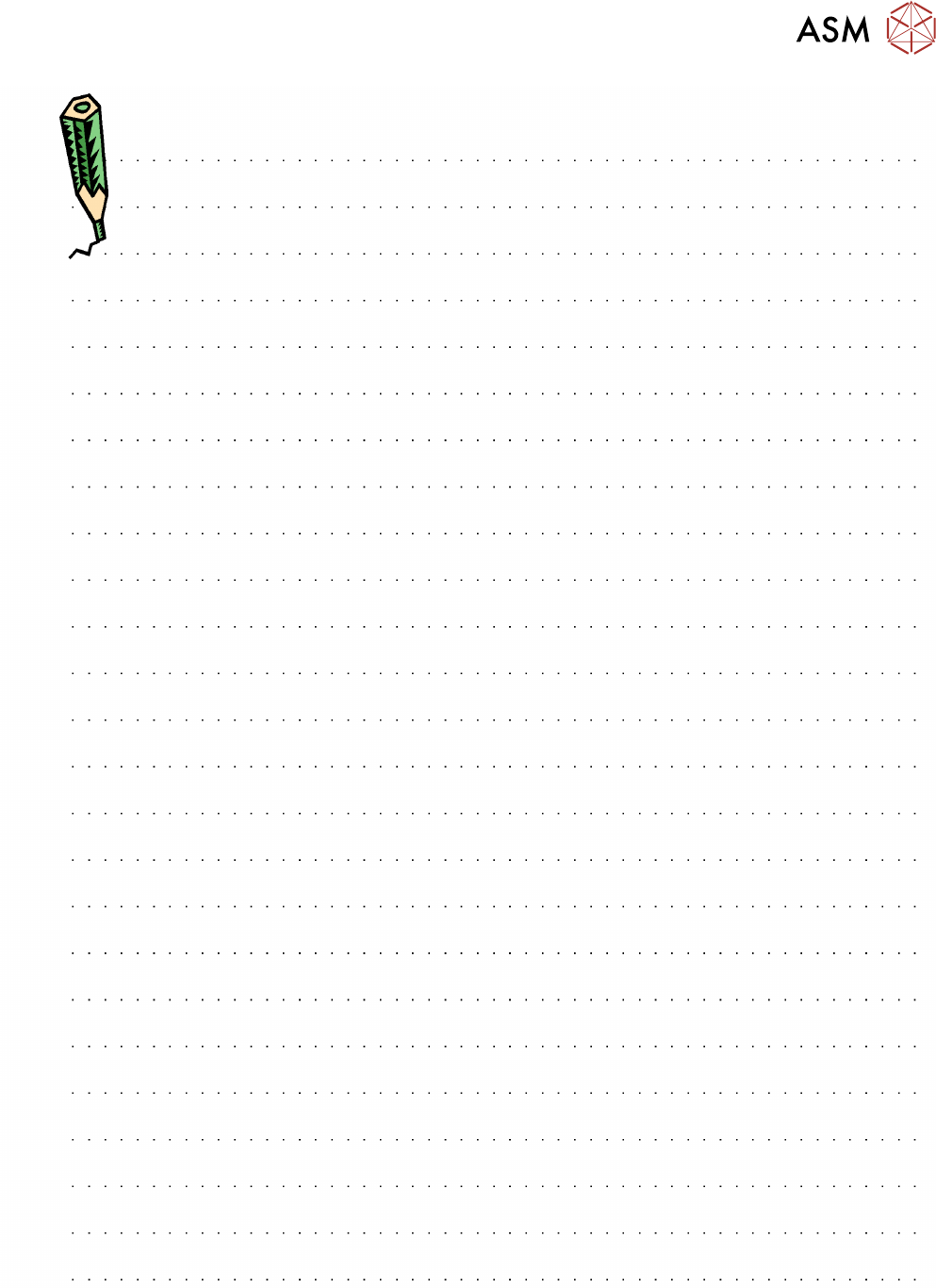

Room for Your Sketches and Notes
Technical Training FSE SIPLACE TX-Series 01/2018 155
9 Station Software Overviews
Room for Your Sketches and Notes
156 Technical Training FSE SIPLACE TX-Series 01/2018
10 JTF-ML
10.1 JTF (JEDEC Tray Feeder) - General Overview
Technical Training FSE SIPLACE TX-Series 01/2018 157
10 JTF-ML
10.1 JTF (JEDEC Tray Feeder) - General Overview
The JTF (JEDEC Tray Feeder) is an option for feeding tray package component.
Tray feeder Unit
●
Only at location
●
In combination with CPP M head in high position.
●
Magazine for 14 and 18 trays available
●
Connection to machine from the side
●
28 feeder slots left next to tray unit
●
An output extension conveyor will be offered with a length 600 mm
●
A special changeover table is required.
●
The tray unit can be removed easily. When removing only the tray unit and not the
changeover table the free space can be used for all non-tape feeders as LDU-X or Glue-
Feeder. If the full feeder capacity shall be used for tape feeder also table and tape empty
guidance need to be exchanged.
General Features
●
Magazines for 18 thin JEDEC Standard Trays and 14 JEDEC Thick Trays for higher compon-
ents.
●
CPU controlled.
A - Backside (inside)
B - Front side (outside)
1. Tray clamp (X&Y)
2. Conveyor
3. Return pusher
4. Feeder base
5. Connection cable and hose
6. Operation panel
7. Operation cover
10.2 JTF (JEDEC Tray Feeder) - Technical Data
JTF Specification extract
Description Data
Electrical 24 VDC +/- 10% - 3 A (Peak), 0,4 [A] Standby,
1 [A] during a tray exchange
Communication serial RS-232, ASCII Protocol
Pneumatic 5.2 – 9 bar (75-130 PSI), < 28.3 Liter/Minute
JEDEC Tray Capacity 18 thin JEDEC Standard Trays
14 thick JEDEC Trays
Standard JEDEC Tray Type JEDEC Standard No. 95-1, IEC 60286-5
Tray Exchange (Slow) for sensitive components About 30 – 50% slower compared to fast
Total weight of total trays 2.7 kg total
Max weight per tray 550 g +/- 10%
