2 Machine Basic Overview
2.3 Overview main components
16 Technical Training FSE SIPLACE TX-Series 01/2018
2.3 Overview main components
Placement Heads
The following placement heads can be installed on TX machines:
C&P20 P Twin Head* C&P20 M2** (red handle)
CPP CPP M** (red handle)
*Twin Heads or stationary cameras are not supported on TX micron
**C&P20 M2 and CPP M only supported by TX micron
PCB Transport System
The following conveyor configurations are pos-
sible:
●
Standard: Dual Conveyor Fixed rail outer
●
Dual Conveyor Fixed rail left*
●
Dual Conveyor Fixed rail right*
●
Flexible Dual Conveyor Fixed rail left*
●
Flexible Dual Conveyor Fixed rail right*
*configurable
2 Machine Basic Overview
2.3 Overview main components
Technical Training FSE SIPLACE TX-Series 01/2018 17
Changeover Tables
●
Each feeder location has a change over
table (COT).
●
Depending on the machine type and head
configuration the COTs have a possible in-
ner and outer machine position.
●
The feeder count depends on the head
configuration.

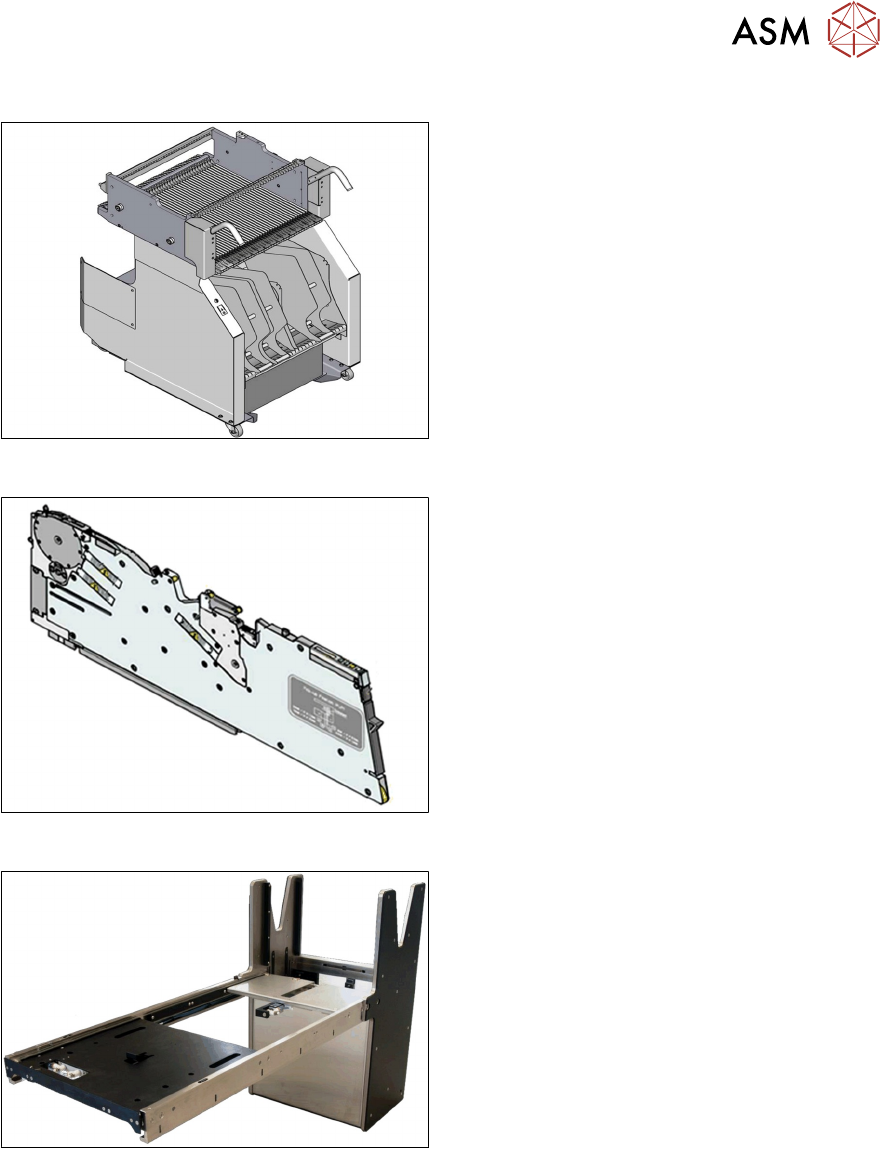

Feeder
The TX uses the SIPLACE X-Feeder sizes and
types:
●
4mm, 8mm, 12mm, 16mm, 24mm
●
32mm, 44mm, 56mm
●
GlueFeeder
●
LDU-X (Linear Dipping Unit)
Tray Carrier
●
JTF-ML
2 Machine Basic Overview
2.3 Overview main components
18 Technical Training FSE SIPLACE TX-Series 01/2018
Shuttle
●
TX machines with serial number ≥ TA500
●
TX micron machines
The power to the shuttle is supplied by the
TX machine, the shuttle is controlled by
the TXmachine software.
Note:
For input, a combination of shuttle and option
LP barcode is possible.
For output, a combination shuttle and conveyor
extension is NOT possible.
Other options
Reject plate Components can be rejected onto a reject tray
sized 110mm x 70mm.
Input conveyor extension Needed for barcode reader
Output conveyor extension Needed for JTF-ML
Interior illumination For service work
Reconfiguration kit for LDU-X
Second light barrier in conveyor placement area For running convoy mode
PCB barcode reader On input conveyor extension
GlueFeeder Glue application with maximum precision
TX micron configurations
TX micron is available in the following configurations:
TX2i micron and TX2 micron (20 / 25μm) or TX2i micron 15μm with a license.
TX micron 20 / 25µm (standard) TX micron 15µm
X/Y Glass scale / encoder X/Y Glass scale / encoder
Sensor module X/Y Sensor module X/Y
X-fiducial bar X-fiducial bar
C&P20 M2 / CPP M C&P20 M2 / CPP M
Option vacuum tooling Vacuum tooling preparation transport TX (stift-
ness lifting table)
Stiftness lifting table Basic pack vacuum tooling
License TX micron 15µ 3Sigma machine con-
nection
Customer specific vacuum tooling with Y-fidu-
cial bar
Optional:
Vacuum tooling TX micron (to measure the ac-
curacy with the new ACT board)
For further options and details refer to the User manual.
