3 Setting Up the Machine
3.1 Setting up the TX Machine
Technical Training FSE SIPLACE TX-Series 01/2018 27
3 Setting Up the Machine
3.1 Setting up the TX Machine
Checking a delivery
●
Store the machine in the packaging crate until room temperature has been reached. There is
otherwise a risk of condensation occurring.
●
Check the delivery for damage.
●
Check the shock sensors.
●
Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
●
Document the result in the installation report / acceptance testing report.
NOTICE
Always use a pallet and a forklift truck to transport the machine over longer distances in or-
der to avoid damaging the machine.
Attachment points on the transport crate or pallet
Attach the forklift truck only at the points identified by (A).
1. Machine feet: The machine feet are fixed with 3 angle brackets on the pallet
2. Component table position on the pallet
WARNING
Make sure that the forks are evenly loaded when you lift the machine.
► A firm support between the forks and machine will prevent the machine tilting when it
is raised. This will also prevent a one-sided load on the machine feet, which would de-
form the fixing of the machine feet.
► It is recommended that a second person watch the machine as it is raised to make
sure that the machine does not tip to one side when lifted by the forklift truck.
3 Setting Up the Machine
3.1 Setting up the TX Machine
28 Technical Training FSE SIPLACE TX-Series 01/2018
1. The balance point of the machine is not the center of the machine.
●
Attention: Don`t use the Input Side of the machine to lift up.
●
Please use the Output Side with a minimum fork of 617mm or with a distance between the
forks of 937mm.
●
Don`t move the machine outside of the center from the machine.
●
Move with fork next to the feet only; there is no other way to move the machine in line.

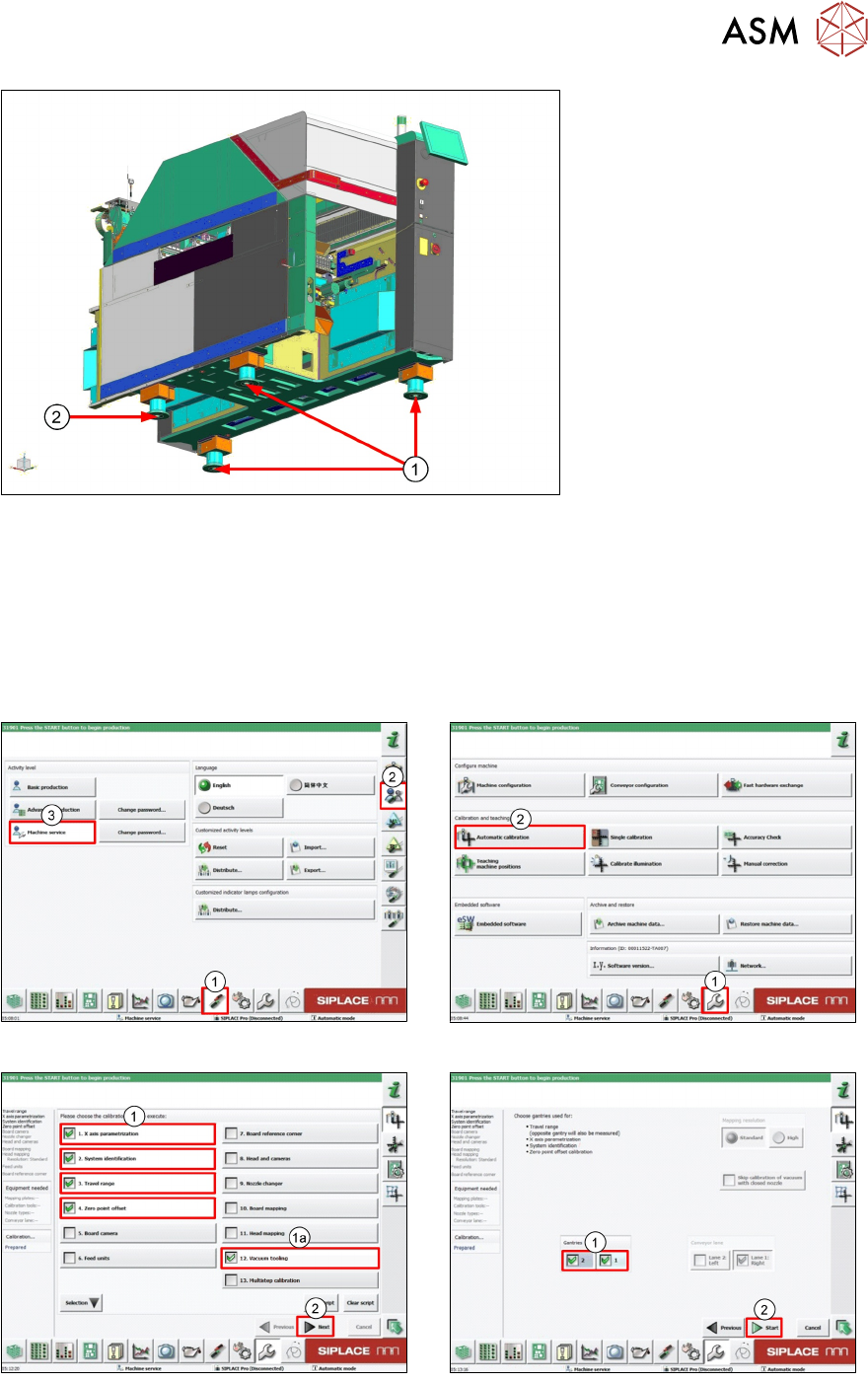

Leveling the machine
Please align the machine with 3 feet (1) and then fix the 4th foot (2) so that there is contact to the
ground.
It is easier to use the 2 feet at location 2 for leveling and fix last the 4th foot at location 1.
3 Setting Up the Machine
3.2 Setting up the TX Machine - Calibrations
Technical Training FSE SIPLACE TX-Series 01/2018 29
Base machine – Machine Setup/ Installation
●
Machine transport height: 900mm to 950mm +- 15 (Only 1 foot type required for all heights
with one adjustable screw).
●
Shaft spirit level should be put onto plate of lifting table.
●
Cover should be open in sector 1 and 2 to reach adjustable screw of feet.
3.2 Setting up the TX Machine - Calibrations
1. Log on as Machine service (1-3). 2. Select Automatic calibration.
