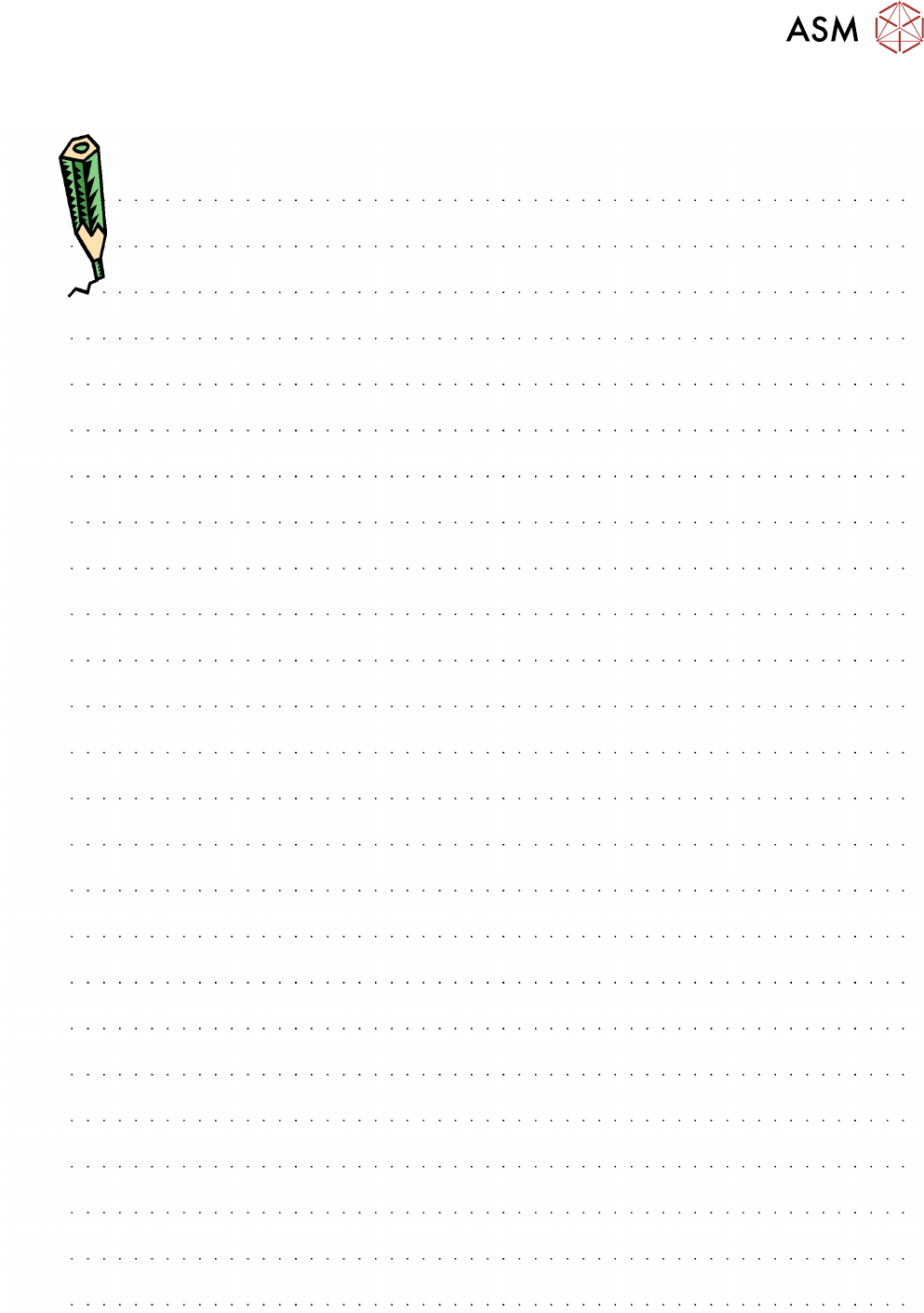

Room for Your Sketches and Notes
Technical Training FSE SIPLACE TX-Series 01/2018 47
Room for Your Sketches and Notes
4 Gantry System

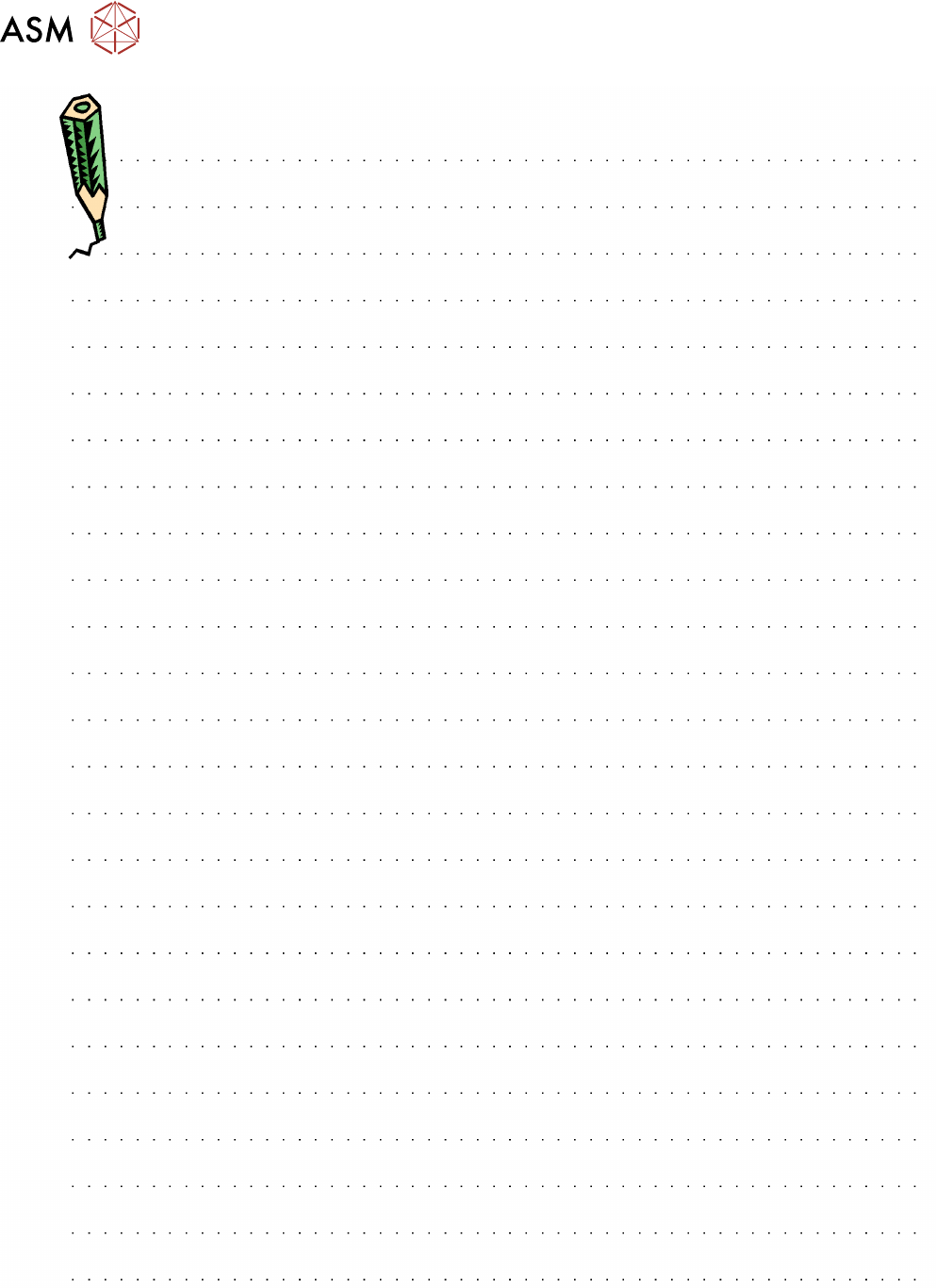

Room for Your Sketches and Notes
48 Technical Training FSE SIPLACE TX-Series 01/2018
5 Component Supply
5.1 Change Over Table (COT)
Technical Training FSE SIPLACE TX-Series 01/2018 49
5 Component Supply
5.1 Change Over Table (COT)
5.1.1 Location
T - Transport direction
1. Location 1 for Change Over Table (COT)
2. JTF-ML
3. Location 2 for Change Over Table (COT)
4. Button for docking/ undocking the Change
Over Table (COT)
5.1.2 Overview COT
1. Handle
2. Reel container/ Cartridge (option)
3. Guide roller
4. Waste bin
5. Actuator/ Safety switch
COT_TX: General
●
The TX COT are not interchangeable with other COT types or machines.
●
Two changeover tables with 40 tracks each can be used on TX1 and TX2 / TX2i machines,
thus a maximum of 80 tracks for 8 mm X feeders are available.
●
Machines with a JEDEC Tray feeder (JTF-ML) installed, only maximum 28 tracks of the COT
on the JTF-ML location can be used.
●
The table is pushed manually into the docking frame and then held in its position by means of
the claws of the docking unit.
COT_TX: Features
●
4 movable wheels for table exchange in narrow space.
●
Standard larger waste bin to reduce work for operator.
●
Optional 7" tape reel holder.
– each tape reel holder can accommodate 2 tape reels, so that up to ten 13" (optional 7")
tape reels can be positioned above the tape container.
Note: Optional 7" tape reel holder can not be used on TX micron.
