6 Conveyor System
6.6 Analysis - Common Error List
Technical Training FSE SIPLACE TX-Series 01/2018 81
Station Software Setting
1. Select fixed conveyor rail
2. Select single mode and fixed rail
3. Select fixed conveyor rail
4. Accept and adjust configuration
6.6 Analysis - Common Error List
Code Error description Possible cause Action
40005 PCB jamming
●
Incorrect Transport
width
●
Wrong PCB size
●
Remove PCB, check PCB
and feed it again
●
Check width of conveyor,
adjust width if necessary
●
Remove PCB by hand, PCB
status always show present
in conveyor GUI
●
Refresh PCB status in GUI
●
Reset / teach board sensor
in I/O of conveyor GUI
4004
4006
35200
During placement, fidu-
cial cannot be found
●
Teach fiducial by GUI
●
Check / adjust width of con-
veyor
●
Remove and check PCB,
feed PCB again
●
Check program from
SIPLACE Pro
40035 During reference run
conveyor edge not found
Width adjust manually
after machine switch off
●
Check and record conveyor
width from GUI
●
Adjust conveyor width manu-
ally to recorded width
●
Calibrate width
6.7 Maintenance
Maintenance item for Conveyor system. For detailed information refer to the maintenance Job card.
Maintenance content Interval Requirement
Vacuum complete conveyor area All Workflows Cleaning wipe/vacuum cleaner
Recirculating ball screws and round shaft Workflow 3 Cleaning wipe, KM-wipe
Preserve the linear guidances Workflow 3
●
SIPLACE cleaning-tissue
●
Protective gloves latex
Clean the guide shafts Workflow 3 Cleaning wipe, KM-wipe
6 Conveyor System
6.8 Excercise: Conveyor System
82 Technical Training FSE SIPLACE TX-Series 01/2018
Maintenance content Interval Requirement
Clean the X-fiducial bar All workflows
●
Cleaning wipe
●
Protective gloves latex
TX micron 15μm:
Clean the -fiducial bar
All workflows
●
Cleaning wipe
●
Protective gloves latex
Lifting table statilizer Workflow 4
●
Ben 32
6.8 Excercise: Conveyor System
1. Which of the following statements is incorrect?
A Dual conveyor with outer fixed rail is the standard configuration for TX.
B Single conveyor is option for TX1.
C The conveyor system is controlled by two TSP420 control boards.
D The fixed rail is fixed by two screws, and it is possible to reconfigure.
2. What action is necessary after exchanging the lifting motor for TX?
A Adjust the belt tension for conveyor transport tooth belt.
B No action required.
C Calibrate the ZPC for the lifting motor.
D Calibrate the ZPC for lifting motor and the current value for lifting motor.
3. What needs to be calibrated after exchange of the vacuum tooling?
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
………………………………………………………………………………………………………
6 Conveyor System

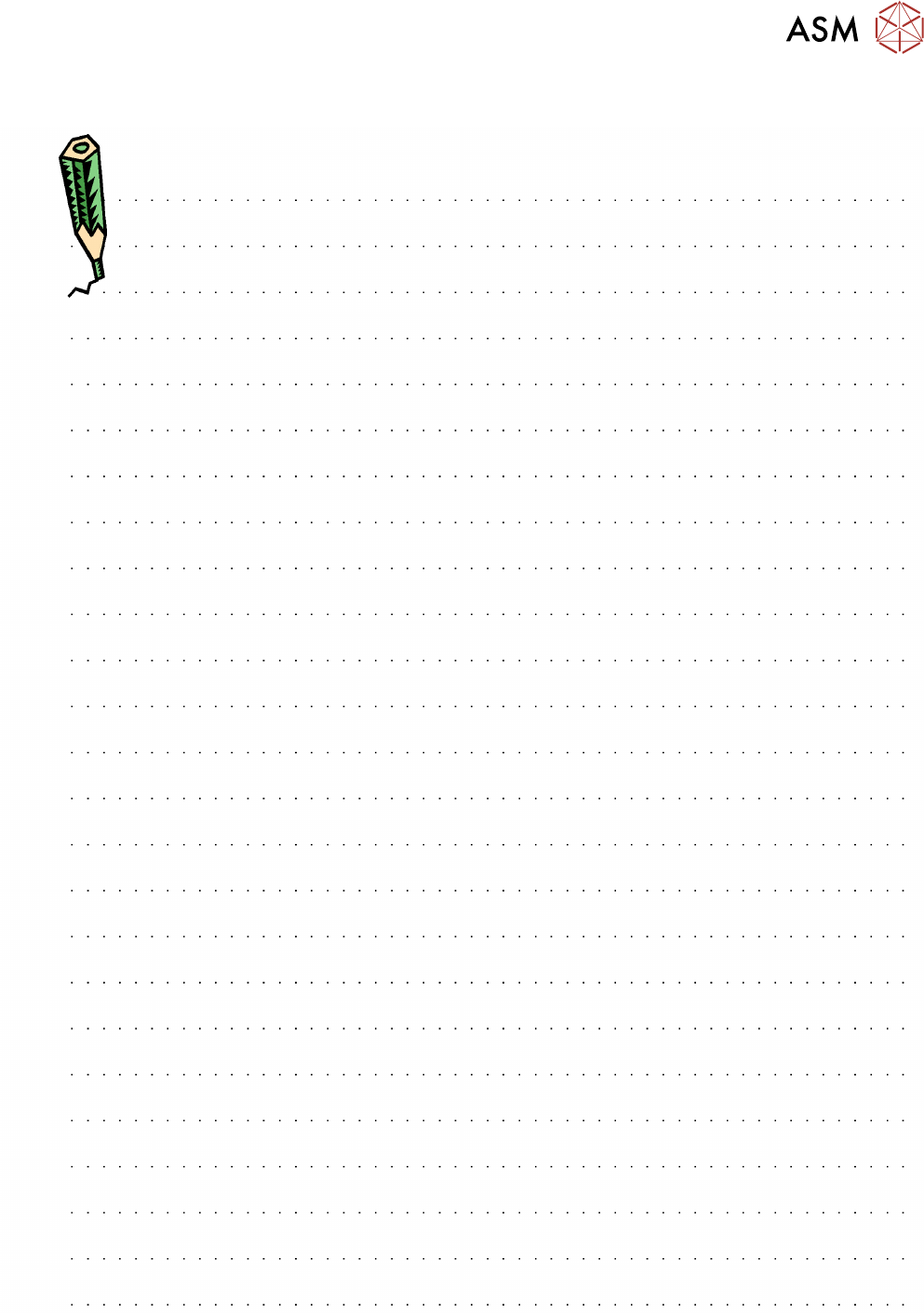

Room for Your Sketches and Notes
