7 Power Supply 7.2 Wiring colour description 88 Technical Training FSE SIPLACE TX-Series 01/2018 Voltage Colour Code Comment GND, 0 V White WH Control general Yellow YE Control, Inputs, Outputs, Emergency stop
7 Power Supply
7.2 Wiring colour description
Technical Training FSE SIPLACE TX-Series 01/2018 87
7.2 Wiring colour description
There is wire colour code to show voltage level of specific single wires. So you can identify voltage
levels at tested parts using wire colors:
Voltage Colour Code Comment
Mains Orange OR All circuits that will show voltage even if
main switch is OFF
Power general Black BK
Neutral line Light blue BU Europe:
According to EN and CE standards
wire color has to be light blue.
USA / Canada:
According to UL standards wire color
has to be white;
PE Green/Yel-
low
GNYE
DC 300 V Pink PK 300V DC link voltage
DC 160 V Grey GY 160V DC link voltage
DC 42 V Violet VT 42V DC link voltage conveyor and
head drives; vision flash voltage
DC 28 V Brown BN 28V FCU supply voltage
DC 24 V Brown BN
DC 24 V safety con-
trolled
Red RD
7 Power Supply
7.2 Wiring colour description
88 Technical Training FSE SIPLACE TX-Series 01/2018
Voltage Colour Code Comment
GND, 0 V White WH
Control general Yellow YE Control, Inputs, Outputs, Emergency
stop
7 Power Supply
7.3 Voltage Overview Block diagrams
Technical Training FSE SIPLACE TX-Series 01/2018 89
7.3 Voltage Overview Block diagrams
7.3.1 Circuit Diagram of Power Supply TX

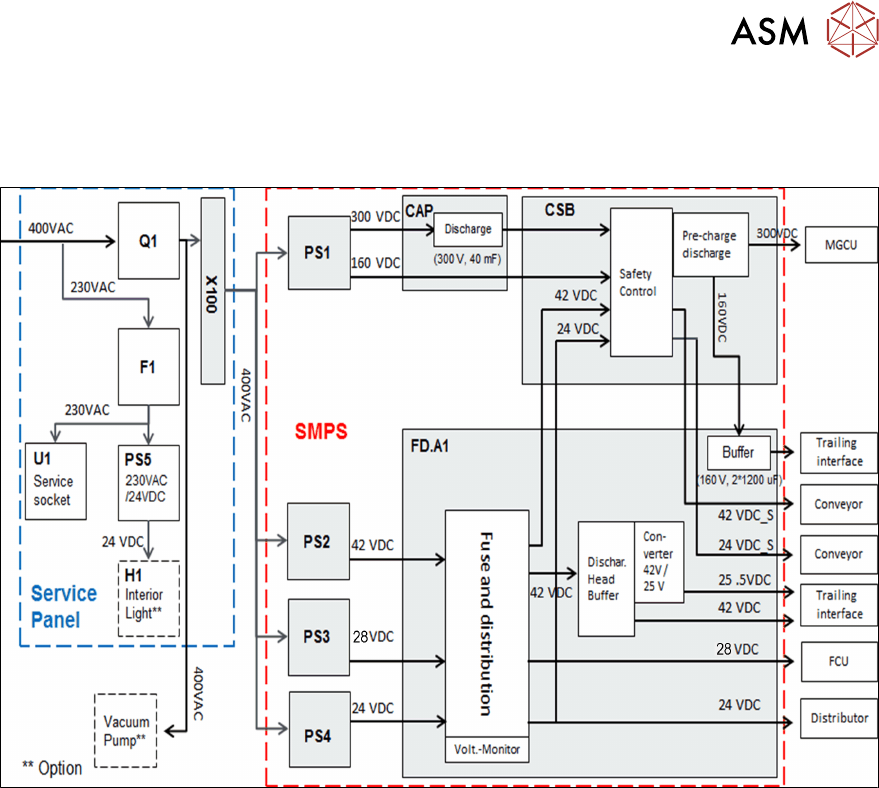

The diagram above shows a simple overview of the voltage generation with the SMPS.
●
The power pack PS1 converts the mains input AC voltage into 300VDC (for intermediate cir-
cuit voltage man axes) and 160VDC (for intermediate circuit voltage head axis).
●
The 300VDC is run via the backup battery CAP1 to the CSB (Contactor-based Safety
Breaker) the voltage is charged/discharged in a controlled manner via the pre/discharge board
A2 and the energy is backed up by the backup battery CAP1.
●
The power pack PS2 converts the mains input AC voltage into 42VDC.
●
One link of the 42VDC voltage is run via the CSB from where it is then run back to the FDB
and distributed as 42VDC_S (switched).The other link is directly to the discharge head buffer.
●
The power pack PS3 converts the mains input AC voltage into 28VDC.
●
The power pack PS4 converts the mains input AC voltage into 24VDC.
●
This 24VDC voltage is run via the CSB, from where it is then run back to the FDB and distrib-
uted as 24VDC_S (switched).
●
All voltages are protected by the Fuse & Distribution Board (FDB).
