7 Power Supply 7.4 CAP Function Description 96 Technical Training FSE SIPLACE TX-Series 01/2018 7.4 CAP Function Description If energy is needed to accelerate the axes (gantry jump), energy is taken from the capacitor ba…
7 Power Supply

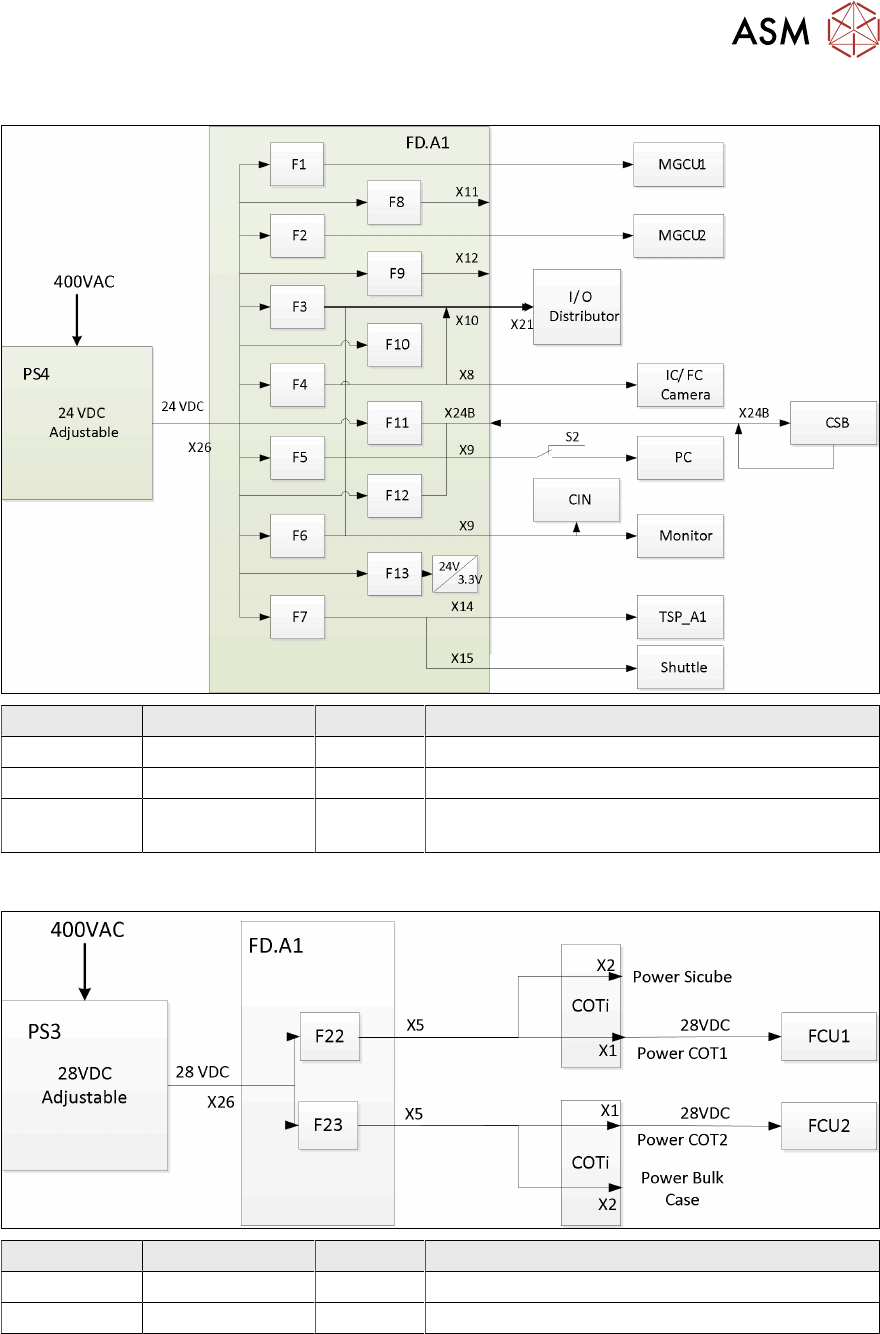

7.3 Voltage Overview Block diagrams
Technical Training FSE SIPLACE TX-Series 01/2018 95
Fuse F11 - F13
Voltage Type Fuse Usage
24 VDC Switched F11 Supply voltage for safety relays (CSB)
24 VDC Switched F12 Internal supply voltage for safety control
24 VDC Unswitched F13 Internal supply voltage for diagnostic FD.A1
(24V/3.3V)
7.3.6 28 VDC Unswitched
Voltage Type Fuse Usage
28 VDC Unswitched F22 Supply Voltage FCU Location 1 (min 26.8V)
28 VDC Unswitched F23 Supply Voltage FCU Location 2 (min 26.8V)
If the PS3 is not correctly set to 28 VDC (min output voltage 26.8V) the FCU will not function reli-
ably!
7 Power Supply
7.4 CAP Function Description
96 Technical Training FSE SIPLACE TX-Series 01/2018
7.4 CAP Function Description
If energy is needed to accelerate the axes (gantry jump), energy is taken from the capacitor battery
(CAP) (pre-charge 300VDC/ -Q)
During braking, the braking energy is fed back by the motors and recharged into the backup battery
(+Q), in a controlled state via the discharge control (discharge 300VDC).
7 Power Supply
7.5 Overview of Fuse board FD:A1
Technical Training FSE SIPLACE TX-Series 01/2018 97
7.5 Overview of Fuse board FD:A1
1. Connector to CSB unit 5. 42V head buffer caps 9. Head Boost converter in-
put 42VDC output
25,5VDC
2. Low voltage input 6. Diagnostic unit
3. Buffer capacitor ,160VDC 7. Output voltages connectors 10. PE connection
4. Low voltage fusing array* 8. Diagnostic data connector 11. Box PC voltage switch
*Fuse types: FUSEHD PCB (5X20MM Vertical)
F1 24 V DC 6.3A MGCU1
F2 24V DC 6.3A MGCU2
F3 24 V DC 6.3A Service
F4 24 V DC 6.3A Distributor Power Fail
F5 24 V DC 6.3A IBASE PC
F6 24 V DC 6.3A Option 3D co-planarity PC
F7 24 V DC 6.3A Conveyor
F8 24 V DC 6.3A Gantry 1
F9 24 V DC 6.3A Gantry 2
F10 24 V DC 0.5A Internal – power fail (internal CSB)
F11 24 V DC 6.3A SSK_Ready
F12 24 V DC 6.3A Safety supply CSB
F13 24 V DC 3A SMD Internal fuse 24V diagnosis replace PCB if defect
F14 42 V DC 6.3A Gantry cable 1 HCU 25,5V converted from 42V
F15 42 V DC 6.3A Gantry cable 2 HCU 25,5V converted from 42V
F16 42 V DC 10A Conveyor drives
F19 160 V DC 6.3A Head axes gantry 1
F20 160 V DC 6.3A Head axes gantry 2
F22 28 V DC 6.3A FCU1
F23 28 V DC 6.3A FCU2
