KM8_1_1
1 1 Base Assy . Base KM8-101007 OLD 38 8 3 19 41 18 22 1 5 42 24 23 9 28 21 20 43 7 37 38 2 26 37 7 43 27 6 27 34 33 29 53 52 40 17 45 46 4 13 8 25 51 49 50 48 44 44 28 5 1 1 12 10 39 31 36 35 16 32 30 29 47 15 14 54 25 …
1
1

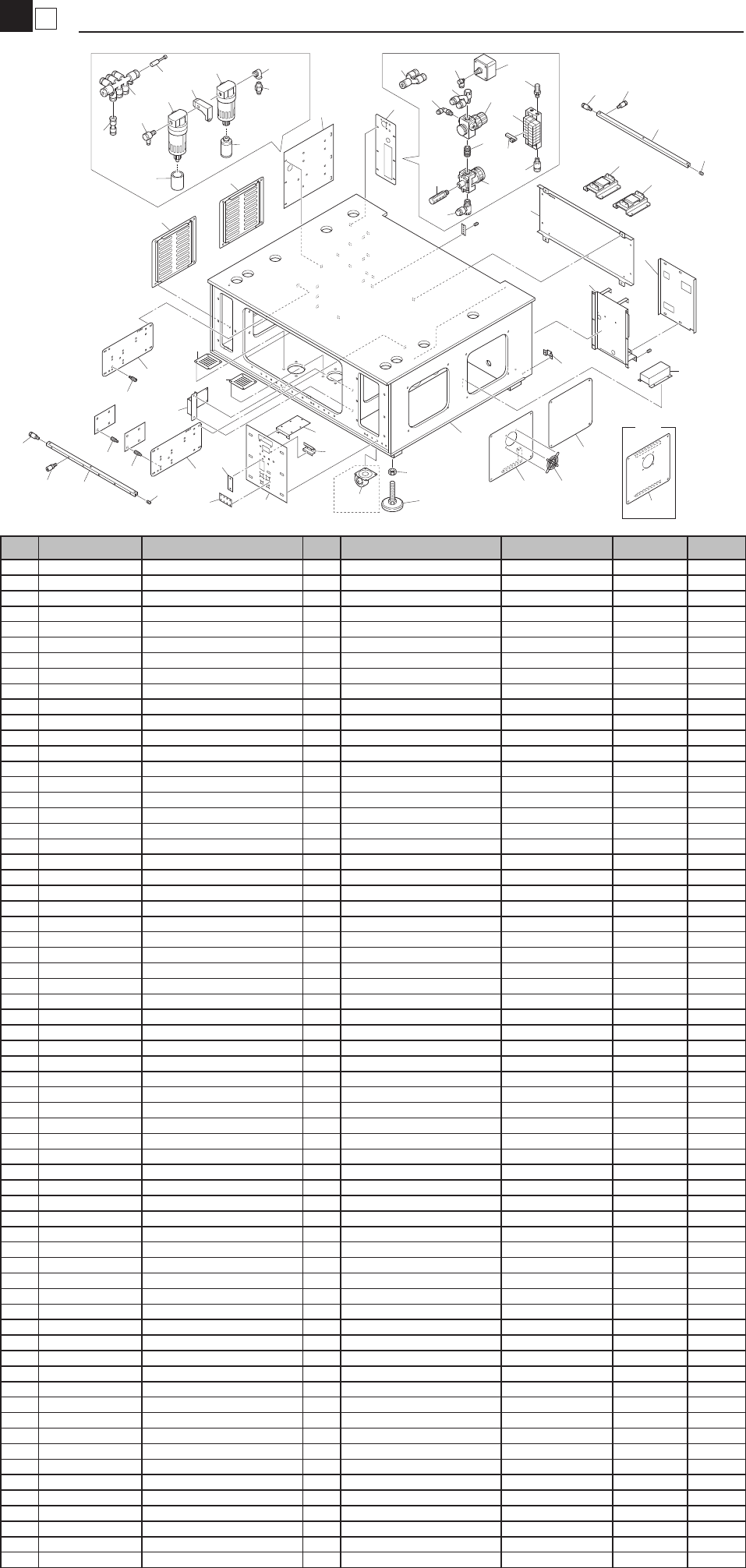

Base Assy.
Base
KM8-101007
OLD
38
8
3
19
41
18
22
1
5
42
24
23
9
28
21
20
43
7
37
38
2
26
37
7
43
27
6
27
34
33
29
53
52
40
17
45
46
4
13
8
25
51
49
50
48
44
44
28
5
11
12
10
39 31
36
35
16
32
30
29
47
15
14
54
25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KM8-M1101-00X BASE(1/2, 2/2) 1
1-1 KM8-M1101-01X BASE 1 (2001/1/17) M110061 OK
2 KM0-M1120-01X PLATE 10 1
3 KM8-M1112-00X PLATE 2 1
4 KM0-M1113-01X PLATE 3 1
5 KG7-M1114-00X PLATE 4 2
6 KG7-M1115-00X PLATE 5 1
7 KM0-M1141-00X MANUFOLD 2
8 KM8-M1154-00X BRKT. POWER SUPPLY 2
8-1 Delete (2001/3/7) M120135
9 KG7-M1342-01X BRACKET F/D 1
10 KG7-M8501-00X AIR FILTER 1 F300-03-BG-A
11 KG7-M8502-00X MIST FILTER 1 MF300-03-A
12 KG7-M8503-00X MODULE ADAPTER 1 8-30D3
13 KG7-M8504-00X REGULATOR 1 R300-03
14 KG7-M8512-00X JOINT 1 30PM
15 KG7-M8513-00X JOINT 1
16 KM0-M8582-00X VALVE 1 040M-12AJ1-7
17 KG7-M8596-00X PRESURE GAUGE 1
18 KM5-M1118-00X PLATE 8 1
19 KM5-M1119-00X PLATE 9 1
20 KL0-M1122-00X PLATE, PLUG SMEMA 1
21 KM0-M112A-00X PLATE, SP 1
21-1 Delete (1996/7/24) M670057
22 KG2-M1125-00X PLATE, CLAMP 1
23 KG2-M1128-00X B R A C K E T , S P E E D 1
24 KM0-M1142-00X CASTER 6
24-1 Delete (2001/9/28) M190104
25 KM0-M1151-01X PLATE,SIDE 1 1
25-1 KM0-M1151-02X PLATE,SIDE 1 1 (2007/6/6) MD50118 NG
26 KM0-M1152-01X PLATE, SIDE 2 1
27 KM0-M1153-01X PLATE, SIDE 3 2
28 KM0-M1154-01X PLATE, BOTTOM 1 2
29 $SL12-03 JOINT 2
30 $SLY10-03 JOINT 1
31 $SL4-M5 JOINT 1
32 $TL4-02 JOINT 1
33 $UEDW10-8 JOINT 1
34 $UP10 JOINT 1
35 $SL8-01 JOINT 1
36 $KM-11 MUFFLER 1
37 $TSS4-01 JOINT 12
38 $TSH8-01 JOINT 2
39 $UY4 JOINT 2
40 $USD8-6 JOINT 2
41 KM5-M4184-00X COVER, NOISE FILTER 1
41-1 Delete (2001/2/7) M120037
42 KK0-M1180-01X LEVELING, BOLT 6
42-1 KV7-M1180-01X LEVELING BOLT ASSY 6 (2000/2/4) M020021 OK
43 K40-M8598-00X PLUG 1 2
44 90561-03J10 SPACER, 2 8
44-1 90563-03J100 SPACER BOLT 8 (2001/9/1) M180147 OK
45 KH5-M8501-00X EXHAUST VALVE 1 300V-03
46 KH5-M8531-00X FITTING 1 1
47 $KM-23 MUFFLER 1
48 91C00-04235 SPACER : M4X35L 4
48-1 90563-04J350 SPACER BOLT 4 (2001/9/4) M180150 OK
49 K33-90M28-00X NUT HEX.: 6
49-1 99702-20600 NUT,HEXAGON 6 (2007/11/21) MD00121 OK
49 K33-90M28-00X NUT HEX. 6
50 KM8-M1116-00X PLATE 6 1
51 KJ0-M4187-00X FAN GUARD 2
52 KG7-M8502-40X MIST FILTER ELEMENT 1
53 KG7-M8501-40X AIR FILTER ELEMENT 1
54 KG2-M8582-40X VALVE 1 SPARE
