5OM-1610
2-2
Sensor and Load Layout
0911-001

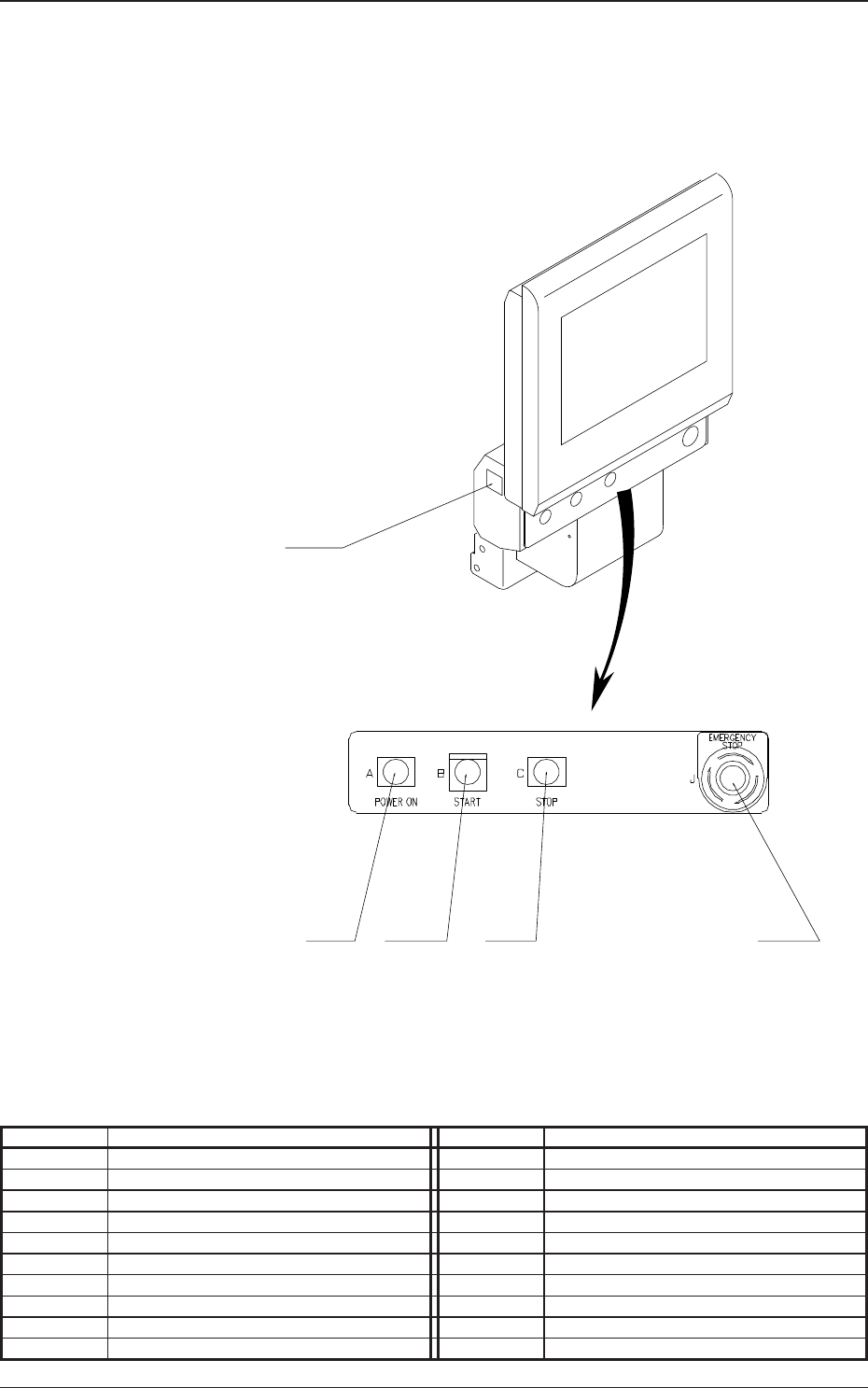

Panel Layout
S111F
S101F S103F
S102F
H102F S105F
Symbol Name Symbol Name
S101F POWER ON PB (Front)
S102F START (Front)
H102F START (Front) LED
S103F STOP (Front)
S105F Emergency Stop Operation Switch (Front)
S111F READY (Front) [Feeder Ready]
5OM-1610
2-3
Sensor and Load Layout
0911-001

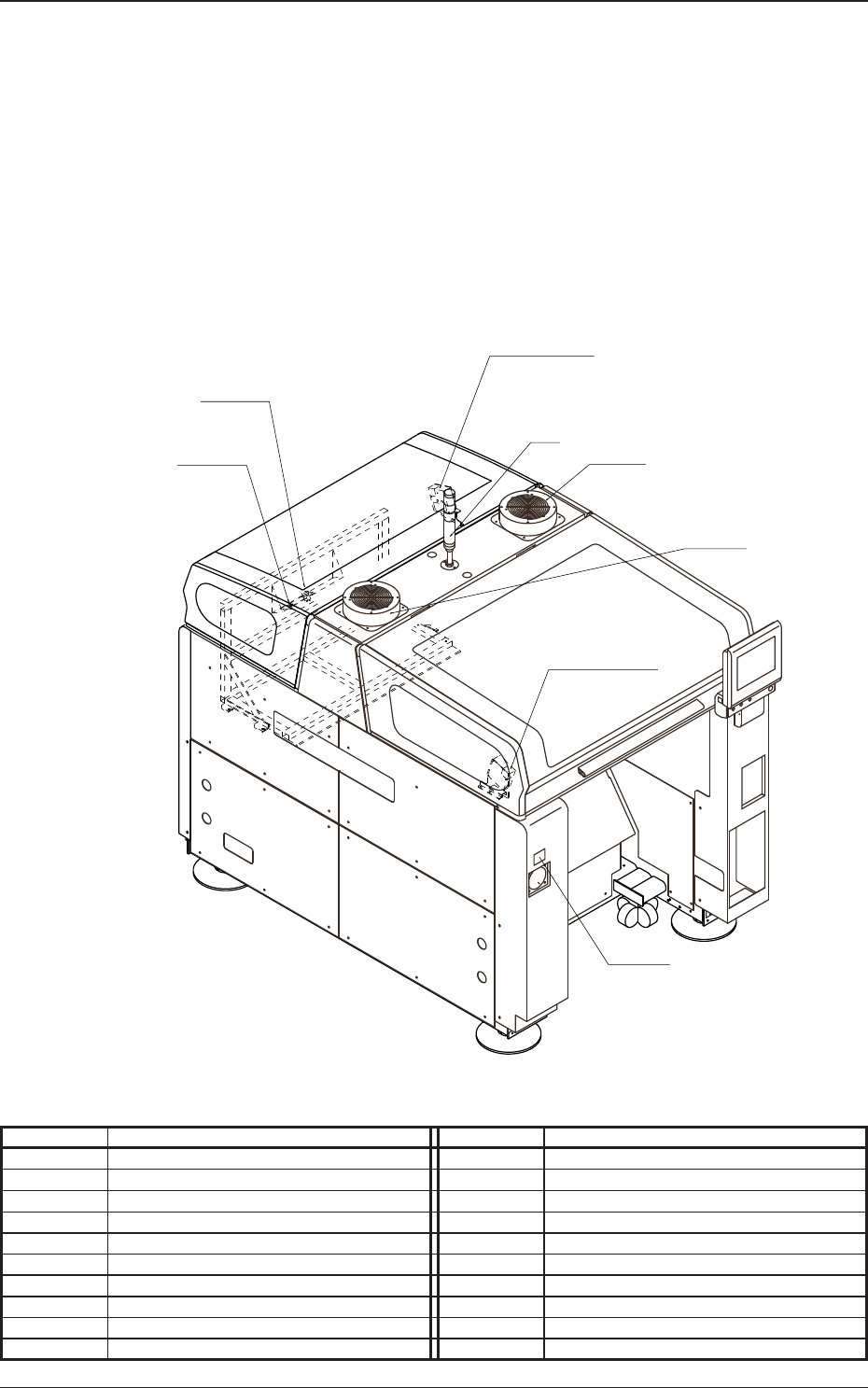

Cover Layout
S132 (Rear Side)
S132 (Front Side)
M102
S112F
H1
M101
S112B
S105B
Symbol Name Symbol Name
H1 Light Tower
S112F STAGE READY (Front) S112B STAGE READY (Rear)
S132 COVER LOCK (Front Side) S132 COVER LOCK (Rear Side)
M101 Ceiling Cooling Fan (Left) M102 Ceiling Cooling Fan (Right)
S105B Emergency Stop Operation Switch (Rear)
5OM-1610
2-4
Sensor and Load Layout
0911-001

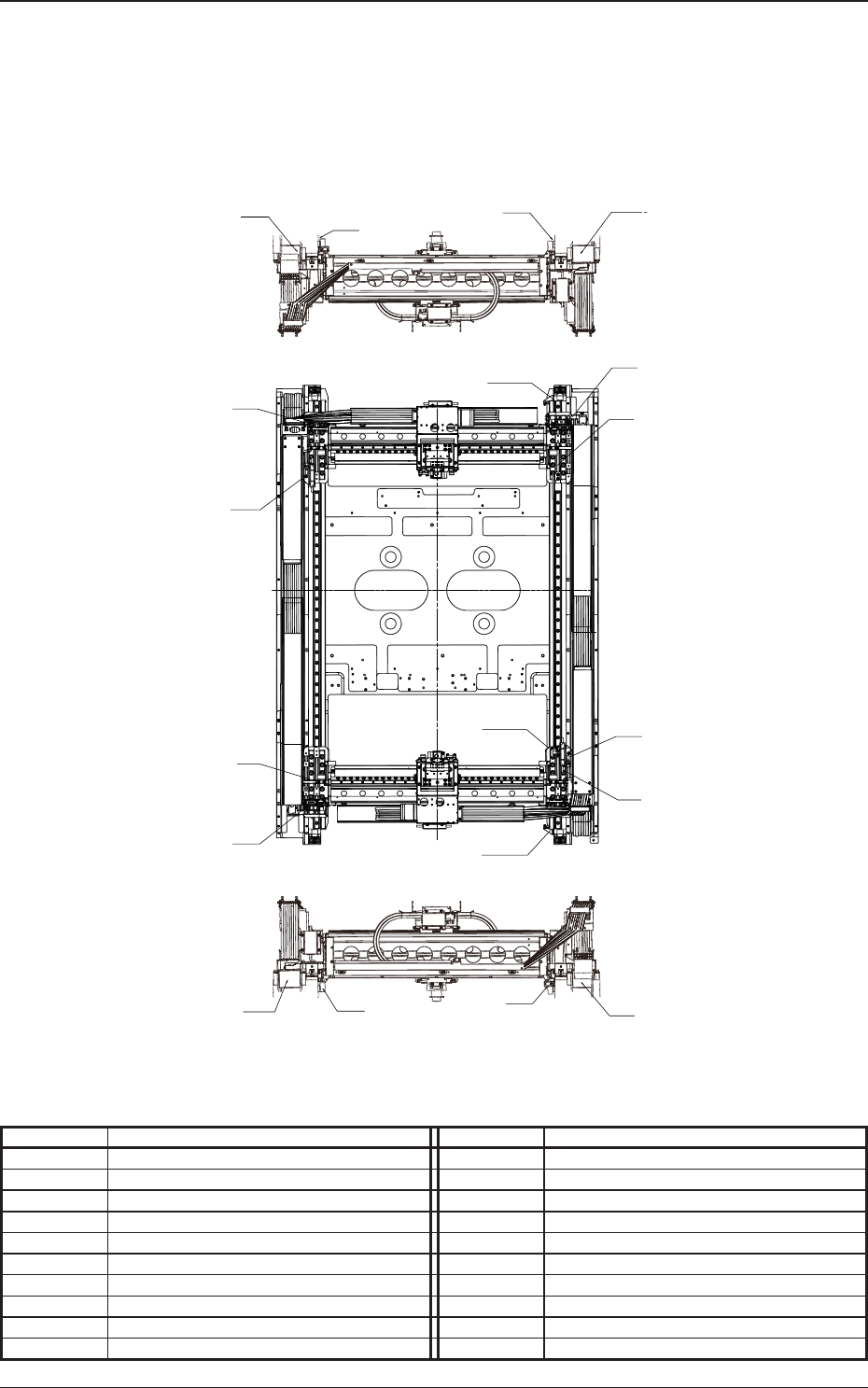

Beam Y-Axis Layout
Symbol Name Symbol Name
M22 Y1-Axis Motor
M23 Y2-Axis Motor
U22 Y1 Linear Scale Head (Converter)
U2
3 Y2 Linear Scale Head (Converter)
B2201
Y-Axis Limit (+)
B2202 Y-Axis Approach Detection
B220
3 Y-Axis Limit (-)
Ｍ22
U22
U23
M23
Y2
U23
U22
Y1
U23
U22
M22
U22
U23
M23
Y2
Y1
B2203
B2202
B2201
