5OM-1610 2-1 1 Sensor and Load Layout 091 1-001 High Speed Head Section Layout (Nozzle U/D Section) B3105 B3102 B3104 M33 Symbol Name Symbol Name M33 Nozzle U/D (NL) Motor B3102 Nozzle U/D Interlock B3104 Nozzle U/D (+) …
5OM-1610
2-10
Sensor and Load Layout
0911-001
High Speed Head Section Layout (Nozzle Selection Section)
M32
B3101
Symbol Name Symbol Name
M32 Nozzle Selection (NS) Motor
B3101 Nozzle Selection Position Detection
5OM-1610
2-11
Sensor and Load Layout
0911-001

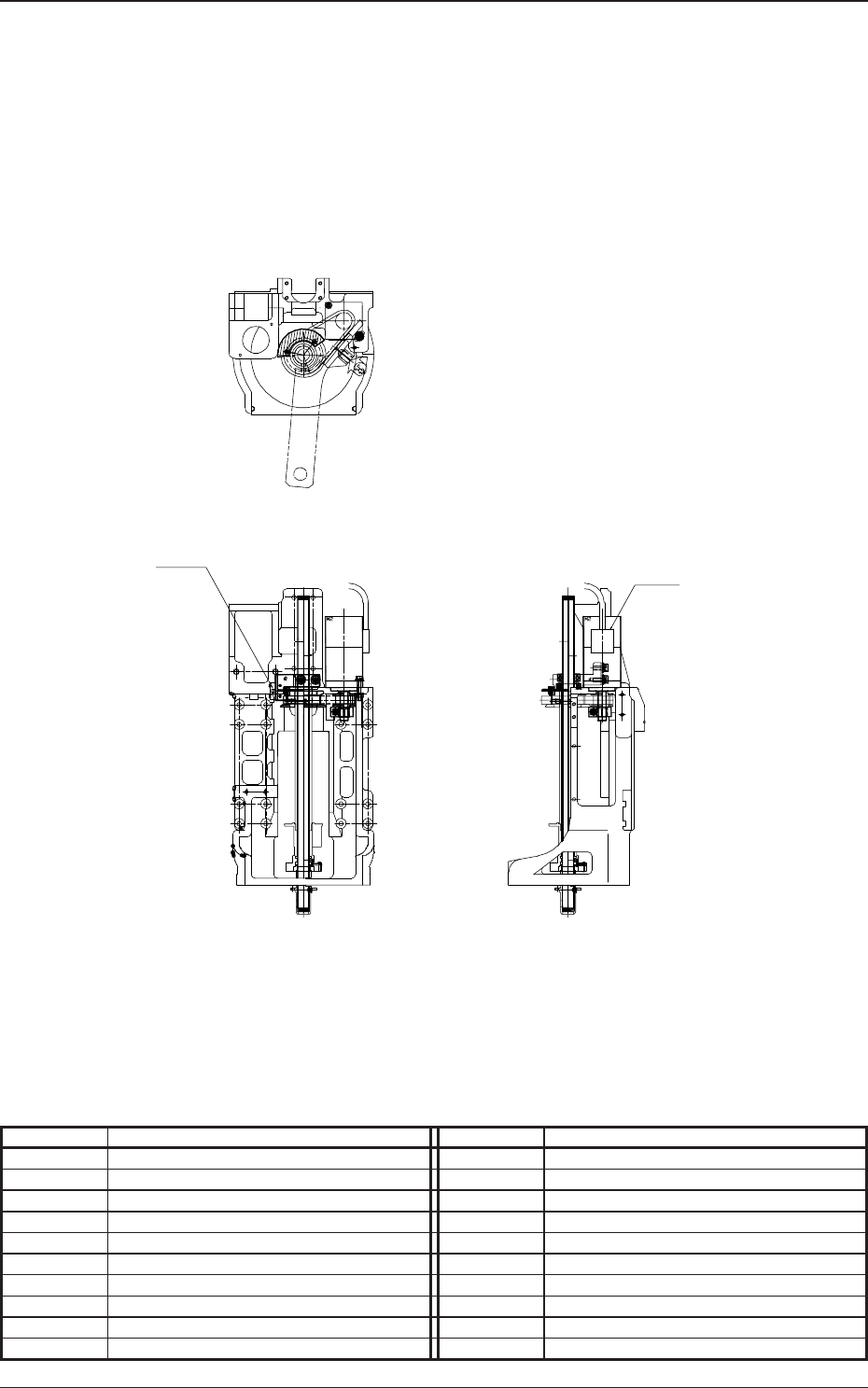

High Speed Head Section Layout (Nozzle U/D Section)
B3105
B3102
B3104
M33
Symbol Name Symbol Name
M33 Nozzle U/D (NL) Motor
B3102 Nozzle U/D Interlock
B3104 Nozzle U/D (+) Limit
B3105
Nozzle U/D (-) Limit
5OM-1610
2-12
Sensor and Load Layout
0911-001
High Speed Head Section Layout (Head U/D Section)
M34
B3106
B3103
Symbol Name Symbol Name
M34 Head U/D (HL) Motor
B3103 Head U/D (+) Limit
B3106 Head U/D (-) Limit
