DECAN S1 Operation Handbook
3-14
Chapter 3
This chapter describes the production procedure.
Production
Next Generation, Multi-Functional Placer
Preparation For Operation Ⅱ > Download the PCB file
Preparation For Operation Ⅱ
Production

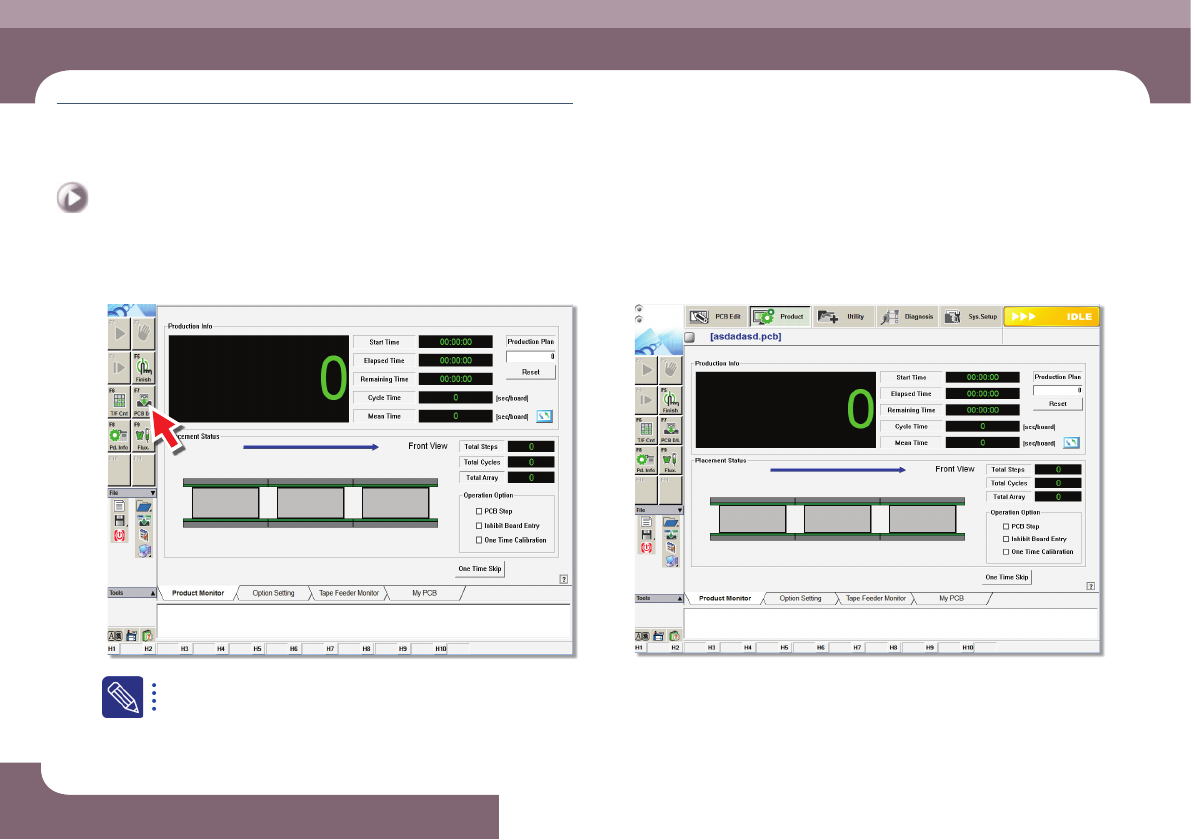

Step 5.
Select 'PCB D/L'
The file with extension of .opt is the optimization completed file.
Step 6.
The completion of Download the PCB file
ㆍ The PCB file Download is complete.
DECAN S1 Operation Handbook
3-15
Chapter 3
This chapter describes the production procedure.
Production
Next Generation, Multi-Functional Placer
Preparation For Operation Ⅱ > Adjusting the conveyor width
Preparation For Operation Ⅱ
2. Adjusting the conveyor width

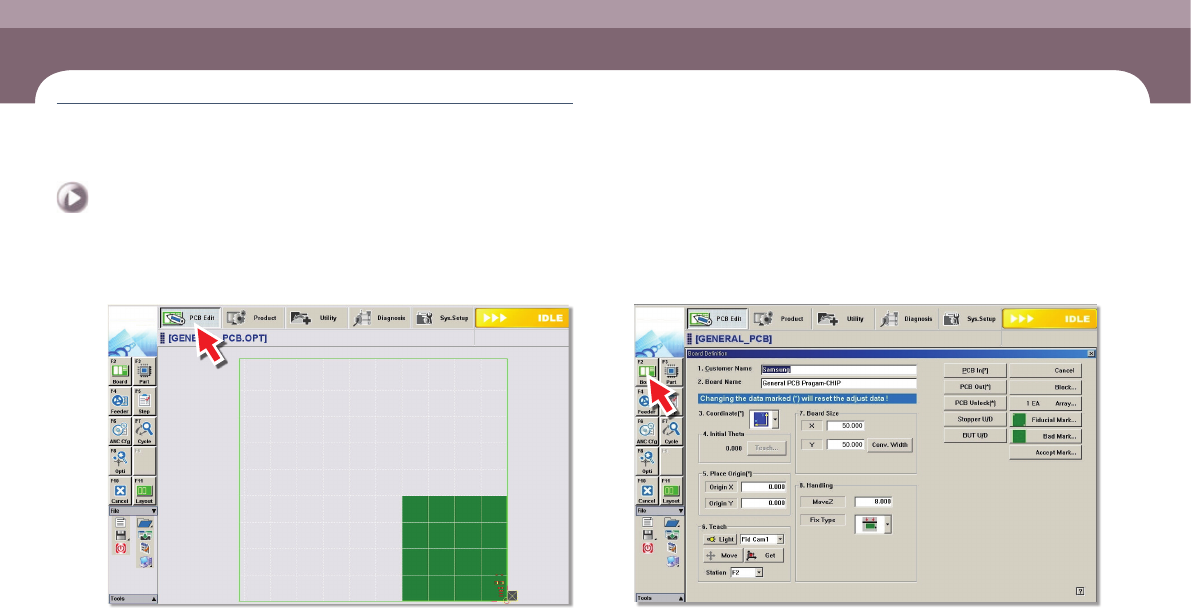

Step 1.
Select the 'PCB Edit' menu
Step 2.
Select the 'Board' submenu
DECAN S1 Operation Handbook
3-16
Chapter 3
This chapter describes the production procedure.
Production
Next Generation, Multi-Functional Placer
Preparation For Operation Ⅱ > Adjusting the conveyor width
Preparation For Operation Ⅱ
Production

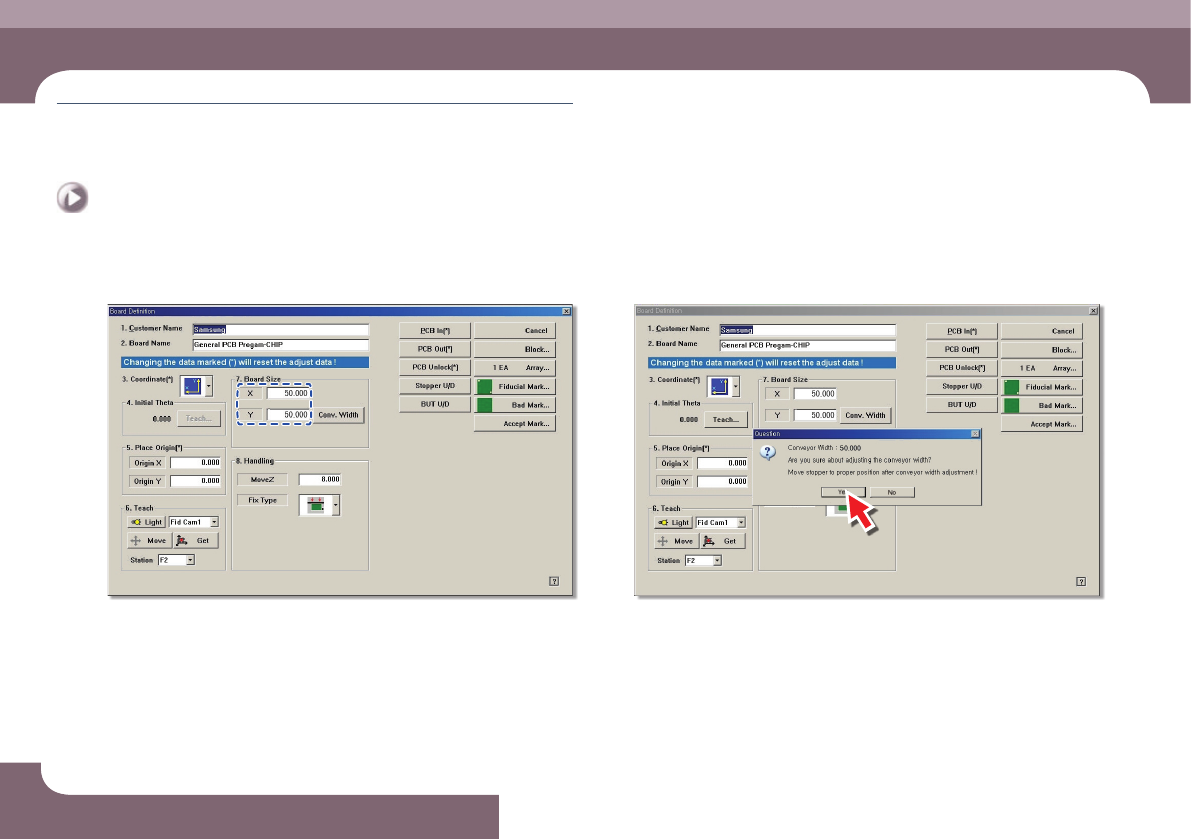

Step 3.
Enter Y size of PCB in the <7.Board Size> group
Step 4.
Click the <Conv. Width> button
