Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-1
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Checking Feeder > Checking Reel hanger (Pneumatically Driven)
Checking Feeder
Chapter 6
Check others and replace exhausted parts
This Chapter describes the items for which care must be exercised while using thetape feeder as well as the method to take measures when parts
are exhausted.
1. Checking Reel hanger (Pneumatically Driven)
Check Points
ㆍ After mounting the feeder, make sure the reel hanger is in contact
with the inside of the feeder.
ㆍ Make sure the reel hanger rib sits on the reel properly.
Caution
When the reel setting is defective, the pickup position may be
offset due to increased load. Reel hanger rib guides the reel to feed
properly. If the rib is out of the reel, feeding error may occur.
Checking Feeder
Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-2
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Checking Feeder > Checking Reel hanger (Electrically Driven)
Checking Feeder
Check others and replace exhausted parts
2. Checking Reel hanger (Electrically Driven)
Check Points
ㆍ After mounting the feeder, make sure the reel hanger is in contact
with the inside of the feeder.
ㆍ Make sure the reel hanger rib sits on the reel properly.
Caution
When the reel setting is defective, the pickup position may be
offset due to increased load. Reel hanger rib guides the reel to feed
properly. If the rib is out of the reel, feeding error may occur.
Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-3
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Checking Feeder > Checking part reel (Pneumatically Driven)
Checking Feeder

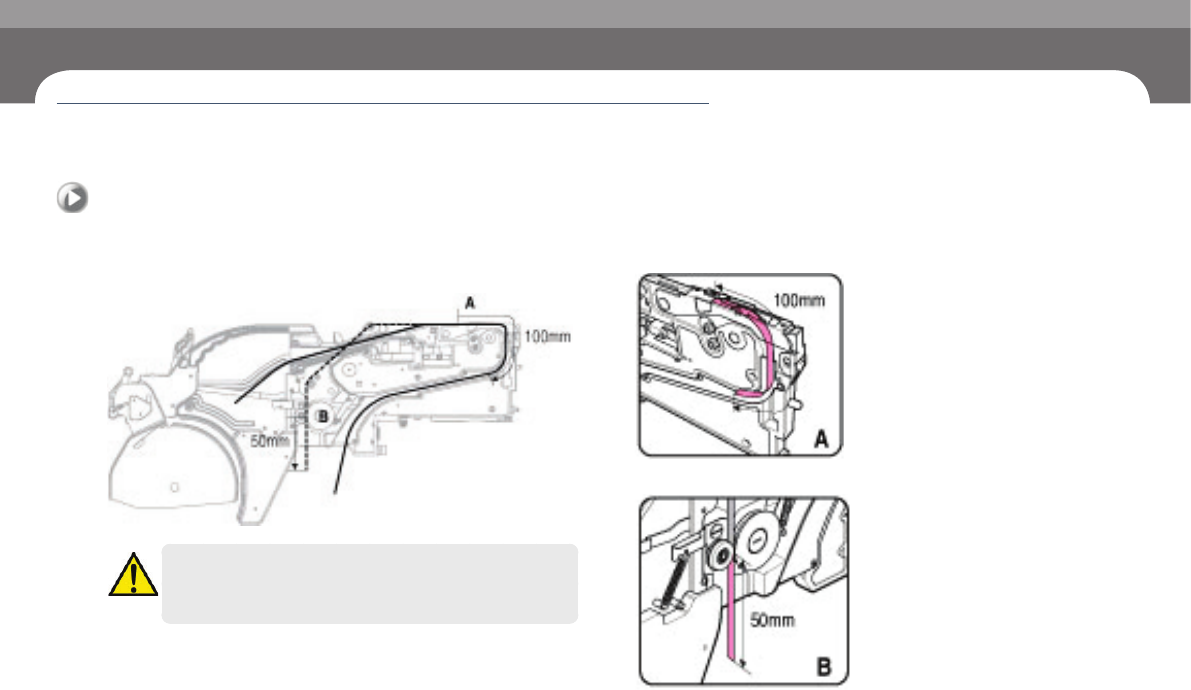

3. Checking part reel (Pneumatically Driven)
Pass the tape through groove A, B as shown in the figure below.
Caution
If the part reel is not mounted as in the figure, index error may
occur.
ㆍ The tape should extend more than 100 mm from the part adhesion point.
ㆍ The vinyl should extend more than 50 mm from the center of the drain gear.
