Ch e ck o th e r s and r e plac e e xhaus t e d part s Chap ter 6 Nex t Generation, Multi- Funct ional Placer DE CAN S 1 Ope ra tio n Han db oo k 6-1 5 This Chapter describes the items for which care must be exercised wh…
Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-14
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Change the part reel
Replace exhausted parts
Check others and replace exhausted parts

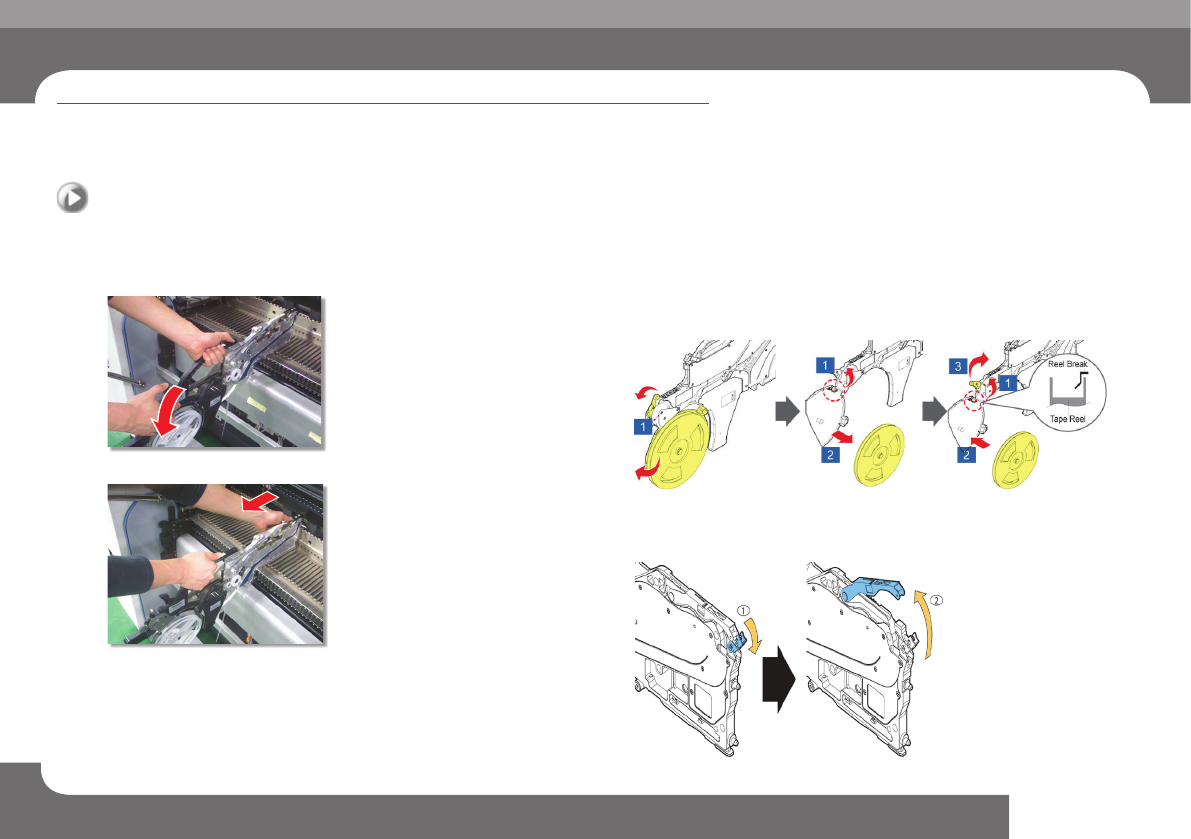

1. Change the part reel
Step 1.
Pull the grip back.
Step 2.
Remove the feeder.
Step 3.
After removing the part reel, install a new reel. (Secure the
reel on the reel brake paying careful attention to the reel
winding direction.)
Step 4.
Open the tape guide referring to the following figure. (Handle
it in the order of the numbers.)
Replace exhausted parts
Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-15
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Change the part reel
Replace exhausted parts

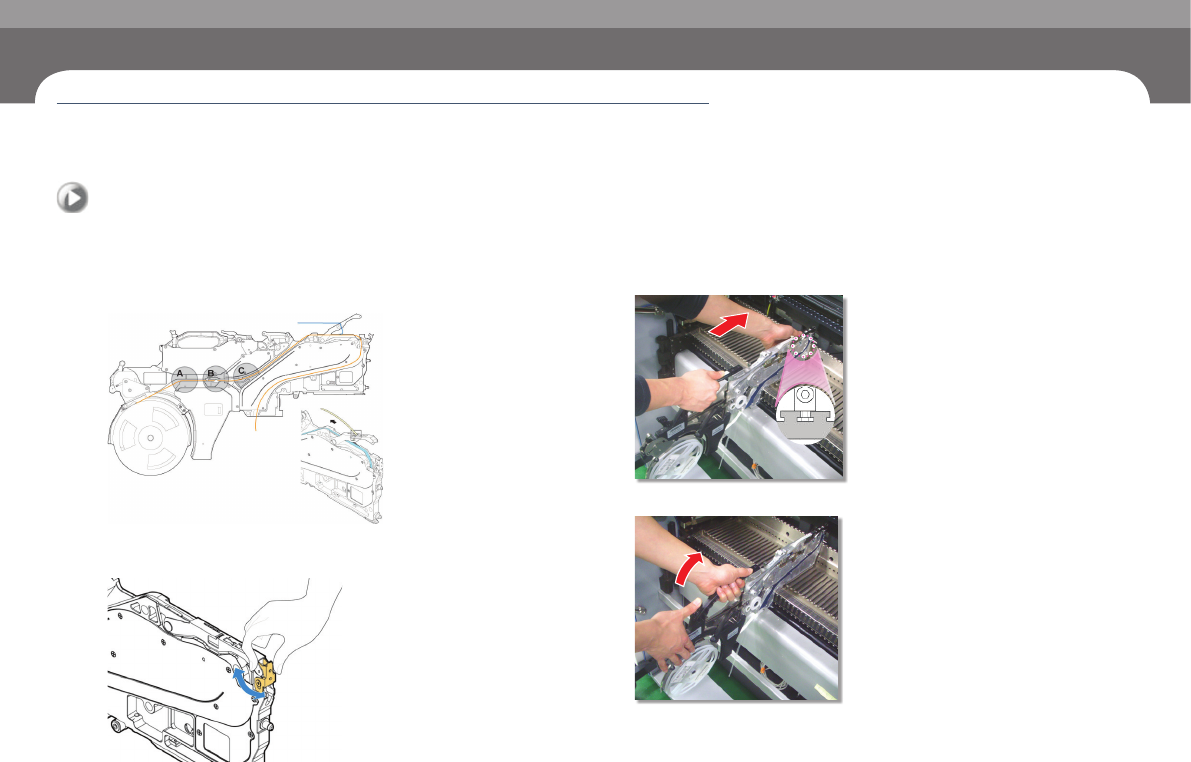

Step 5.
Install and discharge the tape referring to the figure. (Install
the tape so that it passes through 'A' and 'B'.)
Step 6.
Secure the locker after closing the tape guide. (Secure the
locker referring to the following figure.)
Step 7.
Secure the feeder in the orresponding slot.
Step 8.
Secure the grip.
Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-16
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Change the part reel
Replace exhausted parts
Check others and replace exhausted parts

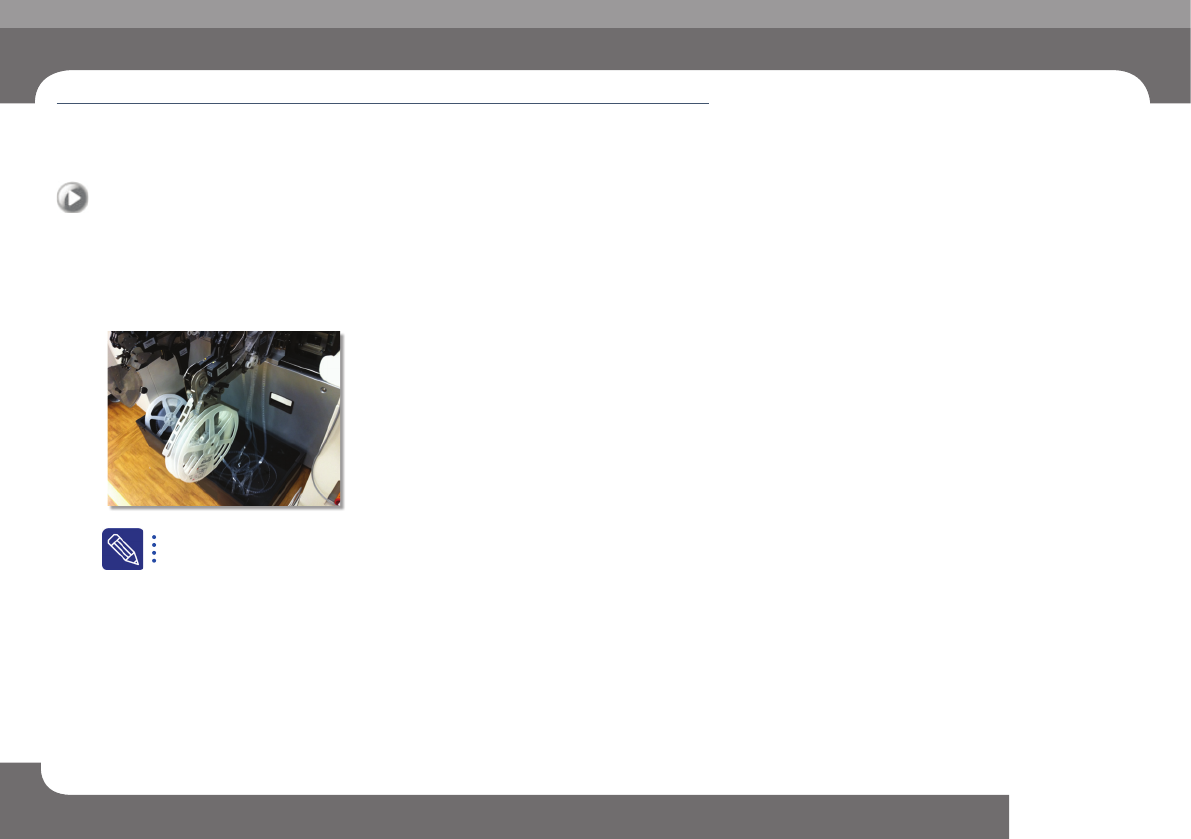

Step 9.
Put the used tape and vinyl in the empty box. Cut the used
tape and vinyl at appropriate intervals with scissors to avoid
the occurrence of defective feeding.
For further details regarding part reel replacement, refer to the tape
feeder's user manual.
