Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-19
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Tape Connection Method (Emboss Type)
Replace exhausted parts
3. Tape Connection Method (Emboss Type)

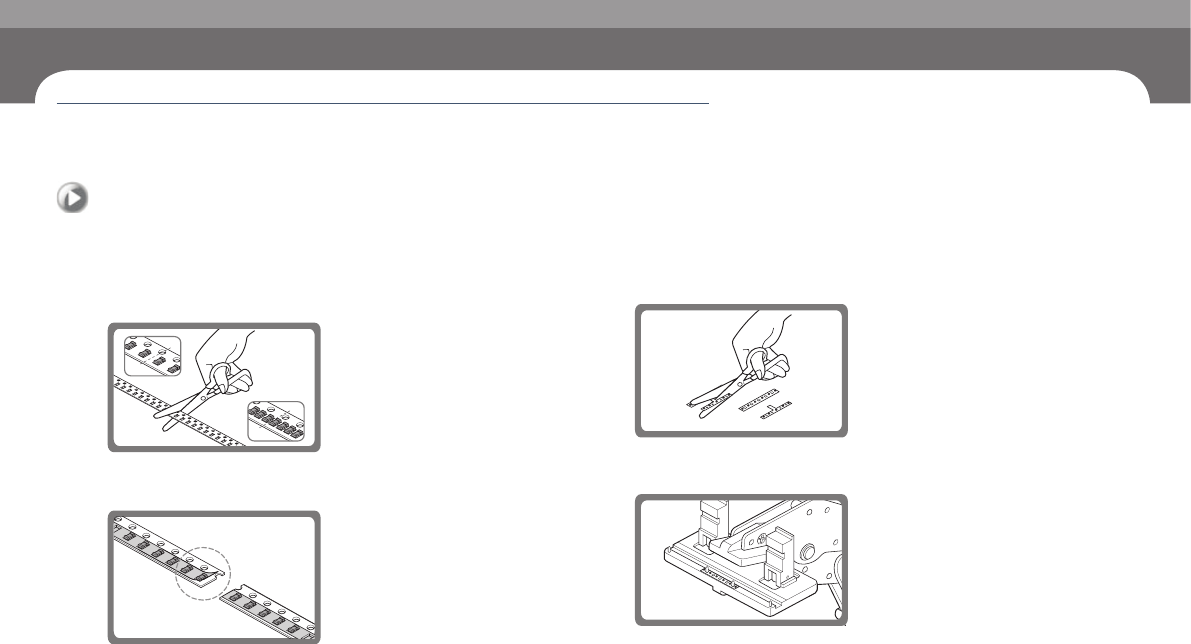

Step 1.
Cut the end part of the tape in use and the beginning part of
the new tape by using scissors.
4mm
2mm
Step 2.
Peel off the vinyl tape on the leading end of the new tape.
Step 3.
Cut the H-shape tip to make it into I-shape.
Step 4.
Place the I-shape tip in the tool so that the burr is on the top.
Check others and replace exhausted parts
Chapter 6
Next Generation, Multi-Functional Placer
DECAN S1 Operation Handbook
6-20
This Chapter describes the items for which care must be exercised while
using thetape feeder as well as the method to take measures when
parts are exhausted.
Replace exhausted parts > Tape Connection Method (Emboss Type)
Replace exhausted parts
Check others and replace exhausted parts

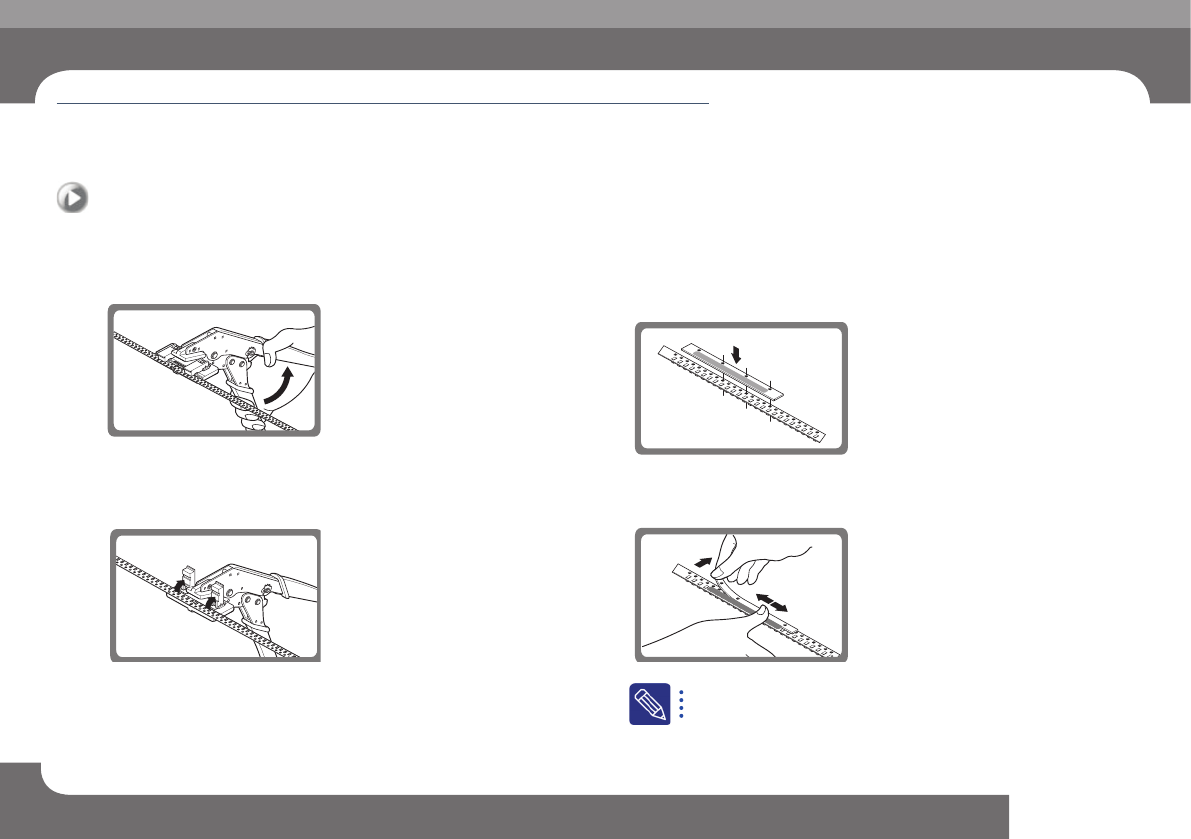

Step 5.
Connect the tapes by manipulating the handle of the tool.
Step 6.
Move the pressing device upward. Push the handle of the tool
and release it, and then remove the connected tape from the
tool.
Step 7.
Align the vinyl connecting tape to the hole of the connected
tape and place it on the cut area.
Step 8.
Peel off the other side of the adhesive surface under the tape
and rub it so that it sticks well.
For more details, refer to the manual of the splicing tool set.
