2-46 2 Creating inspection pr ograms 2.7.4 Deploying libraries T he library deployment function is used to paste library data to parts on the board with the same name at one time. 1 Pr ess the [Data Edit] button and open…
2-45
2
Creating inspection programs
2. 1. By pressing the [Yes] button, the following dialog box appears. Press the [Yes] button. Add the
entered "Parts Name" and "LibParts" set to the library table.

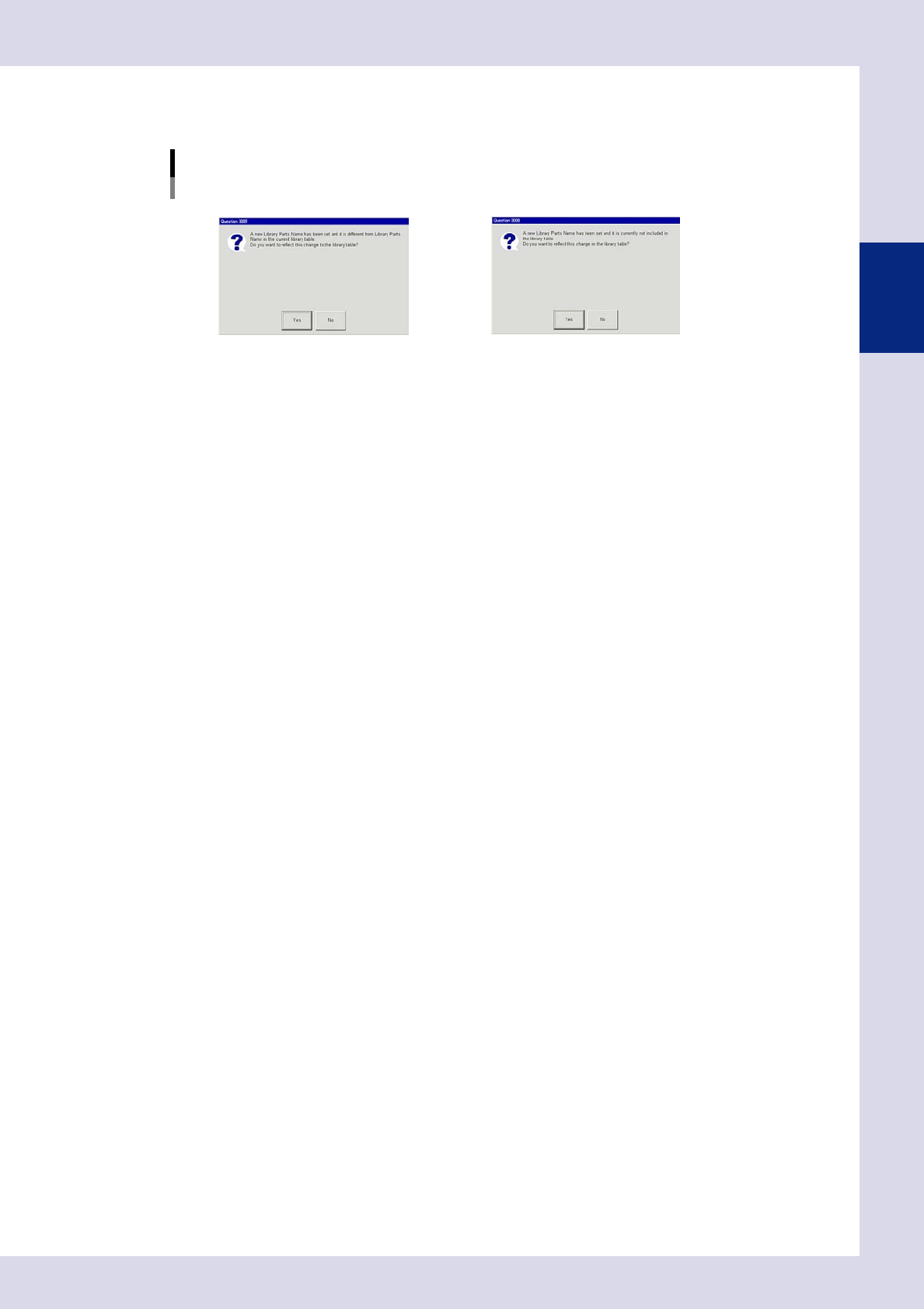

Library table registration
If registered in the library table If not registered in the library table
24253-P6-00
2-46
2
Creating inspection programs
2.7.4 Deploying libraries
The library deployment function is used to paste library data to parts on the board with the same name at one
time.
1
Press the [Data Edit] button and open the "Step" tab.
2
Press the [Redeploy] button at the "Tuning" tab.
A "Deploy Library Data" screen appears.
"Deploy Library Data" screen
Step 3
Step 4
Step 5
Step 7
Step 6
24250-P6-00
3
Select the "Deployment Mode".
Select the library deployment method from the the drop-down list.
Deploy by Lib Parts Name
By specifying the library to be deployed in parts units, the relevant library is deployed.
Deploy all
Libraries from registered libraries for all parts with matching "LibParts" are deployed.
Deploy all in Selected Library
Libraries from libraries with specified "Library" for all parts with matching "LibParts" are deployed.
4
Specify the step to be deployed. (only for "Deploy by Lib Parts Name")
Specify the step if "Deploy by Lib Parts Name" is selected for the deployment mode in Step 3. Verify the
deployed "Library" and "LibParts". The "Library" and "LibParts" selected when the [Redeploy] button was
pressed are displayed. To change them, select from the respective drop-down lists.
Deploy by Library Name Key
Deploys to steps with same name "Library" and "LibParts".
Deploy by Parts Name Key
Deploys to steps with same parts name.
Deploy by Ref No Key
Deploys to steps with same Ref. No.
5
Specify the library to be deployed.
If "Deploy by Lib Parts Name" is selected for the deployment mode at Step 3, the parts name for the
library to be deployed can be changed. Select the "Library" and "LibParts" from the respective drop-
down lists.
If "Deploy all in Selected Library" is selected for the deployment mode at Step 3, the name of the library
to be deployed can be changed. Select the "Library" from the drop-down list.
2-47
2
Creating inspection programs
6
Set the deployment conditions.
Select the deployment conditions as required.
No changes to OCR
By selecting this check box, the inspection character string for character recognition when deploying
the library is not changed.
Set LibParts from library table file
By selecting this check box, the library selected in the library table is deployed.
7
Press the [Execute] button to deploy.
Information registered by "LibParts"is deployed for all relevant parts. The deployment status and
deployment result appear at the bottom of the screen.
8
Press the [Close] button to end deployment.
The display returns to the "Step" screen.
