3-32
3
Step screen
3.4 Foreign object check deployment
This function deploys foreign object steps to all views.
Foreign object inspection steps for which "Foreign Object” is set for the inspection status are deployed to all
views.
1
Select a step.
Select the deployment source foreign object step at the "Step" screen. Steps are deployed with the
same parameters as the selected step. Select an arbitrary step if no foreign object check steps exist to
deploy steps with default parameters.
2
Press the [Edit Assist] button and open the "Foreign Object" tab.
A screen used to set foreign object check deployment conditions appears.
"Foreign Object" tab screen
Step 4
[Execute] button
[Close] button
"Foreign Object" tab
24337-P6-00
3
Set the deployment conditions.
Split X, Y
Enter the number of splits for foreign object check steps created in each view.
Range
Sets the range for creating foreign object check steps. Set the applicable range to "All View" or
"Selected View".
Light (YSi-X)
This setting is only valid for X-ray inspection machines, and the foreign object check step lighting can be
selected from "Optical" or "X-ray".
Optical: Select to perform the foreign object check with optical lighting.
X-ray: Select to perform the foreign object check with X-rays (X-ray image).
4
Press the [Execute] button.
Press the [Yes] button at the confirmation dialog box that appears after checking the content.
Foreign object check steps are created for the applicable view.
5
Press the [Close] button to end deployment.
3-33
3
Step screen
3.5 Pin position editing
This function is used when aligning multiple steps on the same line and with same pitch.
1
Select a step.
Select multiple steps to be aligned by dragging the mouse.
2
Press the [Edit Assist] button and open the "Pin Pos.Edit" tab.
A screen used to set alignment conditions appears.
Editing assistance
Pin position editing
Step 4
[Execute] button
[Close] button
"Pin Pos.Edit" tab
24338-P6-00
3
Enter the pitch.
If aligning in the X direction (horizontal)
Enter the pitch in the X pitch field. By entering a positive value, steps are aligned to the right from the
first step. By entering a negative value, steps are aligned to the left from the last step.
If aligning in the Y direction (vertical)
Enter the pitch in the Y pitch field. By entering a positive value, steps are aligned in the upward direction
from the last step. By entering a negative value, steps are aligned in the downward direction from the
first step.
4
Press the [Execute] button.
Press the [Yes] button at the confirmation dialog box that appears after checking the content.
The step selected at Step 1 is aligned based on the pitch and direction selected at Step 4.
5
Press the [Close] button to end deployment.
3-34
3
Step screen
4. Batch replacement and search
4.1 Batch replacement
This function is used to set conditions for steps being replaced, and batch replace item values for applicable
steps with specified values.
c
specifying conditions and replacement settings.
1
Press the [Replace] button in the "Utility" tab.
A "Replace" screen appears.

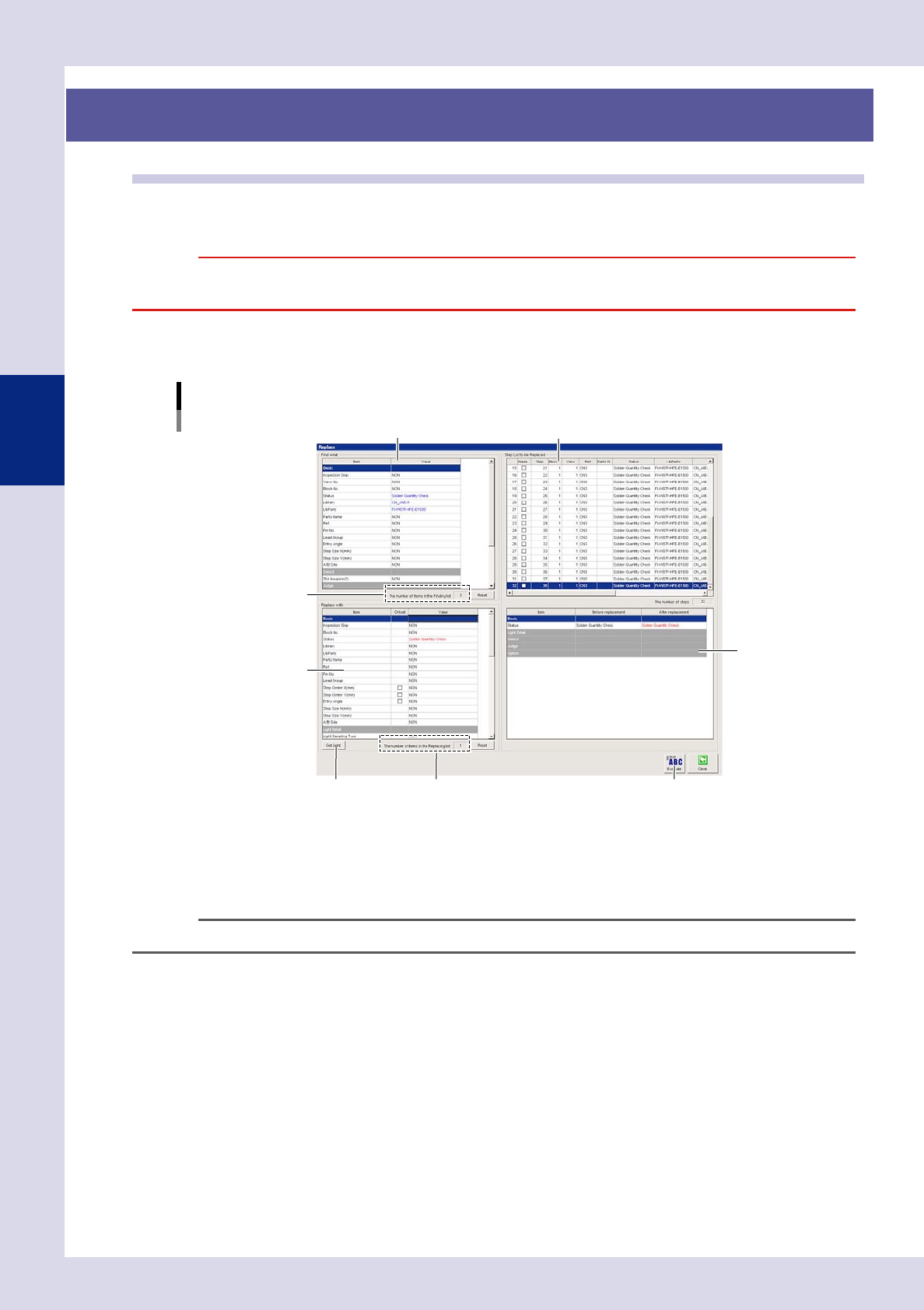

"Replace" screen
Search items
Replacement items
Number of search items
[Get Light] button Number of replacement items
List of steps subject to replacement
[Execute] button
Replacement details list
24339-P6-00
2
Specify "Find what".
Enter conditions for view ranges and inspection statuses, etc. to be changed in the "Find what" screen in
the upper left. Select "NON" in the value fields for items that are not to be changed. Ensure that the
number displayed in "The number of items in the Finding list" matches the number of items to be found.
TIP
The content of "Find what" will differ depending on the inspection status.
3
Check the "Step List to be Replaced".
Steps to be replaced are displayed in the "Step List to be Replaced" in the upper right of the screen.
Ensure that the number displayed in "The number of steps" matches the number of items to be replaced.
